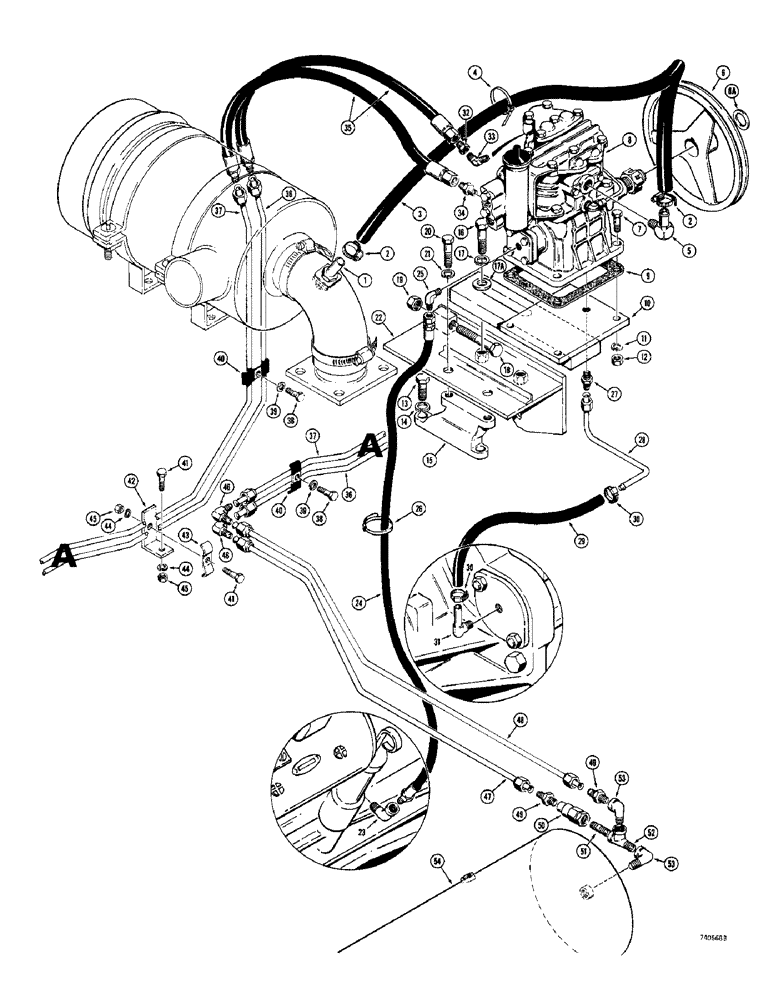

Запчасти Case 780 (236) - BRAKE SYSTEM, MODEL 300 AIR COMPRESSOR AND RESERVOIR (07) - BRAKES

1

D53472

FITTING

CONNECTOR - intake hose to air cleaner, Replaces 217-155

1шт.

2

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

3

D84666

HOSE,0.75" ID x 14.00"

Intake, Models with Turbo-Charger, If Used 0.75" ID x 14.00"

1шт.

3

D53473

HOSE - intake, models without turbo-charger, 3/4" (19 mm) x 24" (610 mm) if used

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wire, if used

1шт.

5

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

FITTING - hose, 90 degrees, at compressor

1шт.

6

L40843

PULLEY

- air compressor

1шт.

6a

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

-, Serial Range: nut-pulley

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

If Ref. 10 has two holes and two bolts (would be D91559 mounting bracket), use two pieces of 413-896 bolt.

1шт.

8

L14814

COMPRESSOR

- air, parts list Figure 246

1шт.

9

L10354

GASKET

-, Serial Range: compressor-plate

1шт.

If Ref. 10 has two holes and two bolts (would be D91559 mounting bracket), use D92452 gasket (subs to B17575 3 oz. tube of black RTV silicone).

1шт.

10

L40846

BRACKET - adjustment and mounting

1шт.

If this bracket has two holes and two bolts, use D91559 mounting bracket.

1шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

A61155

BRACKET

- support, compressor bracket to engine block

1шт.

16

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2" - 13 NC x 1-3/4", grade 8

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

17a

R24323

WASHER

- special, hardened, 1/2"

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2" - 13 NC x 3", bracket adjustment

1шт.

19

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

20

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

21

92-7

LOCK WASHER,7/16"

2шт.

22

L40847

BRACKET - mounting, compressor to engine block

1шт.

23

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

24

L21747

HOSE - oil supply to compressor, 28" (711 mm) long

1шт.

25

218-482

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male, 90 degrees, at compressor

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wire

1шт.

27

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - straight, male connector

1шт.

28

L22083

TUBE - return, compressor lubrication

1шт.

29

L22075

A/C HOSE,0.50" ID x 14.70", SAE 30R Type I

HOSE - Return 0.50" ID x 14.70", SAE 30R Type I

1шт.

30

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

31

A27489

ELBOW UNION

FITTING - 90 degrees, male, return hose to timing gear cover

1шт.

32

221-53

BUSHING

FITTING - reducer, 3/8" x 1/4" NPT

1шт.

33

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male (3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

34

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Male, straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

35

L42866

HOSE -, Serial Range: compressor-tubes

2шт.

36

L43898

TUBE - compressor to reservoir, front

1шт.

37

L43925

TUBE - governor to reservoir, front 0.375" OD

1шт.

38

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

D33316

CLAMP

-, Serial Range: tube-shroud

2шт.

41

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4", if used

1шт.

42

L43690

BRACKET - clamp mounting, used on models with twin backhoe control towers

1шт.

43

A12032

CLAMP

-, Serial Range: tube-chassis

1шт.

44

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC if used

1шт.

46

218-472

FITTING - male, 90 degrees

2шт.

47

L43894

TUBE - compressor to reservoir, rear 0.375" OD x 26.5, 4.5" L

1шт.

48

L43896

TUBE - governor to reservoir, rear 0.375" OD x 24, 4.5" L

1шт.

49

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight, male connector

2шт.

50

L12633

CHECK VALVE

VALVE - check

1шт.

51

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close, 1/4" NPT x 1"

1шт.

52

221-1691

TEE,Street, 1/4" NPT

FITTING - three way, Street, 1/4" NPT

1шт.

53

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - street, 90 degrees, 1/4" NPT

2шт.

54

L19210

RESERVOIR - air

1шт.
