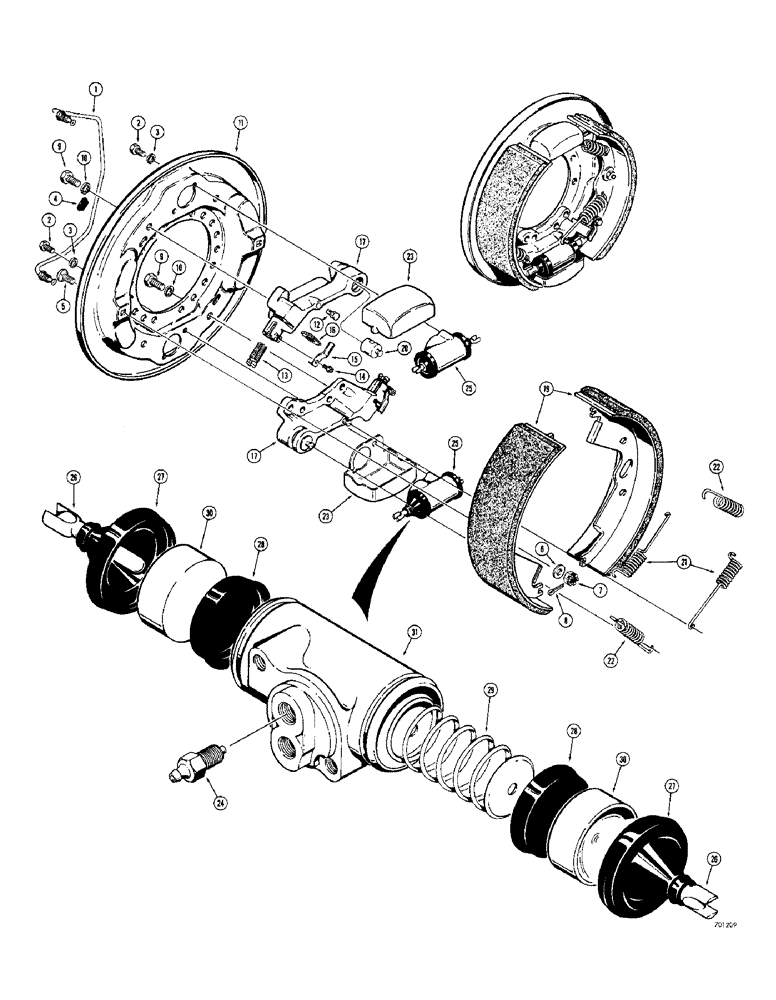

Запчасти Case 780 (234) - REAR AXLES, WHEEL CYLINDERS, BRAKE SHOES AND LINING KITS (06) - POWER TRAIN

L33036

BRAKE LINE

BRAKE ASSEMBLY - front and rear axle, L.H., Includes: Ref. 1 - 31

2шт.

The L33036 brake assembly has been replaced by a brake assembly manufactured by a different supplier. For service order N9522 LH and N9523 RH brake assembly. Note that the N9522 and N9523 are spider design brake assemblies and do not use a backing plate like the old replaced parts.

1шт.

The components of N9522 and N9523 brake assemblies are different than those in the old brake assemblies. Before ordering any component parts, see the root comments under N9522 and N9523 to see what has changed, i.e. brake cylinders, spiders, shoes and linings, return springs, etc.

1шт.

L33037

BRAKE ASSEMBLY - front and rear axle, R.H., see footnote for L33036, Includes: Ref. 1 - 31

2шт.

1

L33105

TUBE,14.187, 4.843" L

- connector

1шт.

2

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

L33110

COVER

- inspection

2шт.

L33104

BOLT (SPREADER)

BOLT KIT - shoe guide, Includes: Ref. 5 - 8

1шт.

5

L33094

BOLT

- special

2шт.

6

L33093

WASHER

- special

2шт.

7

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT - castle, 3/8" - 24 NF

2шт.

8

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

L33091

PLATE

ASSEMBLY - backing, L.H. brake, Includes: Ref. 9 - 18

1шт.

L33092

PLATE

ASSEMBLY - backing, R.H. brake, Includes: Ref. 9 - 18

1шт.

9

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex, 1/2" - 20 NF x 3/4"

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

12

L33095

AXLE PIN

PIN - spring return

2шт.

13

L33098

ADJUSTMENT SCREW

- adjusting, L.H. brake

2шт.

13

L33099

ADJUSTMENT SCREW,3/4" - 12 x 1.86"

- adjusting, R.H. brake

2шт.

14

193-543

SCREW,Hex Was Hd, #8-32 x 3/8"

- spring mounting

2шт.

15

L33100

VALVE SPRING

SPRING - adjusting wheel

2шт.

16

L33096

GEAR,18T

- adjusting

2шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - support

2шт.

18

RESERVED

1шт.

19

L33102

SHOE

KIT - shoe and lining, brake

2шт.

The L33102 brake shoe and lining kit has been replaced by a shoe and lining having different braking characteristics. When you replace the old shoe and lining, you must redo the entire axle by ordering four pieces of N9261 shoe and lining assembly.

1шт.

20

L33103

PIN

- anchor, spring

2шт.

21

L33106

SPRING

- brake return, forward

2шт.

22

L33107

SPRING

- brake return, reverse

2шт.

23

L33108

GUARD

SHIELD - spark, L.H. brake

2шт.

23

L33109

GUARD

SHIELD - spark, R.H. brake

2шт.

24

A58464

BLEEDER,7/16" - 24 x 1 15/32"

BLEED SCREW - bottom wheel cylinder

1шт.

25

L33114

CYLINDER

ASSEMBLY - wheel, brake, 1.75" bore, uses L33117 repair kit, Includes: Ref. 26 - 31

2шт.

If the part on dealer's machine has 1.875" bore, it is probably cylinder assembly N9986. See comments on N9986 for listing of components.

1шт.

26

L33116

ROD

- push, cylinder

2шт.

L33117

KIT

- repair, wheel cylinder, Includes: Ref. 27 - 29

1шт.

27

L33118

BOOT

- wheel cylinder, brake

2шт.

28

L35634

CUP

- wheel cylinder

2шт.

29

L33119

VALVE SPRING

SPRING - piston return

1шт.

30

L33115

PISTON

- wheel cylinder

2шт.

31

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.
