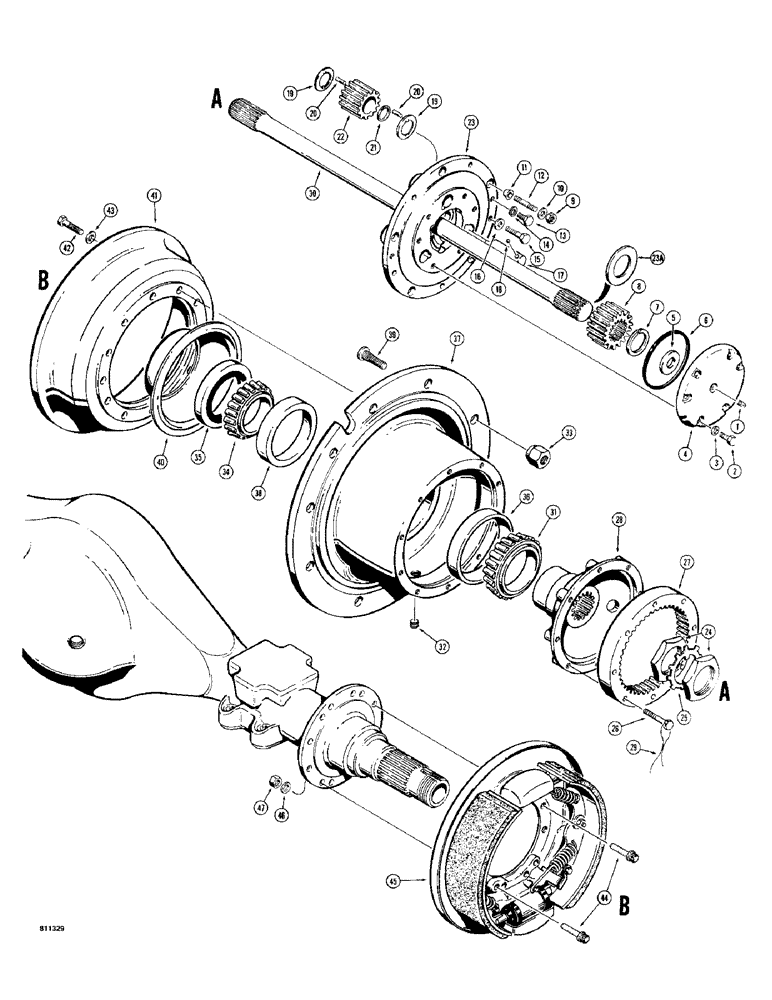

Запчасти Case 780 (230) - D86494 REAR AXLE AND PLANETARY, TRACTOR 5500354 AND AFTER EXCEPT SN 5500426->5500439 (06) - POWER TRAIN

D86494

AXLE

ASSEMBLY - complete, rear, Clark no. 187981 or 191516, Includes: Ref. 1 - 43

1шт.

Ref D86494 axle assy - Replace SN reference to

1шт.

Clark no. 187981 w/ Clark no. 187975

1шт.

w/ 14 bolt differential

1шт.

1

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - oil level, square socket head, 1/4" NPT

2шт.

2

113-331

NUT,Hex, 7/16"-14 x 1 1/4", G5, Full Thd

BOLT - hex, 7/16" - 14 NC x 1-1/4"

12шт.

3

L33003

WASHER

- special

12шт.

L33000

COVER

ASSEMBLY - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

L33001

WASHER

- thrust, sun gear

1шт.

6

L33004

SEALING RING

RING - planetary cover

2шт.

7

D55435

RING, SNAP

RING - retaining, sun gear

2шт.

8

D55434

SUN GEAR

GEAR - sun

2шт.

9

129-545

NUT,1/2"-20, G8

10шт.

10

L33002

WASHER

- special, 1/2"

10шт.

11

L33016

DOWEL

- planetary carrier

10шт.

12

L33017

STUD

- special, planetary carrier

10шт.

13

113-477

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

L33018

BOLT

- special, Serial Range: spider-drum

10шт.

16

L33002

WASHER

- special, 1/2"

10шт.

N7067

SET

SPIDER ASSEMBLY - planetary, Includes: Ref. 17 - 23A

2шт.

17

L33012

SHAFT

- pinion

3шт.

18

211-11

BALL,3/8" Dia

- shaft retaining ( replaced 221-11 )

3шт.

19

L33011

WASHER

- thrust

6шт.

20

L33014

ROLLER

- pinion

174шт.

21

L33015

WASHER

SPACER - pinion roller

3шт.

22

L33013

GEAR

PINION - planetary

3шт.

23

N7073

U-JOINT SPIDER

SPIDER - planetary, includes thrust washer and instruction sheet

1шт.

23a

N6282

WASHER

THRUST WASHER - sun gear, .210 - .215 mm thick

1шт.

23a

N7068

WASHER

THRUST WASHER - sun gear, .805 - .810 mm thick

1шт.

23a

N7069

WASHER

THRUST WASHER - sun gear, .730 - .735 mm thick

1шт.

23a

N7070

WASHER

THRUST WASHER - sun gear, .750 - .755 mm thick

1шт.

24

D55445

NUT

- spindle

4шт.

25

D55446

LOCK ASSY

LOCK - spindle nut

2шт.

D83210

HUB

RING GEAR AND HUB ASSEMBLY - internal, Includes: Ref. 26 - 29

2шт.

26

L33022

SCREW,1/2" - 13 x 2 3/4"

- special, internal gear

8шт.

27

L33020

GEAR WHEEL

GEAR - ring, internal

1шт.

28

D55837

HUB - gear

1шт.

29

391-611

WIRE - lock, 18 gauge x 10" (254 mm) long

4шт.

30

D63362

SHAFT

- axle

2шт.

31

D55438

CONE

- hub, outer

2шт.

32

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - planetary drain

2шт.

33

A12522

WHEEL NUT

- wheel

20шт.

34

D55437

CONE

- bearing, inner hub

2шт.

35

D55436

OIL SEAL

- oil, hub

2шт.

D55257

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 36 - 43

2шт.

D55839

HUB ASSEMBLY - wheel, Includes: Ref. 36 - 38

1шт.

36

F65706

BEARING CUP

CUP - bearing, outer

1шт.

37

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

38

A15434

CUP

- bearing, inner

1шт.

39

D55840

SERRATED BOLT

STUD - wheel

10шт.

40

D55843

SLINGER - oil

1шт.

41

D55841

DRUM - brake

1шт.

42

D55842

BOLT - special, Serial Range: drum-hub

12шт.

43

L33031

WASHER

- special

12шт.

44

114-504

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8, Full Thd

- hex, 9/16" - 18 NF x 1-1/2"

8шт.

44

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

BOLT - ferry cap head, 9/16" - 18 NF x 2"

16шт.

45

L33036

BRAKE LINE

BRAKE ASSEMBLY - wheel, left-hand, parts list Figure 234

1шт.

45

L33037

BRAKE ASSEMBLY - wheel, right-hand, parts list Figure 234

1шт.

46

A43248

WASHER

- special

24шт.

47

129-558

NUT,9/16"-12, G8

- hex, 9/16" - 18 NF

24шт.
