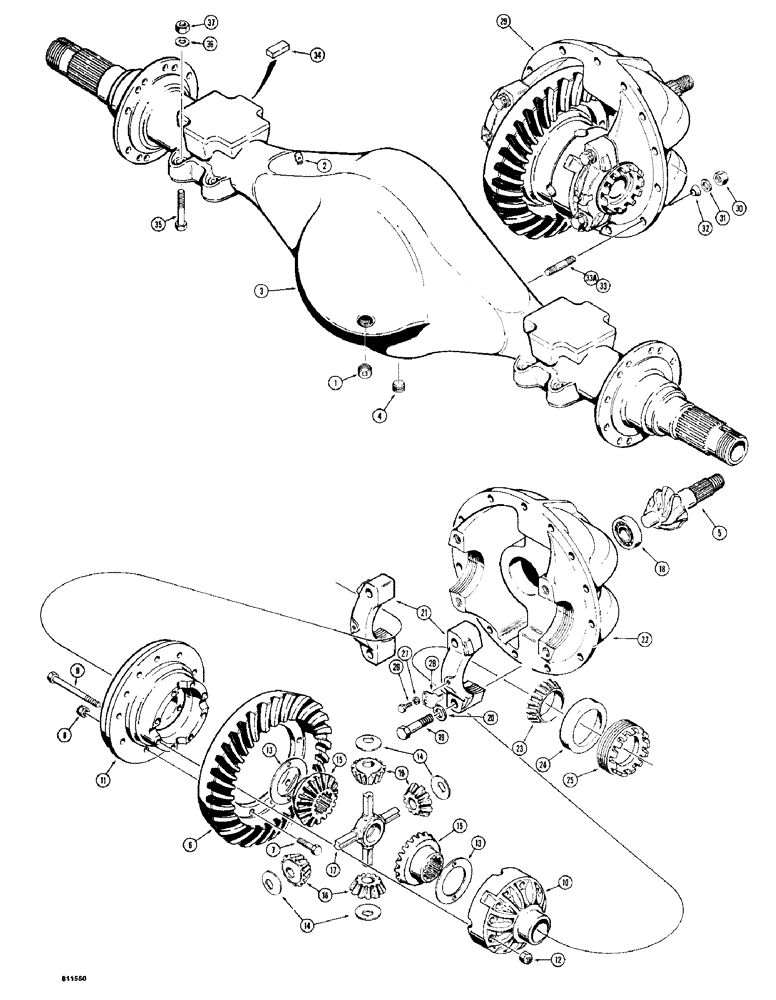

Запчасти Case 780 (224) - D86494 REAR AXLE, TRAC SN 5500354 & AFT EXCEPT SN 5500426 THRU 5500439 (06) - POWER TRAIN

D86494

AXLE

ASSEMBLY - complete, rear, Clark no. 187981 or 191516, Includes: Ref. 1 - 33A

1шт.

Ref D86494 axle assy - Replace SN reference to

1шт.

Clark no. 187981 w/ Clark no. 187975

1шт.

w/ 14 bolt differential

1шт.

1

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - filler, housing

1шт.

2

L33264

BREATHER

BEARING - axle housing

1шт.

3

N6454

HOUSING

- axle

1шт.

4

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, housing

1шт.

NSS

NOT SOLD SEPARAT

DIFFERENTIAL AND CARRIER ASSEMBLY - axle, order D64841 on Figure 228, Includes: Ref. 5 - 29

1шт.

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY - axle, order D65111 on Figure 228, Includes: Ref. 5 - 22

1шт.

D56355

GEAR-SET

GEAR SET - pinion and ring gear, matched set, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

D56356

BOLT - special, ring, Serial Range: gear-case

12шт.

8

131-721

NUT - special, ring, Serial Range: gear-case

12шт.

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - differential, order D65114 on Figure 228, Includes: Ref. 9 - 14

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential, Includes: Ref. 9 - 12

1шт.

9

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex head, 1/2" - 20 NF x 4-3/4" special, also used (8 req'd).

8шт.

In some assemblies L33002 washer was

1шт.

10

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

11

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

12

131-721

NUT - special, case mounting, if used, hex, self-locking, 1/2" - 20 NF

8шт.

13

D56362

WASHER

- thrust, side gear

2шт.

14

D56361

WASHER

- thrust, pinion

4шт.

N7064

KIT

GEAR - side, pinion, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - side, differential

2шт.

16

NSS

NOT SOLD SEPARAT

PINION - differential, set of hour gears

1шт.

17

D56360

DIFF. SPIDER

SPIDER - differential

1шт.

18

A12947

ROLLER BEARING

BEARING - pinion, inner

1шт.

D55449

CARRIER AND CAP ASSEMBLY - differential

1шт.

19

D55850

BOLT - special

4шт.

20

194-112

WASHER - lock, 3/4"

4шт.

21

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

22

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

23

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearing, differential

2шт.

24

O8162HT

CUP

- bearing, differential

2шт.

25

D55451

NUT - adjusting, special

2шт.

26

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

D80396

LOCK

- adjusting nut

2шт.

29

REF

INSTRUCTION

CAGE AND COMPANION FLANGE - differential parts list Figure 222

1шт.

30

129-530

NUT,7/16"-20, G8

- hex, 1/2" - 20 NF

14шт.

31

L33003

WASHER

- special

14шт.

32

F9809

COLLAR

- carrier

3шт.

33

D55439

STUD - housing, 2-3/8" (61 mm) long

13шт.

33a

D55447

STUD - housing, 2-5/8" (67 mm) long

1шт.

34

L26838

BLOCK - shear, axle mounting

4шт.

35

26-16160

BOLT,Hex, 1" - 8 x 10", Gr 8

- hex, 1" - 8 NC x 10", grade 8

8шт.

use part nbr 116-701.

1шт.

26-16160 bolt - If bolt is 3/4" x 8 1/2"

1шт.

36

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

8шт.

37

131-199

LOCK NUT,1"-8, GC

NUT - hex, self lock 1" - 8 NC

8шт.
