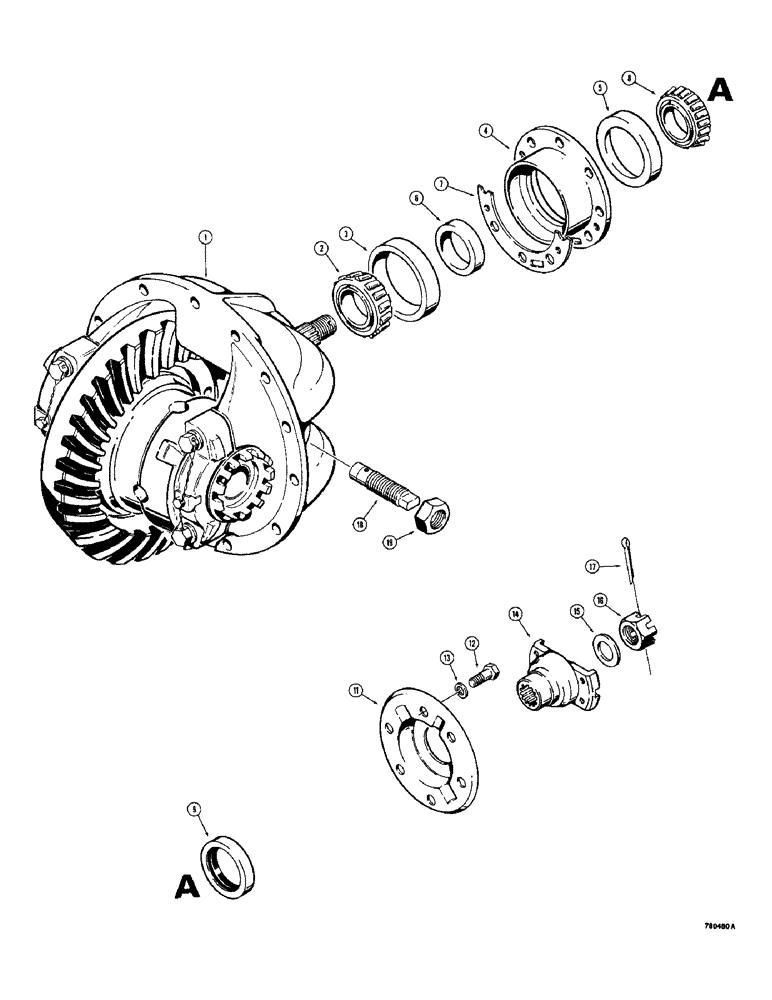

Запчасти Case 780 (222) - D86494 REAR AXLE, TRAC SN 5500354 & AFT, EXCEPT SN 5500426 TRU 5500439 (06) - POWER TRAIN

D86494

AXLE

ASSEMBLY - complete, rear, Clark no. 187981, or 191516, Includes: Ref. 1 - 9

1шт.

Ref D86494 axle assy - This is a fabricated

1шт.

Housing. It replaced part nbr D54479 axle assy with forged housing. Also

1шт.

replace SN reference to Clark no. 187981 w/ Clark no. 187975 (w/ 14 bolt differential)

1шт.

D64841

CARRIER

DIFFERENTIAL AND CARRIER ASSEMBLY - axle, Includes: Ref. 1 - 9

1шт.

1

REF

INSTRUCTION

CASE AND INTERNAL GEARING - differential, parts list Figure 224

1шт.

2

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, pinion, center

1шт.

3

A12949

BEARING CUP

CUP - bearing, pinion, center

1шт.

D55450

CAGE

AND CUP ASSEMBLY - pinion, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing, pinion

1шт.

5

A18356

BEARING

CUP - bearing, pinion, outer

1шт.

6

D55830

SPACER - bearing, pinion

1шт.

7

D55827

SHIM,.004" Thk

Bearing cage, pinion (.102 mm) .004" Thk

1шт.

7

D61959

SHIM,.007" Thk

Bearing cage, pinion (.178 mm) .007" Thk

1шт.

7

D61960

BLOCK

SHIM - bearing cage, pinion, .010" (.254 mm) thick

1шт.

8

D55838

CONE

- bearing, outer

1шт.

9

D55833

OIL SEAL

SEAL - oil, pinion

1шт.

10

B17427

LOCTITE

RESERVED ( replaced DASHPART ), Includes: Ref. 11 - 19

1шт.

(50ml bottle loctite 277 gasket eliminator) to form gasket on Ref. 11.

1шт.

Use part nbr B17427 plastic gasket

1шт.

11

D55834

RETAINER

- pinion oil seal

1шт.

12

113-478

BOLT - hex, 1/2" - 13 NC x 1-3/4"

1шт.

12

113-504

CAPSCREW

BOLT - hex, 9/16" - 12 NC x 1-3/4"

5шт.

13

92-8

LOCK WASHER,1/2"

1шт.

13

92-9

BEARING WASHER,9/16"

5шт.

14

D55836

FLANGE - companion

1шт.

15

D55832

WASHER

- pinion shaft

1шт.

16

D55831

NUT - pinion shaft

1шт.

17

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

This nut and cotterpin combination has been replaced by a self locking nut (part nbr 131-487) without the cotter pin. Ref. 15 washer should still be used.

1шт.

Ref. 16 and 17 - pinion shaft nut and cotter pin -

1шт.

18

D55452

SCREW - thrust, special

1шт.

19

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, lock, 7/8" - 14 NF

1шт.
