Запчасти Case 780 (218) - D54477 & D54478 REAR AXLES, B4 TRAC SN 5500354, ALSO 5500426->5500439 AXLE HOUSING & PLANETARY (06) - POWER TRAIN

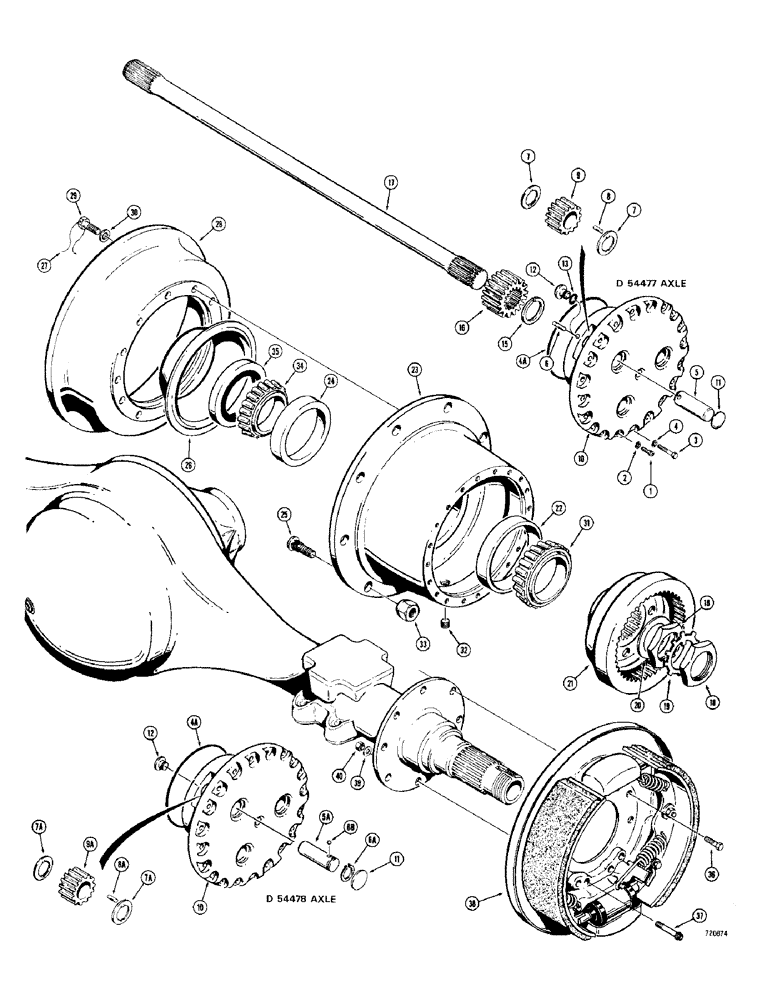

Схема запчастей Case 780 - (218) - D54477 & D54478 REAR AXLES, B4 TRAC SN 5500354, ALSO 5500426->5500439 AXLE HOUSING & PLANETARY (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

D54477

AXLE

ASSEMBLY - complete, rear, before tractor SN. 5500202, Includes: Ref. 1 - 40

1шт.

D54478

AXLE HOUSING

AXLE ASSEMBLY - complete, rear, tractor SN. 5500202 - 5500353; also 5500426 - 5501439, Includes: Ref. 1 - 40

1шт.

1

61-88

HEX SOC SCREW,1/2"-13 x 1/2"

CAPSCREW - hex, sock head, 1/2" - 13 NC x 1/2"

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

113-499

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8, Full Thd

- special, spider to hub

40шт.

4

L33002

WASHER

- special

40шт.

4a

L33271

SLEEVE CYLINDER

O-RING - cover

2шт.

L33293

CARRIER

SPIDER AND COVER ASSEMBLY - planetary, used with D54477 axle only order D54781 spider and cover for service, Includes: Ref. 5 - 13

2шт.

D54781

SPARE PART

SPIDER AND COVER ASSEMBLY - planetary, Includes: Ref. 5 - 13

2шт.

5

L33196

SHAFT

- pinion, used with L33293 spider and cover assembly

3шт.

5a

D54783

SHAFT

- pinion, used with D54781 spider and cover assembly

3шт.

6

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Shaft, used with L33293 spider and cover assembly 1/4" x 1 7/8", Slotted

3шт.

6a

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , shaft, used with D54781 spider and cover assembly 1.06", Int, #106

3шт.

6b

211-11

BALL,3/8" Dia

- shaft retaining, used with D54781 spider and cover assembly

6шт.

7

L33197

WASHER

- thrust, used with L33293 spider and cover assembly

6шт.

7a

D54784

WASHER

- thrust, used with D54781 spider and cover assembly

6шт.

8

L33198

ROLLER

- pinion, used with L33293 spider and cover assembly

102шт.

8a

D54785

ROLLER

- pinion, used with D54781 spider and cover assembly

72шт.

9

L33243

PINION

- planetary, used with L33293 spider and cover assembly

3шт.

9a

D54782

GEAR WHEEL

PINION - planetary, used with D54781 spider and cover assembly

3шт.

10

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

11

41-24

PLUG

- expansion, pinion shaft

3шт.

12

L33242

BUTTON

- thrust

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- thrust button, if used with L33293 spider and cover assembly

1шт.

14

L33246

WASHER

- thrust, sun gear, not illustrated

2шт.

15

L33245

RING, SNAP

RING - retaining, sun gear, Includes: Ref. 16

2шт.

16

L33199

GEAR WHEEL

GEAR - sun

2шт.

17

D55076

SHAFT

- axle

2шт.

18

L33248

NUT

- internal, Serial Range: hub-spindle

4шт.

19

L33249

LOCK WASHER

WASHER - nut locking, special

2шт.

20

L33250

WASHER

- thrust, internal, Serial Range: hub-spindle

2шт.

21

L33295

HUB AND RING GEAR - internal

2шт.

L33302

HUB ASSEMBLY - wheel, Includes: Ref. 22 - 24

2шт.

22

L33304

CUP ASSY.

CUP - bearing, outer

1шт.

23

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

24

L33303

BEARING CUP

CUP - bearing, inner

1шт.

25

L33257

STUD

- wheel

20шт.

26

L33258

DEFLECTOR

SLINGER - oil

2шт.

27

391-706

WIRE - lock, 18 gauge x 12" (305 mm) long

12шт.

28

L33305

DRUM HUB

DRUM - brake

2шт.

29

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- special, drum to hub

24шт.

30

L33031

WASHER

- special

24шт.

31

L33296

CONE - bearing, outer

2шт.

32

L33299

PLUG - planetary drain

2шт.

33

L33400

NUT

-, Serial Range: wheel-hub

20шт.

34

L33297

ROLLER BEARING

CONE - bearing, inner

2шт.

35

L33259

OIL SEAL

- oil, hub

2шт.

36

114-504

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 8, Full Thd

- hex, 9/16" - 18 NF x 1-1/2", grade 8

8шт.

37

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

CAPSCREW - 12 point, 9/16" - 18 NF x 2"

16шт.

38

L33036

BRAKE LINE

BRAKE ASSEMBLY - wheel, L.H., parts list Figure 234

1шт.

38

L33037

BRAKE ASSEMBLY - wheel, R.H., parts list Figure 234

1шт.

39

L33031

WASHER

- special

24шт.

40

129-558

NUT,9/16"-12, G8

- hex, 9/16" - 18 NF, grade 8

24шт.

Выбрано товаров: 53
