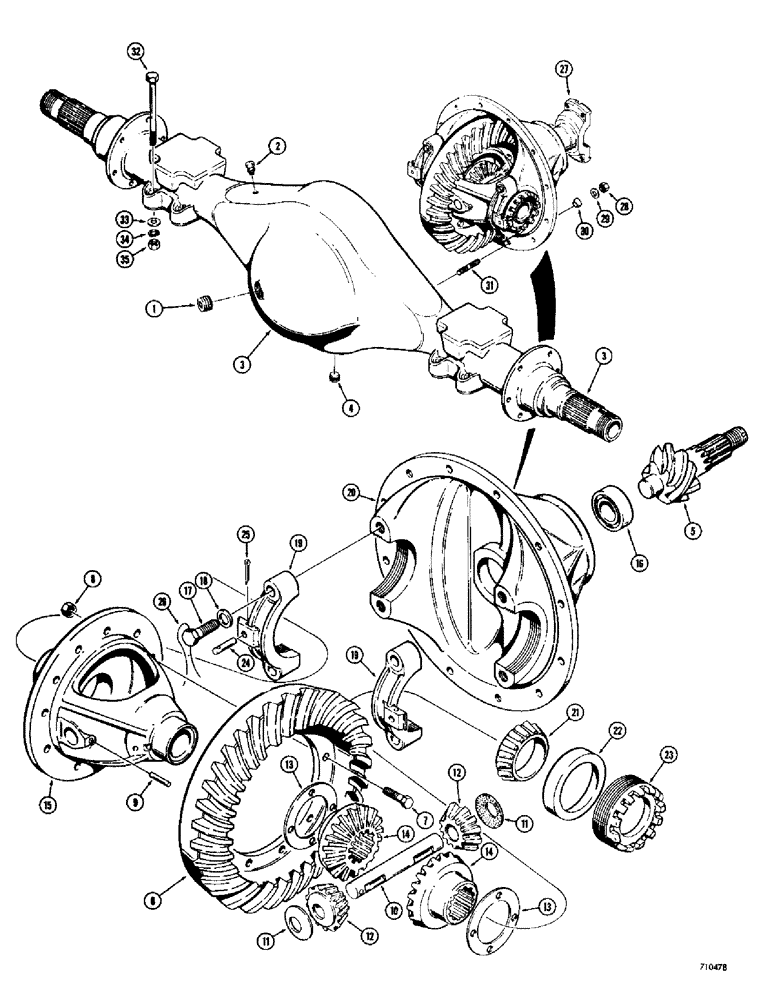

Запчасти Case 780 (216) - D54477 & D54478 REAR AXLES, B4 TRAC SN 5500354, ALSO 5500426->5500439 DIFFL PINION RING GEAR & CASE (06) - POWER TRAIN

D54477

AXLE

ASSEMBLY - complete, rear, before tractor SN. 5500202, Includes: Ref. 1 - 31

1шт.

D54478

AXLE HOUSING

AXLE ASSEMBLY - complete, rear, tractor SN. 5500202 - 5500353; also 5500426 - 5500439, Includes: Ref. 1 - 31

1шт.

1

L33299

PLUG - filler, housing, 3/4" NPT, square socket head

1шт.

2

L33264

BREATHER

- axle housing

1шт.

3

L33300

HOUSING - axle

1шт.

4

L33299

PLUG - drain, housing, 3/4" NPT, square socket head

1шт.

D54294

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle, Includes: Ref. 5 - 27

1шт.

D54571

SPARE PART

DIFFERENTIAL ASSEMBLY - axle, Includes: Ref. 5 - 16

1шт.

D54572

GEAR SET

- pinion and ring gear, matched set, Includes: Ref. 5 and 6

1шт.

Ref D54572 gear set - This set has 10 splines on

1шт.

1 of N9057 gear set (w/ 27 splines).

1шт.

1 of N9968 adapter.

1шт.

the pinion. Now subs to :

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

L33270

BOLT

BOLT - special, ring, Serial Range: gear-case

12шт.

8

131-720

LOCK NUT

- hex, self lock, 7/16" - 20 NF

12шт.

L33311

BODY

ASSEMBLY - differential

1шт.

9

138-160

LOCK PIN,5/16" x 2", Slotted

- pinion pin, Includes: Ref. 10 - 15

1шт.

10

L33277

PIN

- side pinion

1шт.

11

L33275

WASHER

- thrust, pinion

2шт.

12

L35544

PINION

- side, differential

2шт.

13

L33276

WASHER

- thrust, side gear

2шт.

14

L33274

GEAR

- side, differential

2шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential body

1шт.

16

L33286

ROLLER BEARING,0.9843" ID x 2.4390" OD x 0.6693"

BEARING - pinion, inner

1шт.

D54776

DIFFERENTIAL

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 17 - 20

1шт.

17

L33279

BOLT - special

4шт.

18

194-110

WASHER - lock, 5/8"

4шт.

19

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

20

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

21

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, differential, 2-1/4 inch ID

2шт.

22

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - bearing, differential

2шт.

23

L33287

NUT

- adjusting, bearing

2шт.

24

L33288

AXLE PIN

LOCK PIN - adjusting nut

2шт.

25

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

26

391-706

LOCK WIRE - bolt, 18 gauge x 12" (305 mm) long

2шт.

27

REF

INSTRUCTION

PINION BEARINGS AND AXLE ADAPTER - differential, parts list Figure 214

1шт.

28

25-178

NUT,1/2"-20, G5, Hvy

- hex, 7/16" - 20 NF, grade 8

12шт.

29

L33003

WASHER

- special

12шт.

30

L33266

DOWEL

- carrier

3шт.

31

L33265

STUD

- differential carrier to axle housing

12шт.

32

26-16160

BOLT,Hex, 1" - 8 x 10", Gr 8

- hex, 1" - 8 NC x 10", grade 8

8шт.

33

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

8шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.

35

131-199

LOCK NUT,1"-8, GC

NUT - hex, lock, 1" - 8 NC

8шт.
