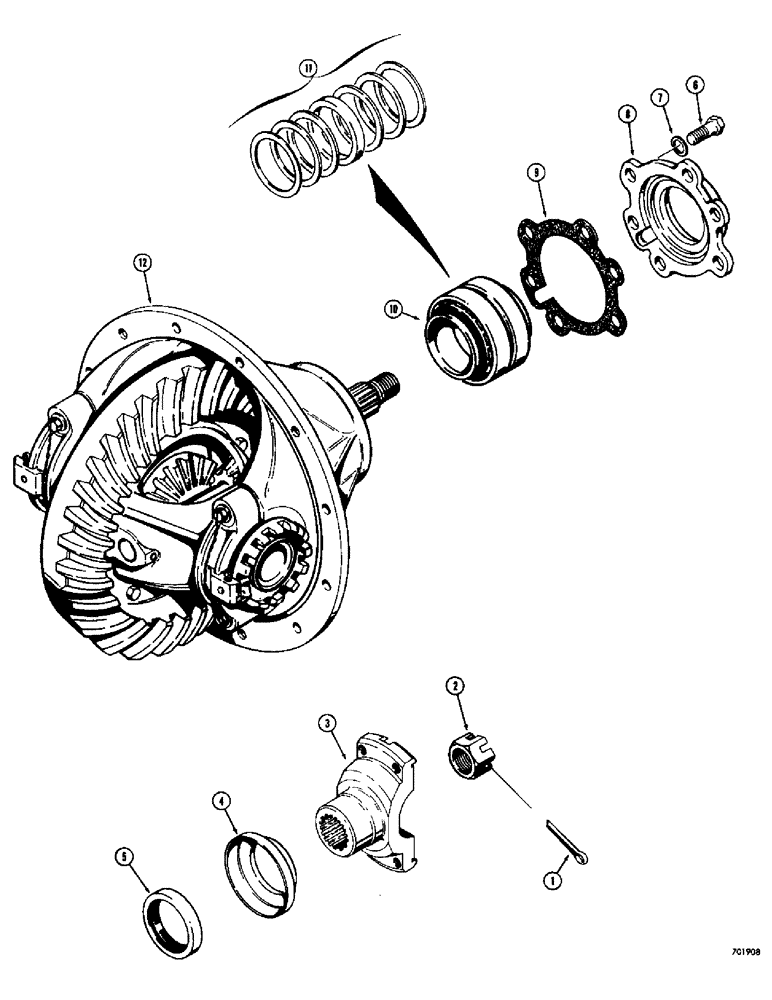

Запчасти Case 780 (214) - D54477 & D54478 REAR AXLES, B4 TRAC SN 5500354, ALSO 5500426 -> 5500439 DIFFL PINION BEARINGS &YOKE (06) - POWER TRAIN

D54477

AXLE

ASSEMBLY - complete, rear, before tractor SN. 5500202, Includes: Ref. 1 - 12

1шт.

D54478

AXLE HOUSING

AXLE ASSEMBLY - complete, rear, tractor SN. 5500202 - 5500353, also 5504526 - 5500439, Includes: Ref. 1 - 12

1шт.

D54294

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle, Includes: Ref. 1 - 12

1шт.

1

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

L33291

NUT

- adapter to pinion shaft

1шт.

3

L33309

FLANGE - companion

1шт.

on units that have 10 splines on the pinion. Refer D54572 pinion and gear set on Figure 217 (if this pinion has 27 splines, use N9968 adapter here).

1шт.

L33309 flange - This flange is used only

1шт.

4

L33308

SHIELD

- dust, oil seal

1шт.

5

L33282

OIL RESERVOIR

OIL SEAL - pinion shaft

1шт.

6

113-331

NUT,Hex, 7/16"-14 x 1 1/4", G5, Full Thd

BOLT - hex, 7/16" - 14 NC x 1-1/4"

6шт.

7

92-7

LOCK WASHER,7/16"

6шт.

8

L33280

RETAINER

- oil seal and pinion bearing

1шт.

9

L33281

GASKET

-, Serial Range: retainer-case

1шт.

10

L35769

BEARING ASSY

BEARING ASSEMBLY - pinion shaft, outer

1шт.

11

L33285

KIT

- spacer, pinion bearing

1шт.

12

REF

INSTRUCTION

CASE AND INTERNAL GEARING - differential, parts list Figure 216

1шт.
