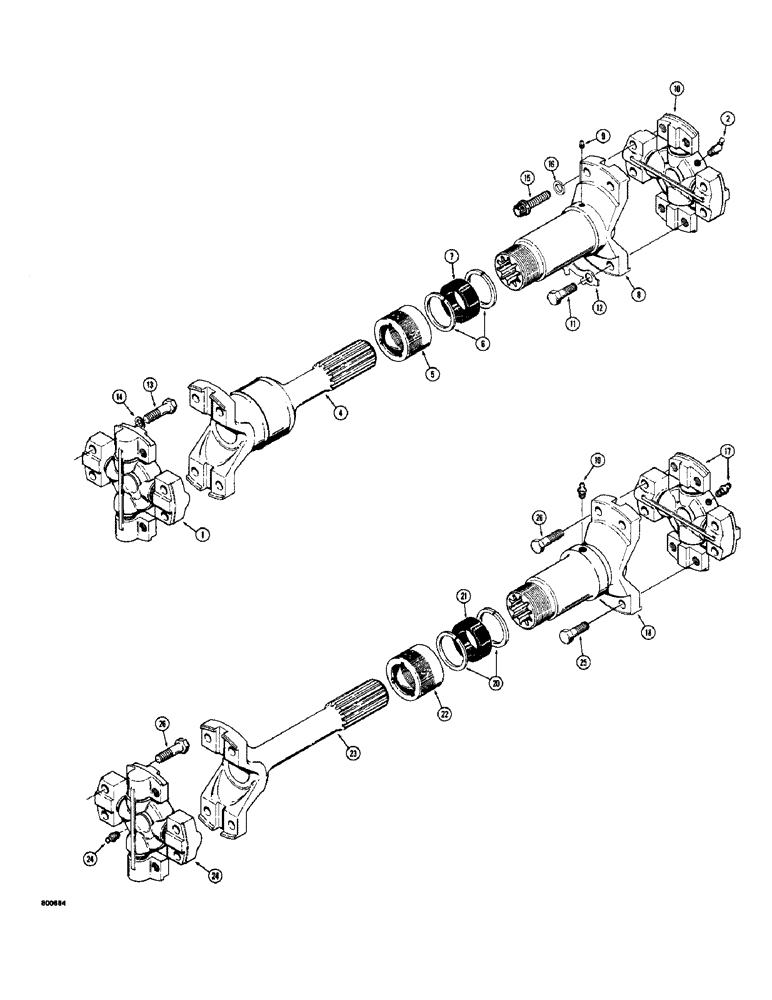

Запчасти Case 780 (212) - REAR AXLE DRIVE SHAFT, A19078 REAR AXLE DRIVE SHAFT USED W/ D54477 & D54478 AXLES (06) - POWER TRAIN

A19078

JOINT

DRIVE SHAFT - rear axle, Includes: Ref. 1 - 12

1шт.

1

D73653

U-JOINT SPIDER

KIT - repair, spider and bearing, shaft end, Includes: Ref. 2

1шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees, 1/4" - 28 NF taper

1шт.

3

RESERVED

1шт.

4

A19925

SHAFT AND YOKE - drive

1шт.

L33943

KIT

TUBE AND YOKE - drive shaft, Includes: Ref. 5 - 9

1шт.

5

A19923

CAP

dust seal

1шт.

6

A19922

WASHER

seal retainer

2шт.

7

A19924

SEAL

dust, felt

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE AND YOKE - drive shaft

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

10

A19921

U-JOINT SPIDER

KIT - repair, spider and bearing, tube end, includes one 219-37 grease fitting

1шт.

11

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- spider to shaft Hex, 3/8"-24 x 1", G8, Full Thd

8шт.

12

A17297

PLATE

bolt lock

4шт.

13

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

14

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

15

L47903

special, ferry head

4шт.

16

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

D54491

JOINT

DRIVE SHAFT - rear axle, Includes: Ref. 17 - 26

1шт.

17

D73648

JOINT

KIT - repair, spider and bearing, tube end, includes 219-1 straight grease fitting, D54491 rear axle drive shaft used with D86494 only

1шт.

18

L33943

KIT

TUBE AND YOKE - drive shaft, D54491 rear axle drive used with D86494 only, Includes: Ref. 19 - 22

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, D54491 rear axle drive shaft used with D86494 only

1шт.

20

A19922

WASHER

seal retainer, D54491 rear axle drive shaft used with D86494 only

2шт.

21

A19924

SEAL

dust, felt, D54491 rear axle drive shaft used with D86494 only

1шт.

22

A19923

CAP

dust seal, D54491 rear axle drive shaft used with D86494 only

1шт.

23

D87180

YOKE

D54491 rear axle drive shaft used with D86494 only

1шт.

24

D73648

JOINT

KIT - repair, spider and bearing, end, includes one 219-1 straight grease fitting, D54491 rear axle drive shaft used with D86494 only

1шт.

25

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- special, spider to yoke, D54491 rear axle drive shaft used with D86494 only Hex, 3/8"-24 x 1", G8, Full Thd

8шт.

26

A17298

BOLT,Hex, 3/8" x 1 11/16"

CAP SCREW - special, spider to transmission and engine, D54491 rear axle drive shaft used with D86494 only

8шт.
