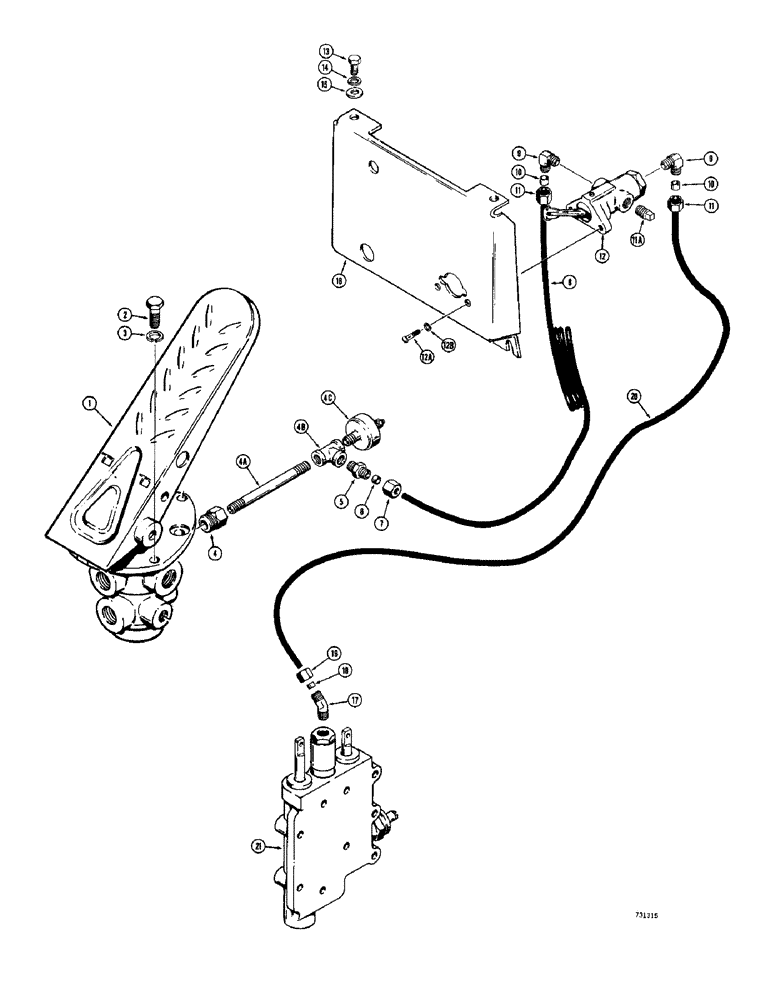

Запчасти Case 780 (210) - CLUTCH CUTOUT CONTROL (06) - POWER TRAIN

1

L19709

VALVE, BRAKE

SPARE PART TREADLE AND VALVE ASSEMBLY - brake control, parts list Figure 266

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING

1шт.

4a

221-1141

SPARE PART Nipple, 1/4" NPT x 4"

1шт.

4b

221-1422

TEE,Pipe, 1/4" NPT

FITTING

1шт.

4c

L21345

SWITCH

Actuating, stop light

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

SPARE PART FITTING ASSY - straight, male, Incl. Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING - straight

1шт.

6

222-5047

SLEEVE,1/4" Tube

Connector

1шт.

7

222-5060

NUT,1/2"-20

Connector

1шт.

8

L16535

TUBE,0.25" OD x 20.5" L

Treadle to clutch control valve

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSY, Incl. Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

FITTING - male

1шт.

10

222-5047

SLEEVE,1/4" Tube

Fitting

1шт.

11

222-5060

NUT,1/2"-20

Fitting

1шт.

11a

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

Pipe

1шт.

12

L12630

LOCK VALVE

Clutch control, parts list Figure 270

1шт.

12a

173-205

X

SCREW - machine, round head, #10 - 24 NC x 5/8"

2шт.

12b

92-3

LOCK WASHER,#10

2шт.

13

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

14

92-4

LOCK WASHER,1/4"

2шт.

15

95-4

WASHER,1/4"

2шт.

16

L47233

SPARE PART Instrument, auxiliary

1шт.

222-5090

CONNECTOR, ELEC

CONNECTOR FITTING - male, 45 degrees, Incl. Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

FITTING - male

1шт.

18

222-5047

SLEEVE,1/4" Tube

Connector

1шт.

19

222-5060

NUT,1/2"-20

Connector

1шт.

20

D53646

SPARE PART Clutch control valve to transmission control valve

1шт.

21

REF

INSTRUCTION

VALVE - transmission control, parts list Figure 204

1шт.
