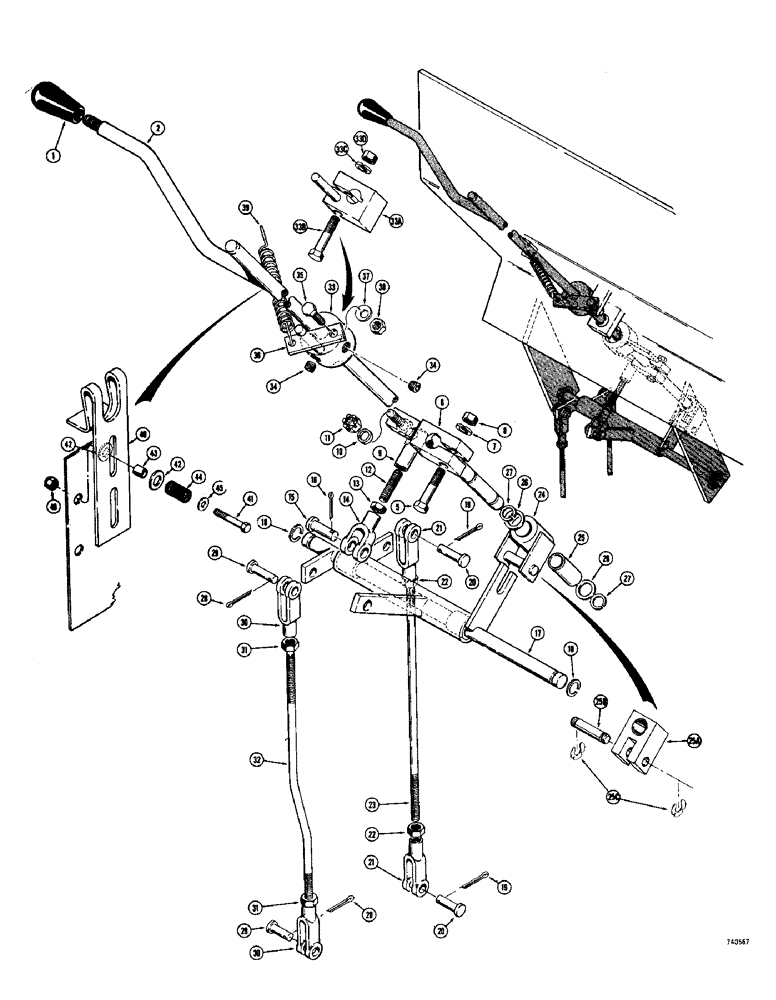

Запчасти Case 780 (206) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

A14051

GRIP

KNOB - shift lever

1шт.

2

D53941

LEVER

- shift control

1шт.

3

RESERVED

1шт.

4

RESERVED

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

6

L41470

LEVER - transmission range control

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8" - 16 NC, heavy duty

1шт.

9

D38296

JOINT

BALL JOINT - transmission lever

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-136

NUT - hex, slotted, 3/8" - 24 NF

1шт.

12

L41463

LINK - transmission range control

1шт.

13

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

14

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8"

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

16

132-22

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/32" x 3/8"

1шт.

17

L41482

SHAFT

CROSS SHAFT - transmission range and direction control

1шт.

18

L43828

OIL SEAL,#50, .464, Ext

RING - retaining, cross shaft

2шт.

19

132-22

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/32" x 3/8"

2шт.

20

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16"

2шт.

22

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF

2шт.

23

L41467

ROD

- control, transmission direction

1шт.

24

L42847

COLLAR - transmission direction control, early production, order Refs. 25A, 25B and 25C, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - control collar

1шт.

25a

D53990

COLLAR

- transmission control, late production

1шт.

25b

D54004

PIN

- transmission control, late production

1шт.

25c

D95093

RING

- pin retaining, late production

2шт.

26

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special

2шт.

27

D95096

SNAP RING,M15.88 x 1.27mm Thk

- collar retaining

2шт.

28

132-22

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/32" x 3/8"

2шт.

29

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

30

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16"

2шт.

31

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, 5/16" - 24 NF

2шт.

32

L41468

ROD

- control, transmission range

1шт.

33

L43092

COLLAR

- detent, when stock is exhausted, order D65302 clamp, 92-6 lock washer, 13-628 bolt and 25-166 nut

1шт.

33a

D65302

CLAMP

- detent

1шт.

33b

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

33c

92-6

LOCK WASHER,3/8"

1шт.

33d

25-166

NUT,3/8"-16, G5, Hvy

- hex, special, 3/8" - 16 NC

1шт.

34

83-512

SET SCREW

SCREW - set, hex socket head, 5/16" - 18 NC x 3/4", L43092 collar only

2шт.

See Figure 563 for shift lever bearing and cross shaft bearing.

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

36

L43091

PLATE - shift detent

1шт.

37

F60327

WASHER - dished, 3/8"

1шт.

38

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8" - 16 NC

1шт.

39

131-6

LOCK NUT,3/8"-16, GC

SPRING - lever return

1шт.

40

D54663

LATCH

- safety, shift lever

1шт.

41

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

2шт.

42

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

43

D54665

SPACER

- latch

2шт.

44

D54664

SPRING

- safety latch

2шт.

45

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

46

131-2

NUT,1/4"-20, GB

NUT - hex, lock, 1/4" - 20 NC

2шт.
