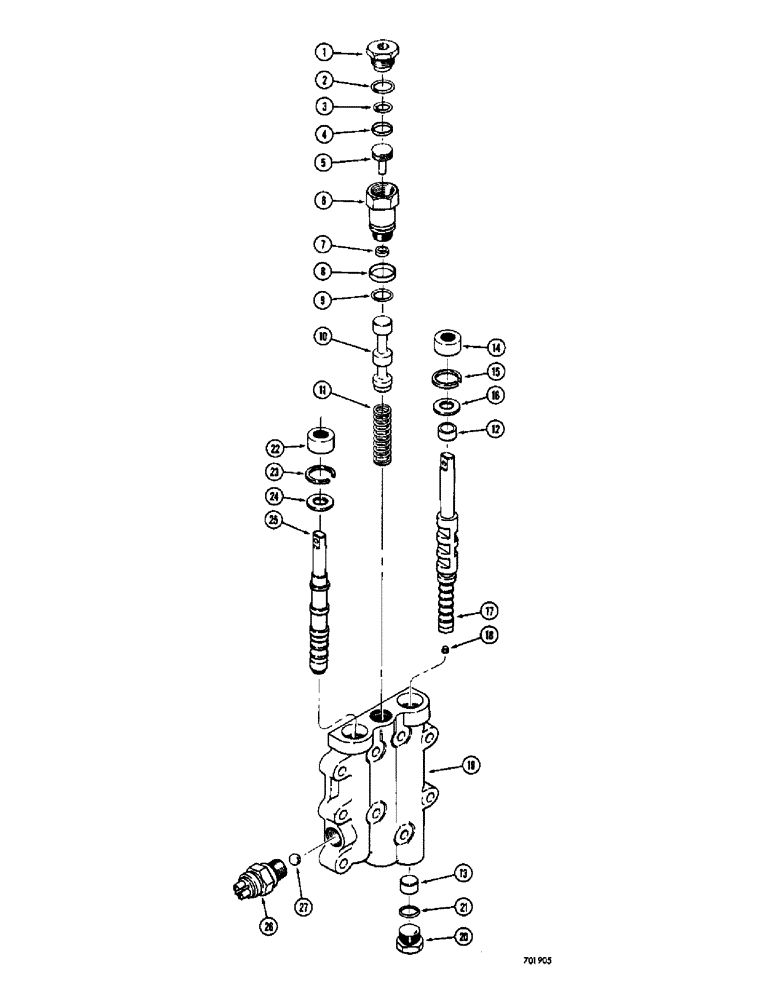

Запчасти Case 780 (204) - TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

L41513

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 27

1шт.

D55861

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 27

1шт.

L33552

VALVE

ACTUATOR ASSEMBLY - declutching, forward only, Includes: Ref. 1 - 9

1шт.

1

BHBL33574

FILTER ASSY

CAP - piston housing

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Cap

1шт.

3

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- piston

1шт.

4

L33575

RING

- glide

1шт.

5

L33576

PISTON

- actuator

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - piston

1шт.

7

D87168

OIL SEAL

- oil

1шт.

8

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- band type

1шт.

9

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

10

L33546

SPOOL - declutching, forward only

1шт.

11

L33550

SPRING

- declutching spool

1шт.

D17116

KIT

VALVE ASSEMBLY - transmission control, Includes: Ref. 12 - 27

1шт.

12

L33548

SPACER

- overshift, upper, speed selector spool

1шт.

13

L33547

SPACER

- overshift, lower, speed selector spool

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - transmission control, less spacers, Includes: Ref. 14 - 27

1шт.

Ref NSS transmission control valve assy - This is part nbr L33545 (now subs to 1 of N9971 valve, 1 of N13009 plug, 1 of D77008 washer).

1шт.

14

D77000

OIL SEAL,14.28mm ID x 28.7mm OD x 13.87mm Thk

- oil, speed selector spool

1шт.

15

L33563

RING

- washer retaining

1шт.

16

L33562

WASHER

- speed selector spool

1шт.

L33559

SPOOL

ASSEMBLY - speed selector, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - speed selector

1шт.

18

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, square socket head, 1/16" NPT

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

86512512

PLUG,7/8" - 14 ORB

Assy, Valve, Incl. Ref. 20 and 21 Hex Hd, 7/8"-14 ORB

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D77000

OIL SEAL,14.28mm ID x 28.7mm OD x 13.87mm Thk

- oil, forward and reverse spool

1шт.

23

L33563

RING

- washer retaining

1шт.

24

L33562

WASHER

- forward and reverse spool

1шт.

25

L33558

SPOOL

- forward and reverse

1шт.

26

D78316

SWITCH

- neutral start

1шт.

27

211-11

BALL,3/8" Dia

- neutral start switch, 3/8"

1шт.
