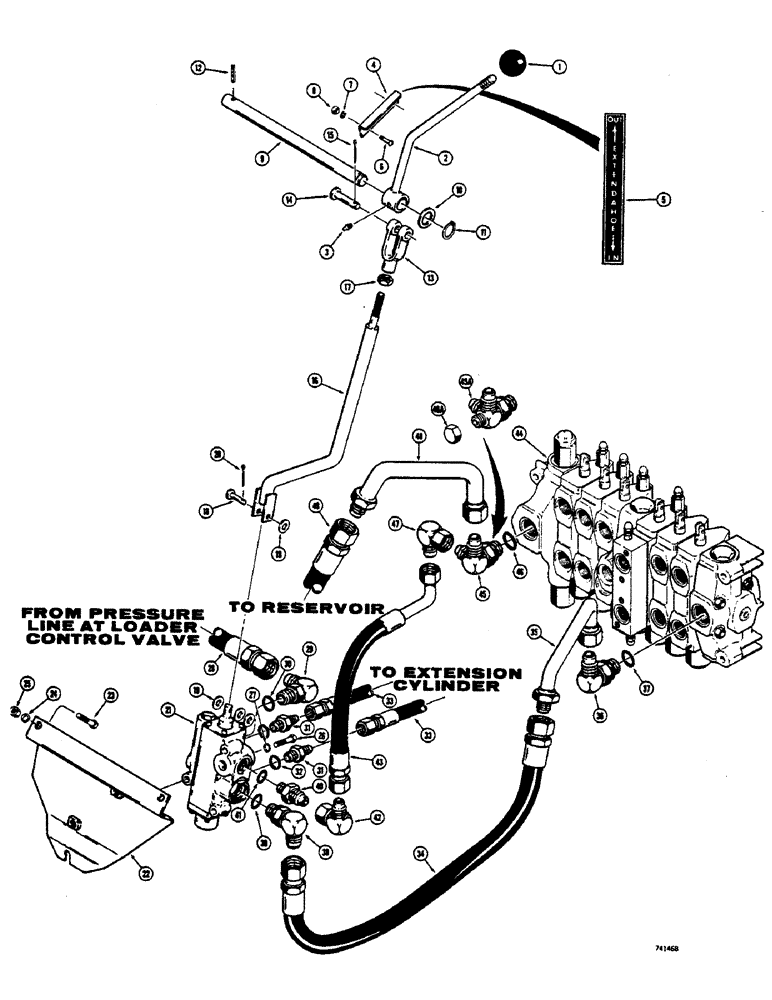

Запчасти Case 680CK (207A) - HYDRAULIC EXTENDABLE DIPPER, FOUR FOOT EXTENSION HYDRAULICS, ( VALVES AND CONTROLS) (35) - HYDRAULIC SYSTEMS

1

L54563

KNOB

- control lever

1шт.

2

L55313

LEVER - control, extendahoe

1шт.

3

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING - grease, 90 degree (1/8" NPT) self-tapping

1шт.

4

L55341

BRACKET - decal support

1шт.

5

321-2546

DECAL - backhoe console, "extendahoe"

1шт.

6

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, slotted (#8- 32 NC x 1/2") zinc plated

2шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

8

129-16

NUT,#8-32

2шт.

9

L55100

SHAFT - control lever

1шт.

10

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- special (Spacer)

1шт.

11

B18206

SNAP RING,#87, Ext

Ring, Snap, , pin #87, Ext

1шт.

12

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - clevis, control lever (1/2")

1шт.

14

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (Upper)

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

L55315

ROD - control lever

1шт.

17

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

18

T40551

PIN

- clevis (Lower)

1шт.

19

195-518

WASHER,1/4", SAE

- plain (1/4") zinc plated

4шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

21

D56189

VALVE

- extendahoe control, Parts list Figure 233A

1шт.

22

L54613

BRACKET - valve mounting

1шт.

23

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

26

165-167

CAP SCREW - hex., socket head (3/8" - 16 NC x 2-1/4")

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

28

L55294

HOSE - pressure, loader valve to extendahoe valve (12" long)

1шт.

29

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 30 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

31

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight, male, Incl. Ref 32 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

2шт.

33

L54686

HOSE ASSY.

HOSE - valve to extension cylinder (80" long)

2шт.

34

L55293

HOSE ASSY.

HOSE - extendahoe valve to backhoe valve (32" long)

1шт.

35

L51552

TUBE

- at backhoe valve, end inlet (41" long)

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 37 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

38

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 39 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

40

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - striaght, male, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

42

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

43

L55295

HOSE - return, extendahoe valve to backhoe valve (28" long)

1шт.

44

REF

INSTRUCTION

VALVE - backhoe control, See Figures 220 and 272 for valve

1шт.

45

D44753

FITTING

TEE - special, return (Used with L53732 backhoe valve) (Replaces D44758)

1шт.

45a

L55598

TEE - special, return (Used with G34451 backhoe valve), Includes: Ref. 46

1шт.

46

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

46a

218-755

CAP,37 Degree, 3/4"-16

Tee 37º, 3/4"-16

1шт.

47

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

48

L51296

TUBE - return, backhoe control valve, Serial Range: outlet-reservoir

1шт.

49

L16417

HOSE ASSY.

HOSE - return, backhoe valve to reservoir (52-1/2" long)

1шт.
