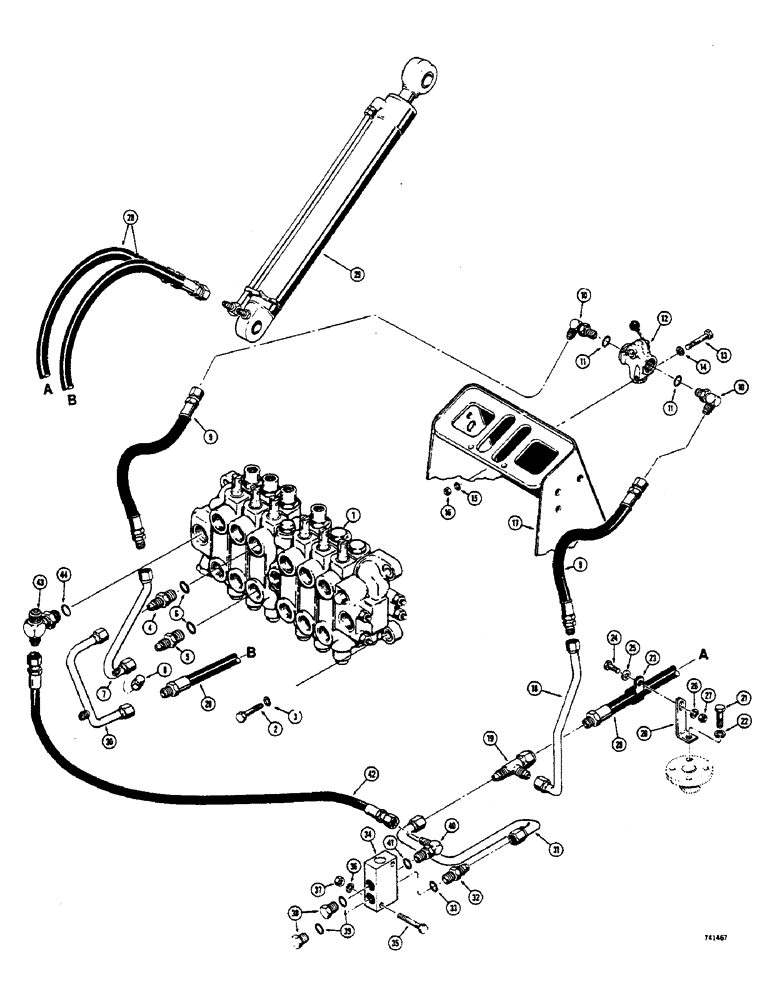

Запчасти Case 680CK (205A) - BOOM LOCKOUT HYDRAULICS, (TRACTORS EQUIPPED WITH TWIN LEVER AND INDIVIDUAL LEVER CONTROLS) (35) - HYDRAULIC SYSTEMS

1

G34451

VALVE - backhoe control, Parts list Figure 272

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male. straight (Upper boom port), Incl. Ref. 6

1шт.

5

L55143

FITTING

CONNECTOR - male, special (Lower boom port), Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring (218-5077 and L55143 connectors)

1шт.

7

L51393

TUBE - boom section, lower port (Valve to boom lock valve) 0.75" OD x 13, 10.5" L

1шт.

8

218-755

CAP,37 Degree, 3/4"-16

Tube (Used when tractor does not have hydra-guide installed) 37º, 3/4"-16

1шт.

9

L51381

HOSE ASSY.

HOSE - boom check (At valve)

2шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- male, 90 degree, Incl. Ref. 11

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

12

L51101

VALVE

- boom lockout, Parts list Figure 206

1шт.

13

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

14

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

L51688

CONSOLE - backhoe control (Used only on tractor with boom lockout and twin lever controls)

1шт.

18

L47385

TUBE - lock out valve to cylinder, pressure line at junction tee 0.75" OD

1шт.

19

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Lock out valve to cylinder pressure line 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

20

L47390

BRACKET - clamp mounting

1шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

22

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

23

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

25

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

26

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hec. (3/8" - 16 NC)

1шт.

28

D44679

HOSE ASSY.

HOSE - valve to boom cylinder (64" long)

2шт.

29

REF

INSTRUCTION

HYDRAULICS - boom cylinder (Parts list page 202A)

1шт.

30

L51676

TUBE,5.2, 2" L

- boom section, upper port (Used with hydra-guide option)

1шт.

30

L50419

TUBE,0.75" OD

- boom section, upper (Used on models without hydra-guide)

1шт.

31

L47387

TUBE,0.75" OD

- tee to relief valve, pressure side

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 33 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

34

D46850

VALVE

- relief, hydraulic

1шт.

35

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

36

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

38

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Hydraulic, Includes: Ref. 39 Hex Hd, 1 1/16"-12 ORB

2шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- male, 90 degree, Incl. Ref. 41

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

42

L55601

HOSE - relief valve to backhoe valve outlet

1шт.

43

218-5507

FITTING

TEE - special, at backhoe valve outlet, Includes: Ref. 44

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring

1шт.
