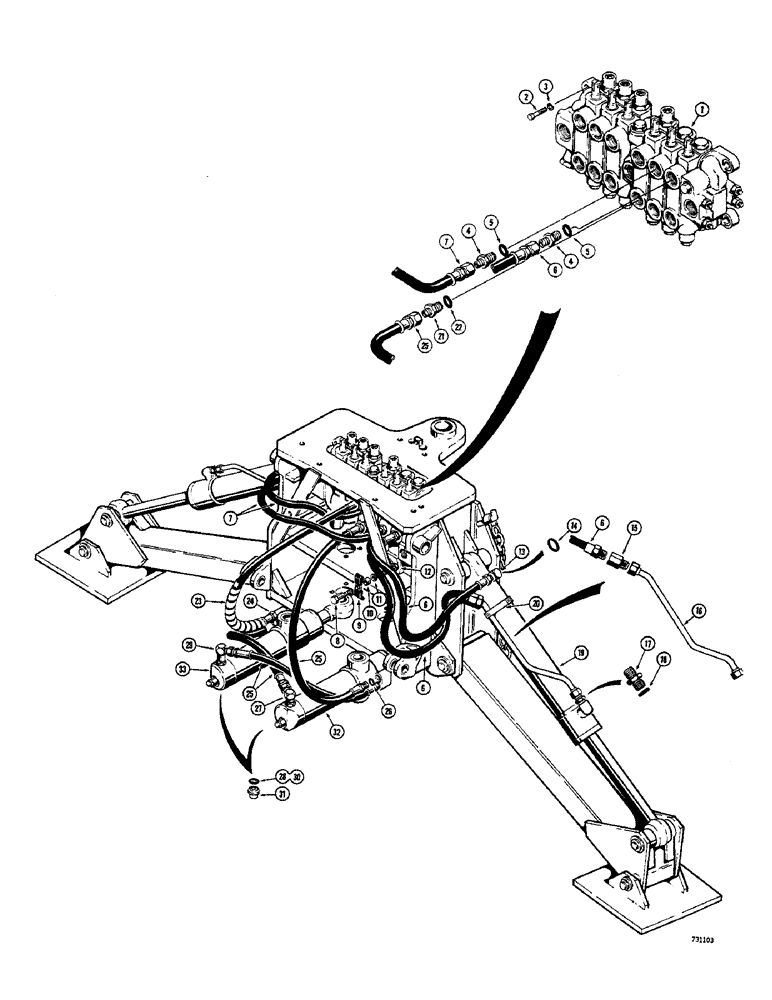

Запчасти Case 680CK (197A) - BACKHOE HYDRAULICS - CASE VALVE, SWING AND STABILIZER (35) - HYDRAULIC SYSTEMS

1

G34451

VALVE - hydraulic, backhoe control, Parts list Figure 272

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

4

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 5

4шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

6

D40809

HOSE

- valve to R.H. stabilizer cylinder (33-1/2" long), hydraulics

2шт.

7

D39220

HOSE ASSY.

HOSE - valve to L.H. stabilizer cylinder (43" long), hydraulics

2шт.

8

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5, Stabilizer cylinder hydraulics

2шт.

9

D33316

CLAMP

- hose, stabilizer cylinder hydraulics

2шт.

10

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

11

195-103

WASHER,5/16"

- plain () zinc plated, stabilizer cylinder hydraulics 5/16"

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC) zinc plated, stabilizer cylinder hydraulics

2шт.

13

D23974

ELBOW

- adjustable, 90 degree (Closed end), stabilizer cylinder hydraulics, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

15

218-1038

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, Fem Pipe

ADAPTER - straight, stabilizer cylinder hydraulics

2шт.

16

L50155

TUBE,0.625" OD x 18.4, 3.5" L

- valve to stabilizer cylinder, rod end, hydraulics

2шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

19

G33828

CYLINDER

- stabilizer, Parts list Figures 264 and 265A, cylinder hydraulics

2шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder, stabilizer hydraulics

2шт.

21

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics, Includes: Ref. 22

2шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

23

D45558

HOSE ASSY.

HOSE - upper valve port to L.H. swing cylinder, rod end (35" long), hydraulics, Includes: Ref. 24

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.

25

D37219

HOSE

- lower valve port to R.H. swing cylinder, rod end crossover, (30" long), hydraulics, Includes: Ref. 26

3шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.

27

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree (R.H. swing cylinder), swing cylinder hydraulics, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

29

D36934

FITTING

ELBOW - adjustable, 90 degree (L.H. swing cylinder), swing cylinder hydraulics, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

31

L42801

VALVE, CHECK

RESTRICTOR - check, swing cylinder hydraulics

2шт.

32

G33628

CYLINDER

- swing, R.H., Parts list Figures 260 and 261A, swing cylinder hydraulics

1шт.

33

G33629

CYLINDER BLOCK

CYLINDER - swing, L.H., Parts list Figures 260 and 261A, swing cylinder hydraulics

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.
