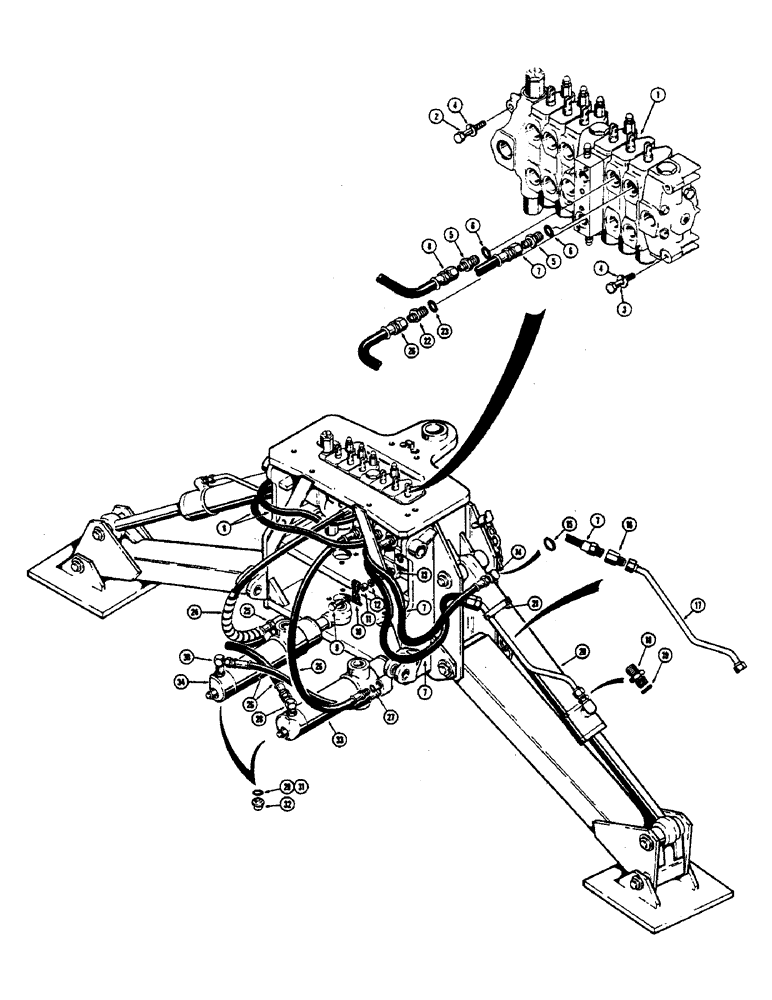

Запчасти Case 680CK (196) - BACKHOE HYDRAULICS - COMMERCIAL VALVE, SWING AND STABILIZER (35) - HYDRAULIC SYSTEMS

1

L53732

LOCK VALVE

VALVE - hydraulic, backhoe control, Parts list Figure 220

1шт.

2

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

3

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 6

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

7

D40809

HOSE

- valve to R.H. stabilizer cylinder (33-1/2" long), hydraulics

2шт.

8

D39220

HOSE ASSY.

HOSE - valve to L.H. stabilizer cylinder (43" long), hydraulics

2шт.

9

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics Hex, 5/16"-18 x 2 1/4", G5

2шт.

10

D33316

CLAMP

- hose, stabilizer cylinder hydraulics

2шт.

11

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16"), stabilizer cylinder hydraulics

2шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), stabilizer cylinder hydraulics

2шт.

14

D23974

ELBOW

- adjustable, 90 degree (Closed end), stabilizer cylinder hydraulics, Includes: Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

16

218-1038

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, Fem Pipe

ADAPTER - straight, stabilizer cylinder hydraulics

2шт.

17

L50155

TUBE,0.625" OD x 18.4, 3.5" L

- valve to stabilizer cylinder, rod end, hydraulics

2шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cylinder hydraulics, Includes: Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

20

G33828

CYLINDER

- stabilizer, Parts list Figures 264 and 265A, hydraulics

2шт.

21

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder, stabilizer hydraulics

2шт.

22

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

24

D45558

HOSE ASSY.

HOSE - upper valve port to L.H. swing cylinder, rod end (35" long), hydraulics

1шт.

26

D37219

HOSE

- lower valve port to R.H. swing cylinder, rod endcrossover, swing cylinders (30" long), hydraulics

3шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree (R.H. swing cylinder), hydraulics

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degree (L.H. swing cylinder), hydraulics

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

32

L42801

VALVE, CHECK

RESTRICTOR - check, swing cylinder hydraulics

2шт.

33

G33628

CYLINDER

- swing, R.H., Parts list Figures 260 and 261A, cylinder hydraulics

1шт.

34

G33629

CYLINDER BLOCK

CYLINDER - swing, L.H., Parts list Figures 260 and 261A, cylinder hydraulics

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, swing cylinder hydraulics

1шт.
