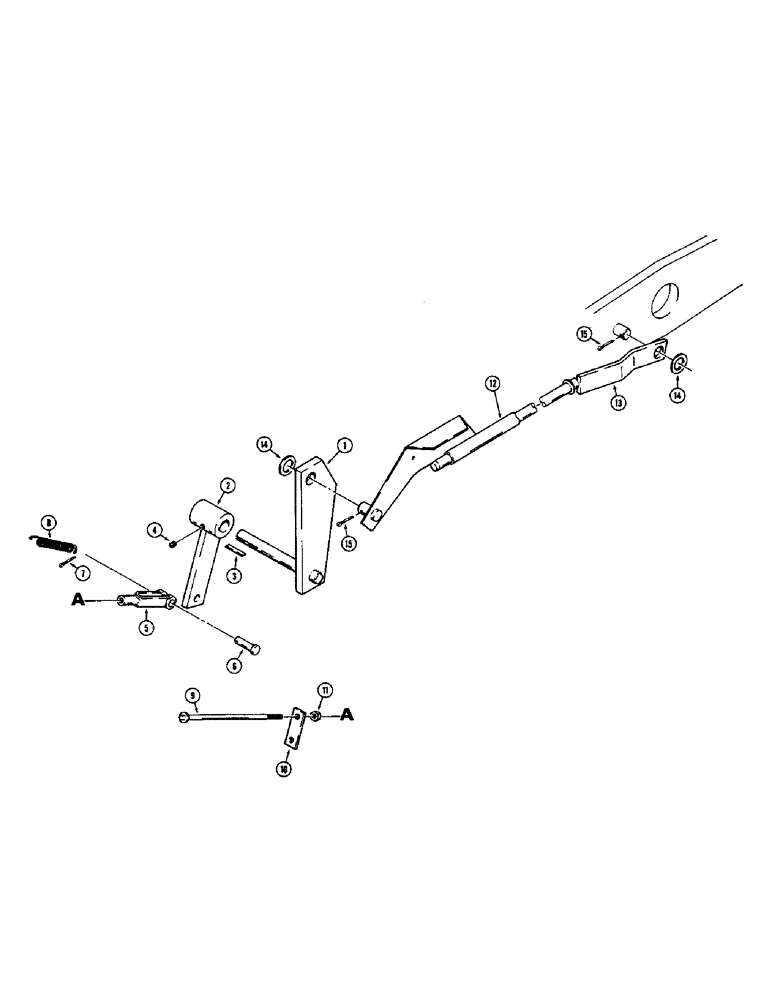

Запчасти Case 680CK (170) - LOADER CONTROLS, ANTI-ROLLBACK PARTS (35) - HYDRAULIC SYSTEMS

1

L53722

ARM ASSY.

LEVER - control, anti-rollback (Exhaust stock on tractors without cab, then supply L55606 for tractors with or without cab)

1шт.

1

L55606

DIPPER

LEVER - control, anti-rollback

1шт.

2

L53638

DRAG LINK

LINK - pivot, anti-rollback control

1шт.

3

A27001

KEY

- parallel, 3/16" x 1-3/8"

1шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex., socket head (3/8" - 16 NC x 3/8")

1шт.

5

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod (5/16")

1шт.

6

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

8

L50735

VALVE SPRING

SPRING - return, anti-rollback lever

1шт.

9

L53643

ROD

- anti-roll control to plate at bucket control rod

1шт.

10

L53636

PLATE ASSY.

PLATE - anti-rollback control

1шт.

11

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

12

L54028

TUBE - support, control rod (Exhaust stock on tractors without cab, then supply L55587 for tractors with or without cab)

1шт.

12

L55587

TUBE,45.5" L

- support, control rod

1шт.

13

L54026

PIPE

ROD - anti-rollback control

1шт.

14

95-12

WASHER,3/4"

- plain () 3/4"

2шт.

15

132-120

X

PIN - cotter, 7/32" dia. x 1-1/4"

2шт.
