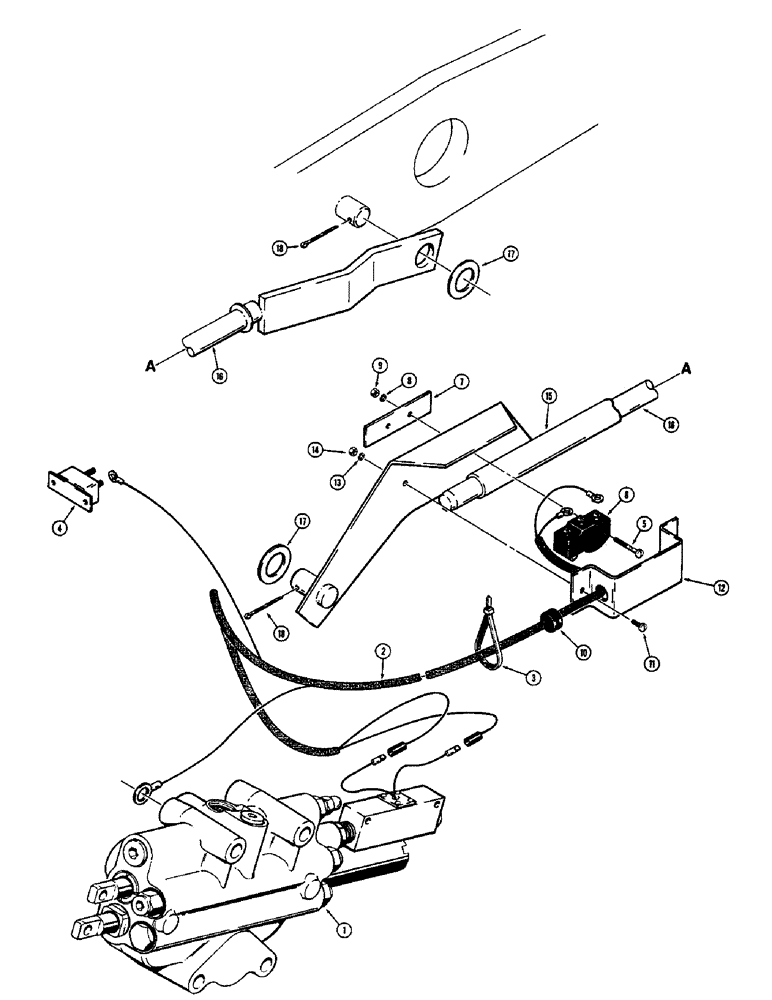

Запчасти Case 680CK (168) - LOADER CONTROLS, RETURN-TO-DIG PARTS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, See Figure 212 for proper valve

1шт.

2

L53984

HARNESS

- wiring, return-to-dig

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, harness

4шт.

4

D37203

BREAKER

CIRCUIT BREAKER - 15 amp (At R.H. instrument panel)

1шт.

5

169-144

SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"

- machine, flat head (#6 - 32 NC x 1-1/4")

2шт.

6

L54683

SWITCH

- limit, return-to-dig

1шт.

7

L54023

PLATE - backing, switch

1шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

9

129-15

NUT,#6-32

2шт.

10

A27338

GROMMET

- harness, at cover

1шт.

11

173-262

X

SCREW - machine, round head (#8 - 32 NC x 5/8")

2шт.

12

L54025

COVER ASSY

COVER - limit switch

1шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

14

129-16

NUT,#8-32

2шт.

15

L54028

TUBE - support, control rod and switch mounting

1шт.

16

L54026

PIPE

ROD - control, limit switch

1шт.

17

95-12

WASHER,3/4"

- plain () 3/4"

2шт.

18

132-120

X

PIN - cotter, 7/32" dia. x 1-1/4"

2шт.
