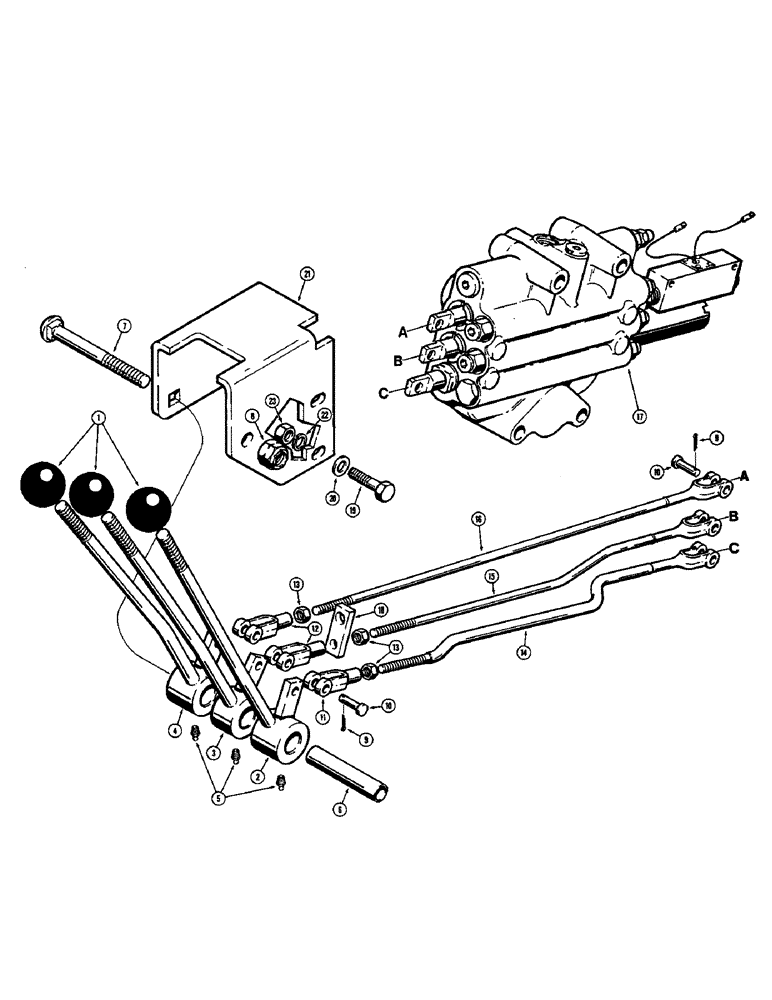

Запчасти Case 680CK (166) - LOADER CONTROLS, 3 SPOOL VALVE AND LEVERS (35) - HYDRAULIC SYSTEMS

1

L54563

KNOB

- control lever

3шт.

2

L54081

LEVER - lift control

1шт.

3

L54077

LEVER - bucket control

1шт.

4

L54082

LEVER - clam control

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

3шт.

6

L53640

AXLE PIN

BUSHING - lever pivot

1шт.

7

11-872

BOLT - round head, square shoulder (1/2" - 13 NC x 4-1/2")

1шт.

8

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - hex., lock (1/2" - 13 NC)

1шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

10

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

6шт.

11

G46267

YOKE - rod end, lift lever

1шт.

12

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end, bucket and clam levers (5/16")

2шт.

13

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC)

3шт.

14

L53630

ROD

- lift, Serial Range: lever-valve

1шт.

15

L53632

ROD - bucket, Serial Range: lever-valve

1шт.

16

L53634

ROD- clam, Serial Range: lever-valve

1шт.

17

L52725

VALVE

- loader control, 3 spool, Parts list Figure 212

1шт.

18

L53636

PLATE ASSY.

PLATE - anti-rollback to bucket control rod

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

20

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

21

L53628

CONSOLE - lever mounting

1шт.

22

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
