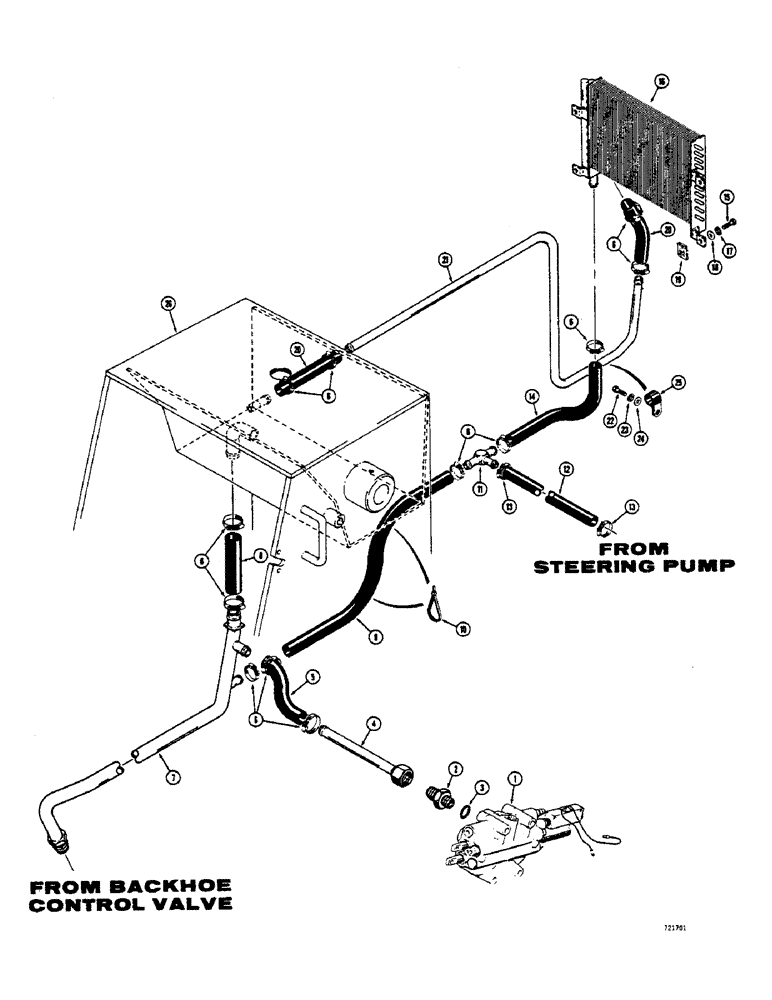

Запчасти Case 680CK (162) - EQUIPMENT PRIMARY HYDRAULICS, OIL COOLER AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, See Figure 212 for proper valve

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

4

L53413

TUBE - return, loader valve to cooler 1" OD x 11" L

1шт.

5

L53565

HOSE ASSY.

HOSE - return, loader, Serial Range: valve-cooler

1шт.

6

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

12шт.

7

L53576

TUBE,1.25" OD

- return, backhoe valve to cooler and reservoir

1шт.

8

L53566

HOSE ASSY.

HOSE - return, backhoe, Serial Range: valve-reservoir

1шт.

9

L54155

HOSE,0.75" ID x 45.00", SAE 100R3

Return, Tube to Cooler Tee 0.75" ID x 45.00", SAE 100R3

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

TIE - strap, hose

2шт.

11

L53940

TEE

- cooler return

1шт.

12

L53938

HOSE - return, steering pump to cooler tee

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

14

L51061

HOSE,0.75" ID x 21.00", SAE 100R3

Return, Tee to Oil Cooler 0.75" ID x 21.00", SAE 100R3

1шт.

15

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

HHCS - 5/16" - 18 NC x 5/8"

4шт.

16

L43582

COOLER

- hydraulic oil

1шт.

17

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

18

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

19

131-607

NUT

- Tinnerman (5/16" - 18 NC)

4шт.

20

R13969

HOSE - return, Serial Range: cooler-reservoir

2шт.

21

L53568

TUBE - return, cooler reservoir 0.75" OD

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

25

49855

CLAMP

- return tube

1шт.

26

REF

INSTRUCTION

TANK - hydraulic oil, See Figure 132 for complete chassis

1шт.
