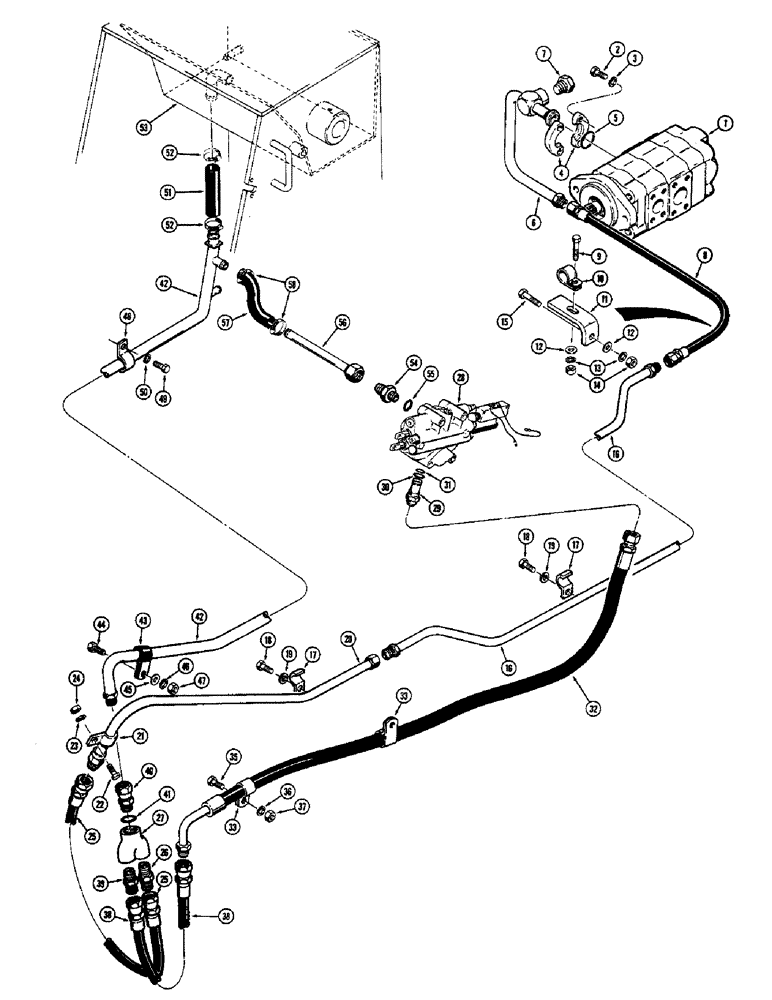

Запчасти Case 680CK (158) - LOADER HYDRAULICS, LOADER COUNTERWEIGHT MODEL RETURN LINES (35) - HYDRAULIC SYSTEMS

1

L26379

PUMP

- hydraulic, equipment, Parts list Figure 234

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

4

A16961

FLANGE

- split (3/4")

2шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

6

L53121

TUBE,8, 7.5" L

- pressure, center inlet (At pump)

1шт.

7

221-655

PLUG,Hex Hd, 3/4"-14

- pipe, hex. head (3/4" NPT)

1шт.

8

D31796

HOSE

- pressure (29" long)

1шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- hose

1шт.

11

L47867

BRACKET - hose clamp

2шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

13

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

15

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

1шт.

16

L54278

TUBE - pressure, center inlet (Intermediate) 0.75" OD x 66, 2" L

1шт.

17

L25930

CLAMP

- tube

2шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

2шт.

19

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

20

L54280

TUBE,0.75" OD

- pressure, center inlet (Rear)

1шт.

21

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

25

L53654

HOSE - pump to junction (33-1/2" long)

1шт.

26

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - male, straight

1шт.

27

L19608

CONNECTOR, ELEC

"Y" JUNCTION - return line

1шт.

28

REF

INSTRUCTION

VALVE - hyd. idr. control, See Figure 212 for proper valve

1шт.

29

L30446

FITTING

CONNECTOR - power beyond, Includes: Ref. 30 and 31

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, connector (Large)

1шт.

31

L32680

RING

SEAL - "O"ring, connector (Small)

1шт.

32

L55420

HOSE

- loader valve to junction fitting (64" long)

1шт.

33

D25156

CLAMP

- hose

2шт.

35

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

25-104

NUT,1/4"-20, G5

1шт.

38

L53653

HOSE ASSY.

HOSE - valve to junction (41" long)

1шт.

39

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - male, straight

1шт.

40

L19599

FITTING

ADAPTER - swivel type, straight, Includes: Ref. 41

1шт.

41

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

42

L53576

TUBE,1.25" OD

- return

1шт.

43

D40471

CLAMP

- tube

1шт.

44

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

46

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

47

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

48

A14183

CLAMP - tube

1шт.

49

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

51

L53566

HOSE ASSY.

HOSE - return, Serial Range: junction-reservoir

1шт.

52

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

53

REF

INSTRUCTION

TANK - hydraulic oil reservoir, See Figure 132 for complete chassis

1шт.

54

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, Incl. Ref. 55

1шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

56

L53413

TUBE - return, loader valve to reservoir 1" OD x 11" L

1шт.

57

L53565

HOSE ASSY.

HOSE - return, loader, Serial Range: valve-reservoir

1шт.

58

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.
