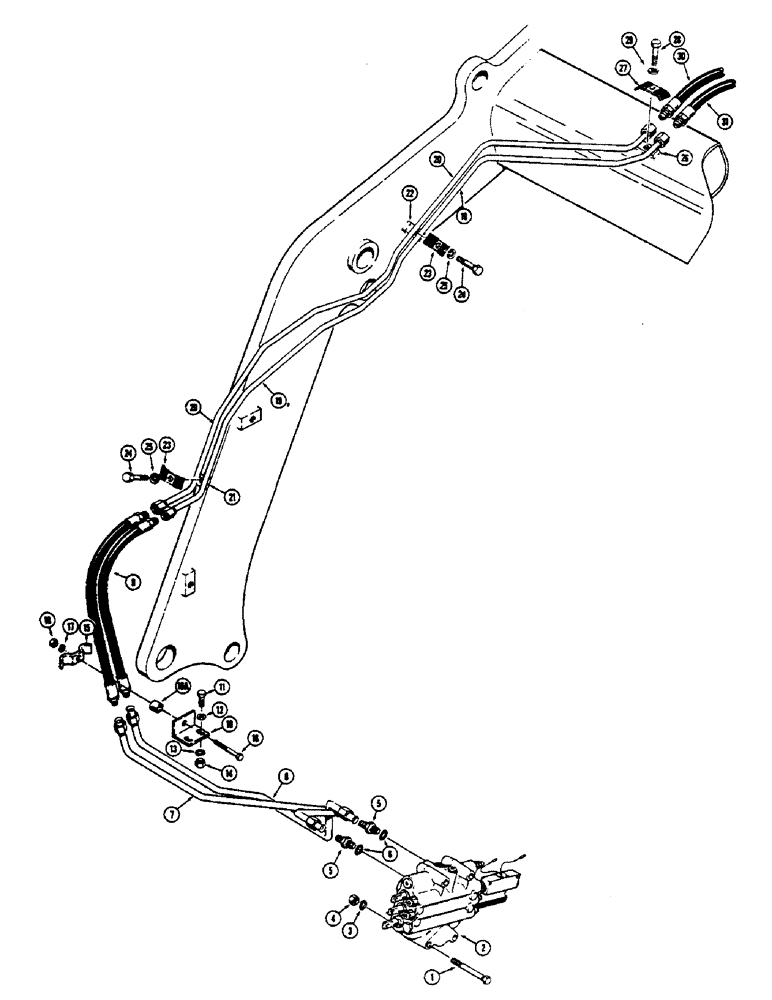

Запчасти Case 680CK (156) - LOADER HYDRAULICS, CONTROL VALVE TO CLAM CYLINDERS (35) - HYDRAULIC SYSTEMS

1

L52725

VALVE

- hydraulic, loader (3 spool) parts list Figure 212

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 6

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

L54316

TUBE - valve to clam cylinder, upper (At valve)

1шт.

8

L53418

TUBE,0.625" OD

- valve to clam cylinder, lower (At valve)

1шт.

9

L53419

HOSE

- valve to clam cylinder (43" long)

2шт.

10

L47468

BRACKET

- tube clamp

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

12

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- (3/8" - 16 NC)

2шт.

15

A17542

CLAMP

- tube

1шт.

16

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

16a

D33552

BUSHING

SPACER - tube

1шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

19

L50625

TUBE - valve to clam cylinder, rod end (Lower) 0.625" OD

1шт.

20

L50624

TUBE - valve to clam cylinder, close end (Upper) 0.375" OD

1шт.

21

L15309

BLOCK - tapped (Rear)

1шт.

22

D39023

BLOCK

- tapped (Side)

1шт.

23

L15301

CLAMP

- tube

2шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

25

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

26

L15316

BLOCK - tapped

1шт.

27

L15315

CLAMP

- tube

1шт.

28

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

29

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

30

L26727

HOSE ASSY.

HOSE - hydraulic, L.H. (43" long)

1шт.

31

L50629

HOSE ASSY.

HOSE - hydraulic, R.H. (48" long)

1шт.
