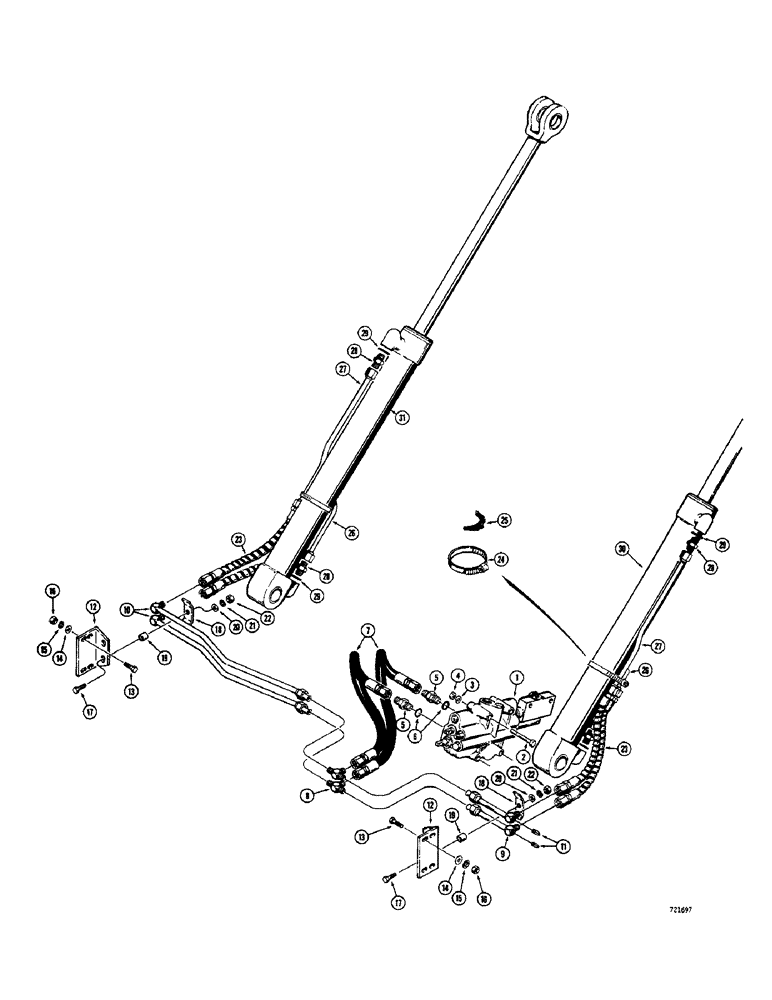

Запчасти Case 680CK (154) - LOADER HYDRAULICS, CONTROL VALVE TO LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, See Figure 212 for proper valve

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC 4-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 6 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

L54137

HOSE ASSY.

HOSE - valve to manifold tubes (25" long)

2шт.

8

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- manifold tubes

2шт.

9

L53427

TUBE,0.625" OD x 4.7" L

- manifold, tee to R.H. lift cylinder

2шт.

10

L53429

TUBE,0.625" OD x 23.7, 1.5" L

- manifold, tee to L.H. lift cylinder

2шт.

11

221-1661

PLUG

- pipe, square head (1/8" NPT)

2шт.

12

L54060

BRACKET - manifold clamp mounting

2шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

14

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

15

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

A14078

CLAMP

-, Serial Range: tube-bracket

2шт.

19

D33552

BUSHING

SPACER - tube clamp

2шт.

20

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

23

D34780

HOSE

- valve to lift cylinder (19" long)

4шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

25

D39502

SADDLE

- tube clamp

2шт.

26

L26332

TUBE,0.625" OD x 9.5, 3.37" L

- valve to lift cylinder, closed end (At cylinder)

2шт.

27

L26308

TUBE,0.625" OD x 22.62" L

- valve to lift cylinder, rod end (At cylinder)

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 29

4шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

30

G33603

CYLINDER

- hydraulic, R.H. loader lift, Parts list Figures 256 and 257A

1шт.

31

G33602

CYLINDER

- hydraulic, L.H. loader lift, Parts list Figures 256 and 257A

1шт.
