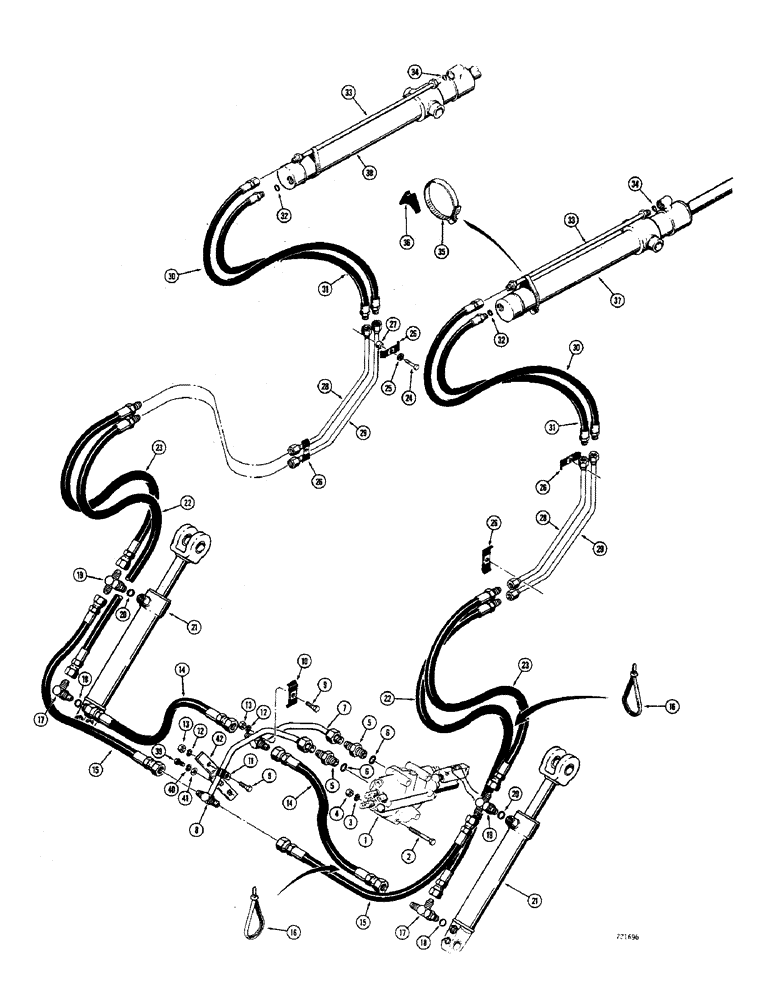

Запчасти Case 680CK (152) - LOADER HYDRAULICS, CONTROL VALVE TO HYDRA-LEVELING AND BUCKET CYLINDERS (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE - hydraulic, loader control, See Figure 212 for proper valve

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 6 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

7

L53407

TUBE - valve to hydra-levelilng cylinders, closed end 0.75" OD x 8.1, 6.3" L

1шт.

8

L53409

TUBE - to hydra-leveling cylinders, rod end

1шт.

9

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

10

R17319

CLAMP

- tube

2шт.

11

49855

CLAMP

- tube (At bracket)

1шт.

12

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

D27478

HOSE ASSY.

HOSE - valve to hydra-leveling cylinders, closed end (22" long)

2шт.

15

L53348

HOSE,0.50" ID x 27.00"

Valve to Hydra-Leveling Cylinders, Rod End 0.50" ID x 27.00"

2шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

TIE - strap, hose

4шт.

17

D53471

TEE

- adjustable, special (Closed end of hydra-leveling cylinder), Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

19

218-595

TEE,7/8"-14, 37 Degree

- adjustable (Rod end of hydra-leveling cylinder)(Replaces 218-5148)

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, Includes: Ref. 20

1шт.

21

G33555

CYLINDER

- loader, hydra-leveling, Parts list Figure 252 and 253A

2шт.

22

L53350

HOSE ASSY.

HOSE - closed end of hydra-leveling cylinder to rod end of bucket cylinder (55" long)

2шт.

23

L53351

HOSE

- rod end of hydra-leveling cylinder to closed end of bucket cylinder (45" long)

2шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

4шт.

25

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

26

D33316

CLAMP

- tube

4шт.

27

D33552

BUSHING

SPACER - clamp

4шт.

28

L26708

TUBE - valve to bucket cylinders, closed end (At lift frame) 0.625" OD

2шт.

29

L26710

TUBE,0.625" OD

- valve to bucket cylinders, rod end (At lift frame)

2шт.

30

L26727

HOSE ASSY.

HOSE - to bucket cylinder, rod end (43" long)

2шт.

31

L26725

HOSE ASSY.

HOSE - to bucket cylinder, closed end (37" long), Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

33

L13737

TUBE

- bucket cylinder, rod end (At cylinder), Includes: Ref. 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

35

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

36

D38648

BLOCK

SADDLE - tube clamp

2шт.

37

G33562

CYLINDER

- hydraulic, R.H. loader bucket, Parts list Figures 254 and 255A

1шт.

38

G33561

CYLINDER

- hydraulic,L.H. loader bucket, Parts list Figures 254 and 255A

1шт.

39

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

40

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

2шт.

41

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

2шт.

42

L53760

SUPPORT -, Serial Range: tube-tranmission

1шт.
