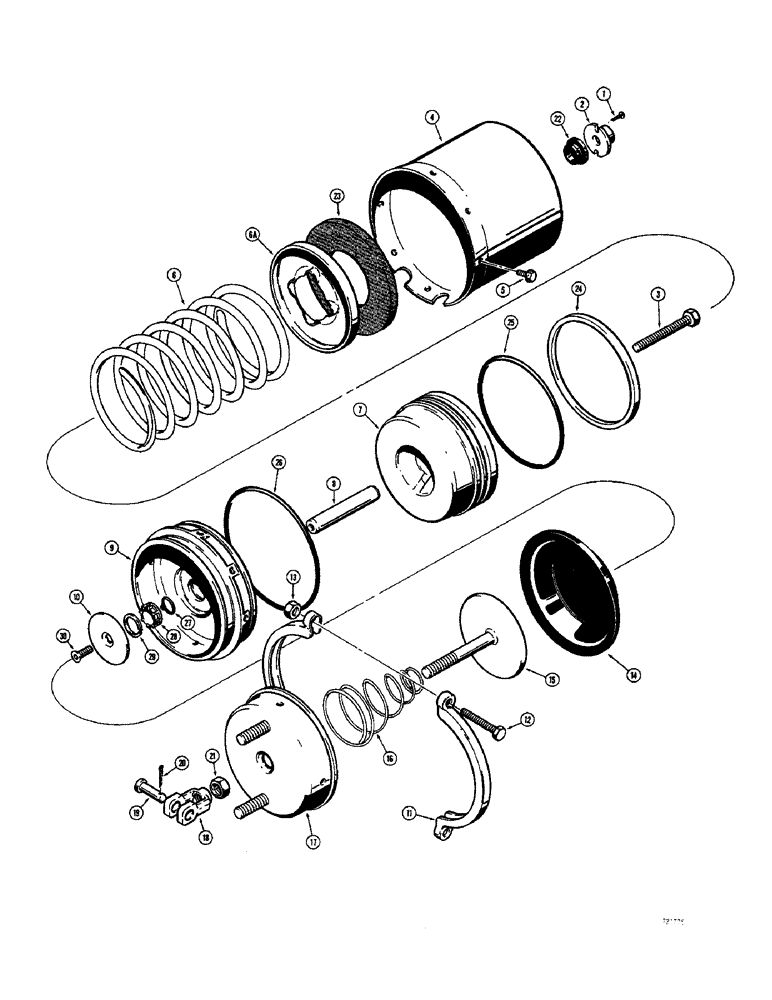

Запчасти Case 680CK (115A) - L54297 BRAKE CHAMBER (33) - BRAKES & CONTROLS

L54297

CHAMBER ASSEMBLY - brake, Includes: Ref. 1 - 31

2шт.

1

187-835

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping (#10 - 32 NC x 5/8")

2шт.

2

L35621

WASHER

- stop

1шт.

3

113-330

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

HHCS - 7/16" - 14 NC x 3-3/4" (Release bolt) plated

1шт.

4

L35624

CYLINDER - brake chamber

1шт.

5

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

8шт.

6

L35620

VALVE SPRING

SPRING - brake chamber

1шт.

6a

L35623

VALVE SPRING

LOCATOR - spring

1шт.

L35604

PISTON ASSY.

PISTON ASSEMBLY - brake, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON - brake chamber

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

9

L35625

COVER ASSY

BULKHEAD - brake chamber

1шт.

10

L35609

WASHER

FOLLOWER - piston rod

1шт.

L35605

CLAMP

ASSEMBLY - brake chamber, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CLAMP - brake chamber

2шт.

12

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

13

25-176

NUT,3/8"-24, G5, Hvy

- hex., heavy (3/8" - 24 NF)

2шт.

14

L35610

DIAPHRAGM

- brake chamber

1шт.

15

L35626

ROD

PUSH ROD - brake chamber

1шт.

16

L35615

VALVE SPRING

SPRING - return, push rod

1шт.

17

L35614

PLATE ASSY.

PLATE - non pressure

1шт.

L35613

YOKE

ASSEMBLY - brake connecting, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE - brake

1шт.

19

L33649

AXLE PIN

PIN - yoke

1шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex., jam (5/8" - 18 NF)

1шт.

L35612

KIT

- repair, brake chamber (Contains components to service two complete chambers), Includes: Ref. 22 - 31

1шт.

22

L35622

PLUG

- snap

2шт.

23

L35618

FILTER CARTRIDGE

FILTER - air

2шт.

24

L35606

RING

- wiper, felt

2шт.

25

T29460

O-RING,6.225" ID x 6.775" OD x 0.275"

RING - piston seal

2шт.

26

A40052

O-RING,0.139" Thk x 6.48" ID, -260, Cl 5, 75 Duro

SEAL - ring, bulkhead

2шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING - seal, rod

2шт.

28

L35608

BUSHING

- nylon, rod

2шт.

29

A36277

SNAP RING,1.125", Int, #112

nylon bushing 1.125", Int, #112

2шт.

30

164-99

SCREW - machine, hex. socket head (5/16" - 18 NC x 5/8")

2шт.

31

NSS

NOT SOLD SEPARAT

LUBRICANT - TR3, 8 oz. tube (Not shown)

1шт.
