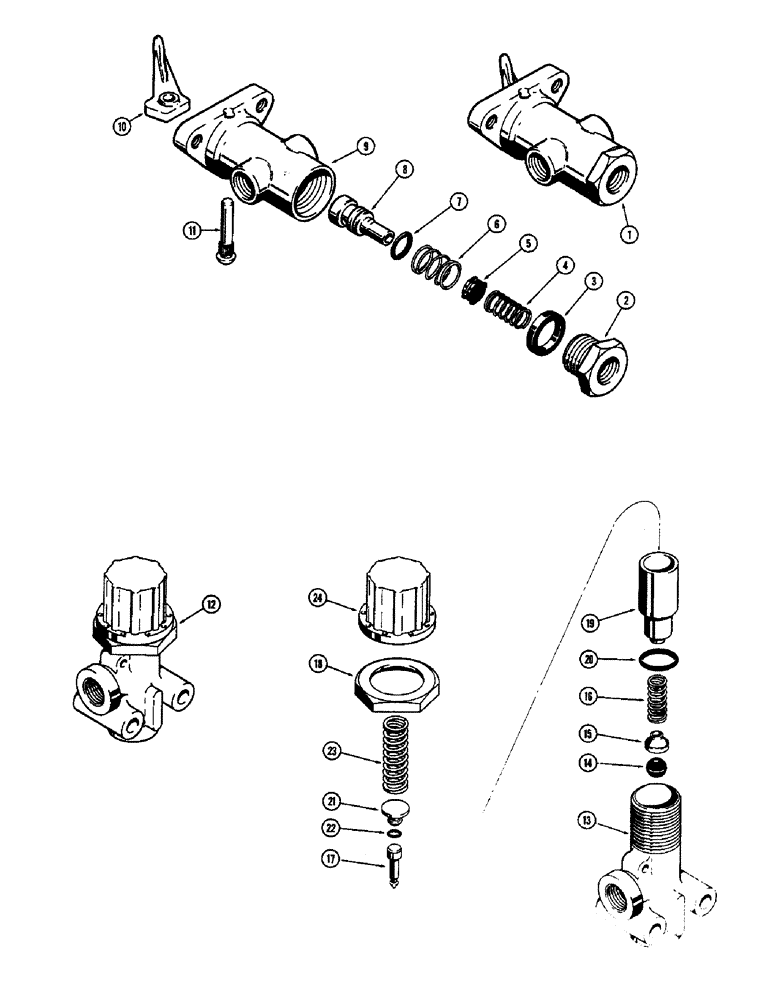

Запчасти Case 680CK (114) - BRAKE SYSTEM, L12630 CLUTCH CUTOUT VALVE, L13530 PRESSURE (33) - BRAKES & CONTROLS

1

L12630

LOCK VALVE

VALVE ASSEMBLY - clutch control, Includes: Ref. 2 - 11

1шт.

2

L31396

CYLINDER END CAP

CAP NUT - clutch control valve

1шт.

3

L31397

O-RING,0.549" ID x 0.103" Width

RING - seal, cap nut

1шт.

4

L31391

VALVE SPRING

SPRING - return, plunger

1шт.

5

L31394

LOCK VALVE

VALVE - control

1шт.

6

L31395

VALVE SPRING

SPRING - control valve

1шт.

7

L31390

O-RING,5/16" ID x 7/16" OD x 1/16"

SEAL - "o" ring, valve plunger

1шт.

8

L31389

PLUNGER

- valve, clutch control

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve, clutch control

1шт.

10

L31392

LEVER

- clutch control valve

1шт.

11

L31393

RIVET

- clutch control valve

1шт.

12

L13530

VALVE

ASSEMBLY - pressure protection, Includes: Ref. 13 - 24

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - valve, pressure protection

1шт.

14

L31802

VALVE

- inlet, pressure protection

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER - valve, pressure protection

1шт.

16

L31800

SPRING

- inlet valve, pressure protection

1шт.

17

NSS

NOT SOLD SEPARAT

STEM - valve, pressure protection

1шт.

18

131-414

LOCK NUT,PAL, 7/8"-14

PALNUT - hex., lock (7/8" - 14 NF), pressure protection valve

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON - valve, pressure protection

1шт.

20

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

SEAL - "o" ring, piston, pressure protection

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - valve, pressure protection

1шт.

22

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

SEAL - "o" ring, plug, pressure protection

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - pressure regulating, pressure protection

1шт.

24

L33316

CAP

END CAP - adjusting, pressure protection

1шт.
