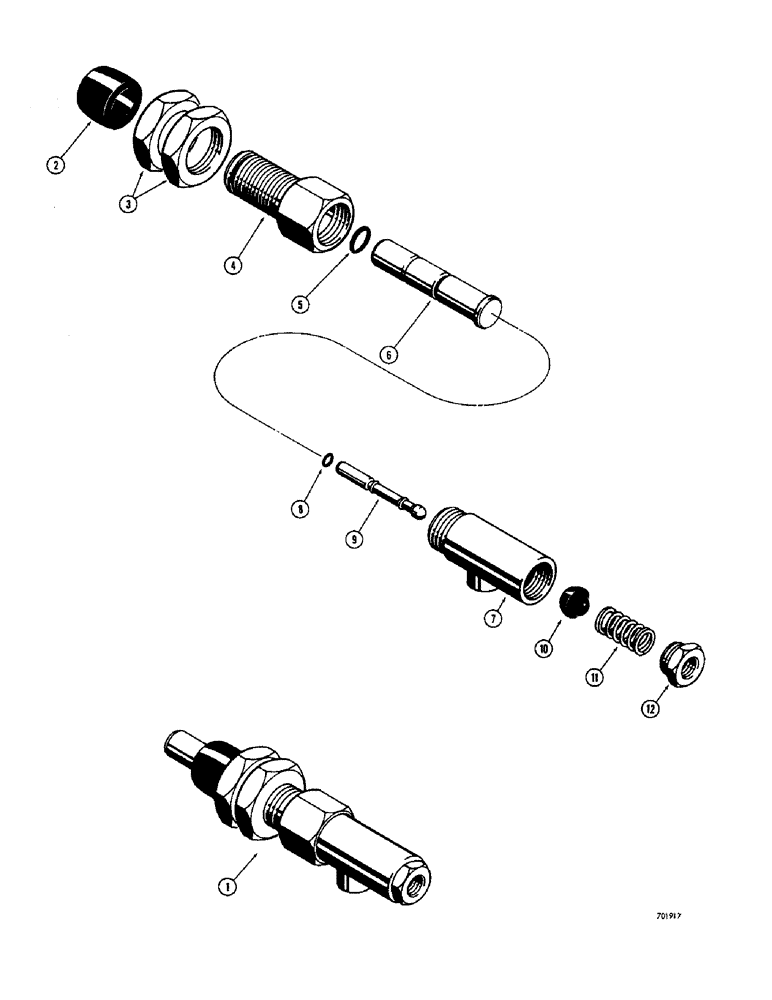

Запчасти Case 680CK (113A) - BRAKE SYSTEM, L14818 CLUTCH CUTOUT VALVE (33) - BRAKES & CONTROLS

1

L14818

VALVE

- clutch cut-out, Includes: Ref. 2 - 12

1шт.

2

L32338

BOOT

- valve, brake control

1шт.

3

129-574

NUT - hex. (3/4" - 16 NC)

2шт.

4

L32337

ADAPTER - valve, brake control

1шт.

5

L32336

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - "o" ring, plunger (Large)

1шт.

6

L32335

PLUNGER

- valve, brake control

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve, brake control

1шт.

8

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

SEAL - "o" ring, stem (Small)

1шт.

9

L32332

STEM

- valve, brake control

1шт.

10

L31354

VALVE

POPPET - air intake

1шт.

11

L32333

VALVE SPRING

SPRING - valve, brake control

1шт.

12

L32334

ADAPTER - air intake

1шт.
