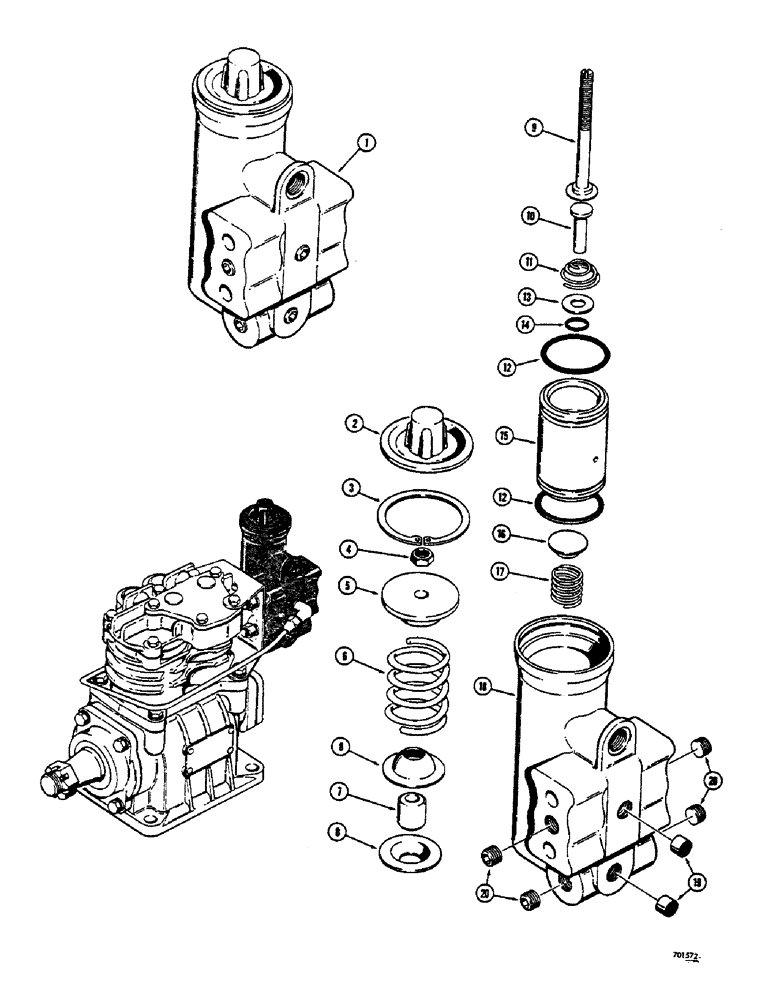

Запчасти Case 680CK (110) - BRAKE SYSTEM, AIR COMPRESSOR GOVERNOR (33) - BRAKES & CONTROLS

1

L32563

GOVERNOR

- air compressor, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - top, governor

1шт.

Included in L31808 governor repair kit.

1шт.

3

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, 1.50", Int, #150

1шт.

L31533

WASHER

ADJUSTING ASSEMBLY - governor, Includes: Ref. 4 - 9

1шт.

4

25-104

NUT,1/4"-20, G5

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - tension

1шт.

7

NSS

NOT SOLD SEPARAT

GUIDE - adjusting spring

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

2шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special, adjusting

1шт.

10

L31532

STEM

- exhaust

1шт.

11

L31531

VALVE SPRING

SPRING - stem, exhaust

1шт.

12

L31499

O-RING,1" ID x 40546" OD x 3"

SEAL - "o" ring, piston

2шт.

Included in L31808 governor repair kit.

1шт.

L31528

PLUNGER

PISTON ASSEMBLY - governor, Includes: Ref. 13 - 15

1шт.

13

L31541

WASHER

- special

1шт.

14

L31540

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

SEAL - "o" ring, piston

1шт.

Included in L31808 governor repair kit.

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - governor

1шт.

16

L31529

LOCK VALVE

VALVE - inlet and exhaust

1шт.

Included in L31808 governor repair kit.

1шт.

17

L31530

SPRING

- valve, inlet and exhaust

1шт.

Included in L31808 governor repair kit.

1шт.

18

L31527

BODY

- governor

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - inlet and outlet ports

2шт.

Included in L31808 governor repair kit.

1шт.

20

221-1849

PLUG

- pipe, hex. socket head (1/8" NPT)

4шт.
