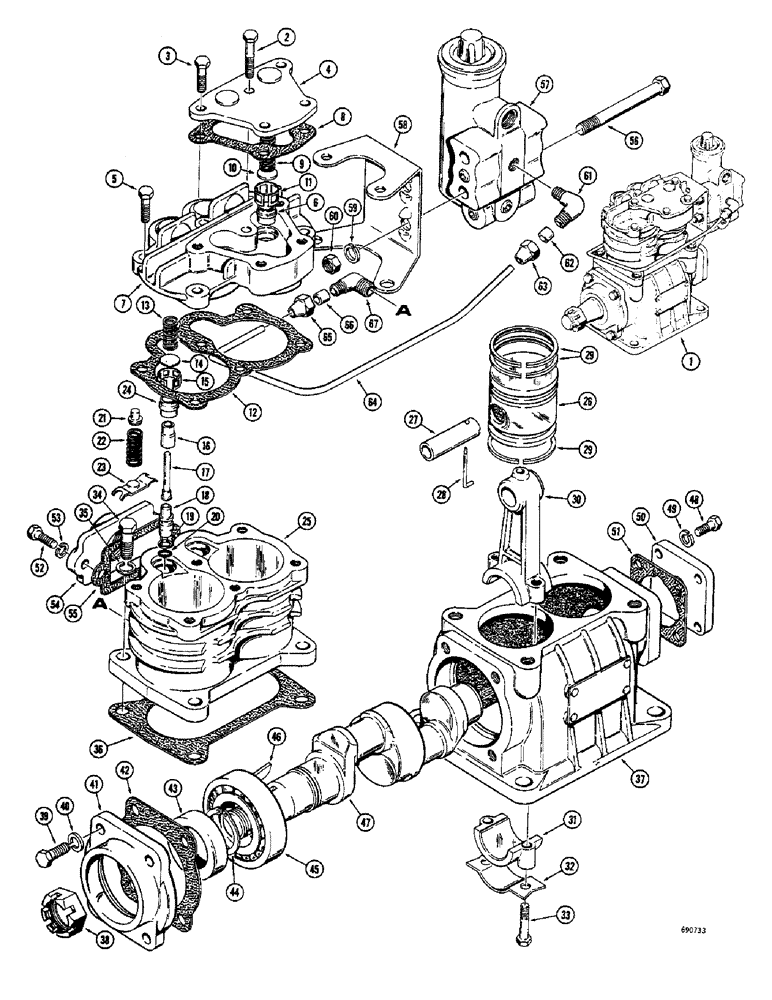

Запчасти Case 680CK (106) - BRAKE SYSTEM, L14814 AIR COMPRESSOR (33) - BRAKES & CONTROLS

1

L14814

COMPRESSOR

- air, Includes: Ref. 2 - 42

1шт.

2

L32588

BOLT,1/4" x 1 1/2"

- special, long (Cover to head assembly)

1шт.

3

L32561

BOLT - special, short (Cover to head assembly)

4шт.

4

L32560

COVER - head

1шт.

5

L31458

SCREW,Hex, 1/4" - 20 x 5/8"

BOLT - special (Head assembly to cylinder block)

5шт.

L32554

CYLINDER BLOCK

HEAD ASSEMBLY - cylinder,, Includes: Ref. 6 and 7

1шт.

6

L32556

SEAT

- dicharge valve

2шт.

7

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

L32590

KIT

- repair, cylinder head and block, Includes: Ref. 8 - 23

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET - cover

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - valve

2шт.

10

NSS

NOT SOLD SEPARAT

VALVE - discharge

2шт.

11

NSS

NOT SOLD SEPARAT

GUIDE - valve

2шт.

12

L32562

GASKET

- head assembly to cylinder block

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - valve, inlet

2шт.

14

NSS

NOT SOLD SEPARAT

VALVE - inlet

2шт.

15

NSS

NOT SOLD SEPARAT

GUIDE - inlet valve

2шт.

L32591

KIT

- unloader, air compressor, Includes: Ref. 16 - 23

1шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - plunger

2шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER - unloader

2шт.

18

NSS

NOT SOLD SEPARAT

PISTON - unloader

2шт.

19

L31407

O-RING

- backup

2шт.

20

L31406

BACK-UP RING

SEAL - "o" ring

2шт.

21

L31412

SEAT

- spring

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - unloader

1шт.

23

NSS

NOT SOLD SEPARAT

SADDLE - spring

1шт.

L32517

CYLINDER

BLOCK ASSEMBLY - cylinder, Includes: Ref. 24 and 25

1шт.

24

L32519

SEAT

- inlet valve

2шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

L32570

PISTON

AND WRIST PIN ASSEMBLY - standard, Includes: Ref. 26 and 27

2шт.

L32571

PISTON

AND WRIST PIN ASSEMBLY - .010" oversized, Includes: Ref. 26 and 27

2шт.

L32572

PIN

PISTON AND WRIST PIN ASSEMBLY - .020" oversized, Includes: Ref. 26 and 27

2шт.

L32573

PISTON

AND WRIST PIN ASSEMBLY - .030" oversized, Includes: Ref. 26 and 27

2шт.

26

NSS

NOT SOLD SEPARAT

PISTON - air compressor

1шт.

27

NSS

NOT SOLD SEPARAT

WRIST PIN - piston

1шт.

28

L32574

ELECTRICAL WIRE

LOCK WIRE - wrist pin

2шт.

L32580

RING

SET - piston (Standard) color - steel, Includes: Ref. 29

1шт.

L32581

RING

SET - piston (.010" oversized) color - yellow, Includes: Ref. 29

1шт.

L32582

RING

SET - piston (.020" oversized) color - blue, Includes: Ref. 29

1шт.

L32583

RING

SET - piston (.030" oversized) color - green, Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

RING - piston

6шт.

L32569

ROD

ASSEMBLY - connecting, Includes: Ref. 30 - 33

2шт.

30

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

31

NSS

NOT SOLD SEPARAT

CAP - connecting rod

1шт.

32

L32579

STRAP - locking

1шт.

33

L32589

BOLT (SPREADER)

BOLT - special

2шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

192-110

LOCK WASHER,5/16"

WASHER - light sect. lock () 5/16"

4шт.

36

L32516

GASKET

- cylinder, Serial Range: block-crankcase

1шт.

37

L32515

CRANKCASE

- air compressor

1шт.

38

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex., slotted (3/4" - 16 NF)

1шт.

39

L31458

SCREW,Hex, 1/4" - 20 x 5/8"

BOLT - special (Front cover mounting)

4шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

41

L32529

COVER ASSY

COVER - front

1шт.

42

L32528

GASKET

- front cover

1шт.

43

L32530

OIL SEAL

SEAL - oil, front crankcase

1шт.

44

A8218

SNAP RING,#118, Ext

Ring, Snap, #118, Ext

1шт.

45

L32527

BALL BEARING

BEARING - ball

1шт.

46

126-213

WOODRUFF KEY,Hi-Pro, 7/8" Dia x 3/16" x 15/16"

KEY - Woodruff, special

1шт.

47

L32526

CRANKSHAFT

- air compressor

1шт.

48

163-11

SCREW,Hex, #10 - 24 x 9/16"

BOLT - hex., special

4шт.

49

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

50

NLS

NO LONGER SERVICED

COVER - rear, crackcase

1шт.

51

L32531

GASKET

- rear cover

1шт.

52

L31458

SCREW,Hex, 1/4" - 20 x 5/8"

BOLT - special, inlet adapter mounting

2шт.

53

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

54

L32586

PLATE

ADAPTER - special, inlet

1шт.

55

L32585

GASKET

- inlet adapter

1шт.

58

113-142

BOLT,Hex, 5/16" - 18 x 2-7/8", Gr 5

2шт.

57

L32563

GOVERNOR

ASSEMBLY - air compressor, Parts list Figure 110

1шт.

58

L32565

BRACKET

- governor mounting

1шт.

59

192-110

LOCK WASHER,5/16"

WASHER - light section lock () 5/16"

2шт.

60

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

222-617

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT, Comp

ASSEMBLY - flex tube (1/4" tube) at governor, Includes: Ref. 61 - 63

1шт.

61

NSS

NOT SOLD SEPARAT

ELBOW - flex tube (1/4" tube) at governor

1шт.

62

222-102

SLEEVE,1/4" Tube

1шт.

63

87017024

TUBE NUT,1/2"-24

NUT - flex tube (1/4" tube)

1шт.

64

L32587

TUBE

- copper (1/4" dia.), Serial Range: compressor-governor

1шт.

222-618

ELBOW,90 Degree, 3/8"-24 x 1/4" NPT, Comp

ASSEMBLY - flex tube (1/4" tube) at compressor, Includes: Ref. 65 - 67

1шт.

65

87017024

TUBE NUT,1/2"-24

NUT - flex tube (1/4" tube)

1шт.

66

222-102

SLEEVE,1/4" Tube

1шт.

67

NSS

NOT SOLD SEPARAT

ELBOW - flex tube (1/4" tube) at compressor

1шт.
