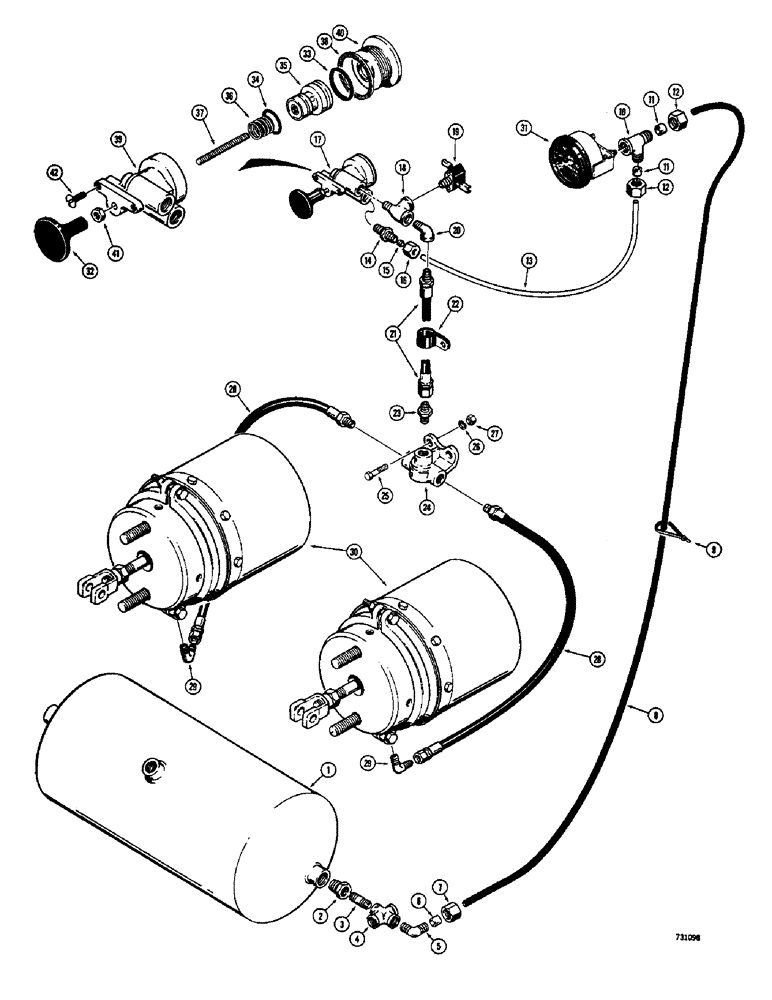

Запчасти Case 680CK (105A) - BRAKE SYSTEM, PARKING BRAKE CONTROLS AND PRESSURE GAUGE (33) - BRAKES & CONTROLS

1

L46446

RESERVOIR - air, brake

1шт.

2

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducing (1/2" NPT x 1/4" NPT)

1шт.

3

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - pipe (1/4" NPT x 1" long)

1шт.

4

221-502

CROSS

- hydraulic (1/4" NPT)

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - male, 90 degrees, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

ELBOW - male

1шт.

6

222-5047

SLEEVE,1/4" Tube

- elbow

1шт.

7

222-5060

NUT,1/2"-20

NUT - elbow

1шт.

8

L55665

TUBE,0.25" OD x 84" L

- reservoir to pressure gauge

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie

3шт.

222-2550

TEE

ASSEMBLY - flex tube, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

TEE - flex tube

1шт.

11

222-5047

SLEEVE,1/4" Tube

- flex tube

2шт.

12

222-5060

NUT,1/2"-20

NUT - flex tube

2шт.

13

L54433

TUBE,0.25" OD x 12" L

- tee to brake valve

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

15

222-5047

SLEEVE,1/4" Tube

- connector

1шт.

16

222-5060

NUT,1/2"-20

NUT - connector

1шт.

17

L54751

VALVE

- control, parking brake (Parts list below)

1шт.

18

221-1691

TEE,Street, 1/4" NPT

- street (1/4" NPT)

1шт.

19

L48480

SWITCH

- buzzer

1шт.

20

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

21

L54434

HOSE ASSY.

HOSE - control valve to quick release valve (51-5/8" long)

1шт.

22

49774

CLAMP

- hose

1шт.

23

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

24

L54617

VALVE

- quick release

1шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

28

L54435

HOSE,0.25" ID x 27.00", SAE 30R2 Type 1

ASSY, 0.25" ID x 27.00", SAE 30R2, Type 1, Quick Release Valve to Brake Chambers

2шт.

29

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

2шт.

30

L54297

CHAMBER - brake, Parts list Figure 115A

2шт.

31

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

L54751

VALVE

- control, parking brake, Includes: Ref. 32 - 42

1шт.

32

L35707

KNOB - valve control, parking break

1шт.

L35709

KIT - repair, shuttle (Major), Includes: Ref. 33 - 37, parking break valve

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - "o" ring, large, parking break valve

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - "o" ring, small, parking break valve

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

35

NSS

NOT SOLD SEPARAT

SHUTTLE - valve, parking break valve

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - return, parking break valve

1шт.

37

NSS

NOT SOLD SEPARAT

SHAFT - valve control, parking break valve

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - end cap, parking break valve

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - control valve, parking break valve

1шт.

40

NSS

NOT SOLD SEPARAT

CAP - end, parking break valve

1шт.

41

NSS

NOT SOLD SEPARAT

NUT - lock, knob, parking break valve

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - valve mounting, parking break valve

2шт.

L35708

INSULATOR BLOCK

KIT - repair, minor, Includes: Ref. 33, 34 and 38, parking break valve

1шт.
