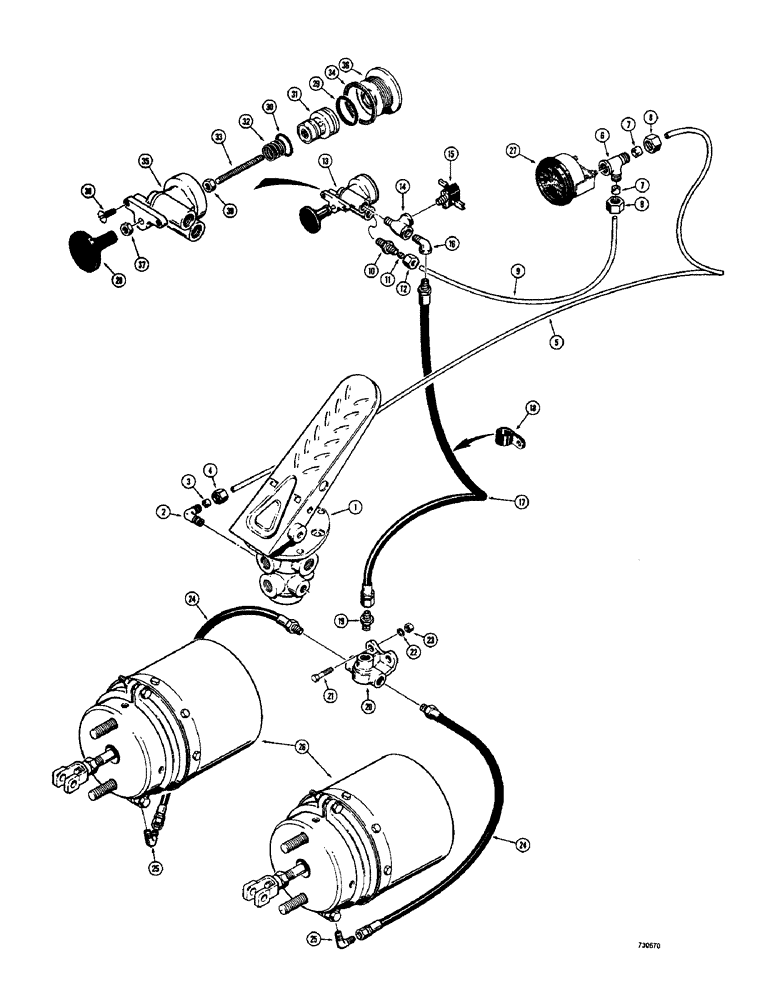

Запчасти Case 680CK (104) - BRAKE SYSTEM, PARKING BRAKE CONTROLS, (EARLY PRODUCTION) (33) - BRAKES & CONTROLS

1

L53601

VALVE

TREADLE AND VALVE ASSEMBLY - R.H brake, Parts list Figure 112

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - male, 90 degrees, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

ELBOW - male

1шт.

3

222-5047

SLEEVE,1/4" Tube

- elbow

1шт.

4

222-5060

NUT,1/2"-20

NUT - elbow

1шт.

5

L54111

TUBE,0.25" OD x 45" L

- treadle to tee

1шт.

222-2550

TEE

ASSEMBLY - flex tube, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

TEE - flex tube

1шт.

7

222-5047

SLEEVE,1/4" Tube

- flex tube

2шт.

8

222-5060

NUT,1/2"-20

NUT - flex tube

2шт.

9

L54433

TUBE,0.25" OD x 12" L

- tee to brake valve

1шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

11

222-5047

SLEEVE,1/4" Tube

- connector

1шт.

12

222-5060

NUT,1/2"-20

NUT - connector

1шт.

13

L54751

VALVE

- control, parking brake (Parts list below)

1шт.

14

221-1691

TEE,Street, 1/4" NPT

- street (1/4" NPT)

1шт.

15

L48480

SWITCH

- buzzer

1шт.

16

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees (1/4" NPT)

1шт.

17

L54434

HOSE ASSY.

HOSE - control valve to quick release valve (51-5/8" long)

1шт.

18

49774

CLAMP

- hose

1шт.

19

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

20

L54617

VALVE

- quick release

1шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

24

L54435

HOSE,0.25" ID x 27.00", SAE 30R2 Type 1

ASSY, 0.25" ID x 27.00", SAE 30R2, Type 1, Quick Release Valve to Brake Chambers

2шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

2шт.

26

L54297

CHAMBER - brake, Parts list Figure 115A

2шт.

27

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

L54751

VALVE

- control, parking brake, Includes: Ref. 28 - 38

1шт.

28

L35707

KNOB - valve control

1шт.

L35709

KIT - repair, shuttle (Major), Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - "o" ring, large

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - "o" ring, small

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

31

NSS

NOT SOLD SEPARAT

SHUTTLE - valve

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

33

NSS

NOT SOLD SEPARAT

SHAFT - valve control

1шт.

34

NSS

NOT SOLD SEPARAT

GASKET - end cap

1шт.

Part of Minor Repair Kit P/N L35708, parking break valve

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

36

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

37

NSS

NOT SOLD SEPARAT

NUT - lock, knob

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - valve mounting

2шт.

L35708

INSULATOR BLOCK

KIT - repair, minor, Includes: Ref. 29, 30 and 34

1шт.
