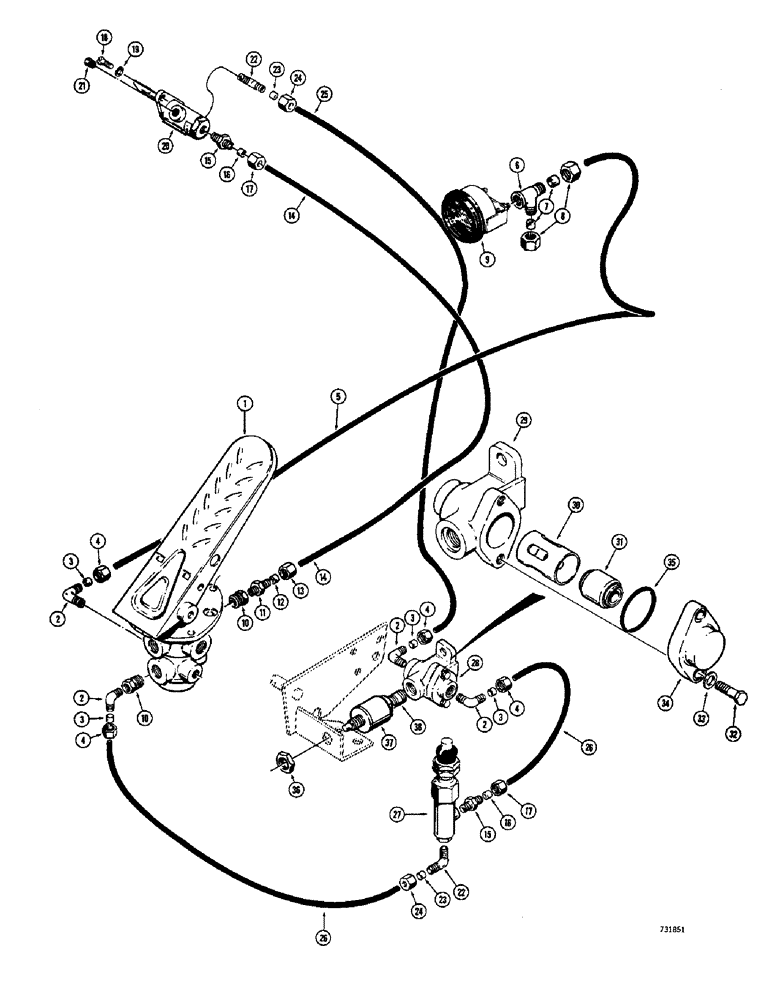

Запчасти Case 680CK (103C) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT & PRESSURE GAUGE (33) - BRAKES & CONTROLS

1

L53601

VALVE

TREADLE AND VALVE ASSEMBLY - R.H. brake, Parts list Figure 112

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - male, 90 degrees, Includes: Ref. 2 - 4

4шт.

2

NSS

NOT SOLD SEPARAT

ELBOW - male

1шт.

3

222-5047

SLEEVE,1/4" Tube

- elbow

1шт.

4

222-5060

NUT,1/2"-20

NUT - elbow

1шт.

5

L54111

TUBE,0.25" OD x 45" L

- treadle to pressure gauge

1шт.

222-2550

TEE

ASSEMBLY - flex type, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

TEE - flex. type

1шт.

7

222-5047

SLEEVE,1/4" Tube

- flex. tee

2шт.

8

222-5060

NUT,1/2"-20

NUT - flex. tee

2шт.

9

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

10

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer (1/2" NPT x 1/4" NPT)

2шт.

222-5003

CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

12

222-5047

SLEEVE,1/4" Tube

- connector

1шт.

13

222-5060

NUT,1/2"-20

NUT - connector

1шт.

14

L54114

TUBE - treadle to clutch cut out valve 0.25" OD x 38" L

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, Includes: Ref. 15 - 17

2шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR - straight

1шт.

16

222-5047

SLEEVE,1/4" Tube

- connector

1шт.

17

222-5060

NUT,1/2"-20

NUT - connector

1шт.

18

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2")

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

L12630

LOCK VALVE

VALVE - clutch cut-out, manual, Parts list Figure 114

1шт.

21

221-1849

PLUG

- pipe, socket head (1/8" NPT)

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - 90 degrees male, Includes: Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

ELBOW - male

1шт.

23

222-5047

SLEEVE,1/4" Tube

- elbow

1шт.

24

222-5060

NUT,1/2"-20

NUT - elbow

1шт.

25

L54114

TUBE - manual cut-out valve to cylinder 0.25" OD x 38" L

1шт.

26

L55262

TUBE,0.25" OD x 16" L

- treadle to clutch cut-out valve and clutch cylinder

2шт.

27

L14818

VALVE

- clutch cut-out, Parts list Figure 113A

1шт.

28

L55059

LOCK VALVE

VALVE - double check, Includes: Ref. 29 - 35

1шт.

29

L35711

BODY

- valve

1шт.

30

L31497

GUIDE

- shuttle

1шт.

31

L31498

ROD

SHUTTLE - check

1шт.

32

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

33

195-515

WASHER,#12

- plain (1/4") zinc plated

2шт.

34

L33702

COVER

CAP - valve

1шт.

35

L31499

O-RING,1" ID x 40546" OD x 3"

SEAL - "o" ring, cap to body

1шт.

36

L54140

NUT

- jam, special

1шт.

37

L12627

CYLINDER

- clutch cut-out

1шт.

38

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - pipe (1/4" NPT x 1")

1шт.
