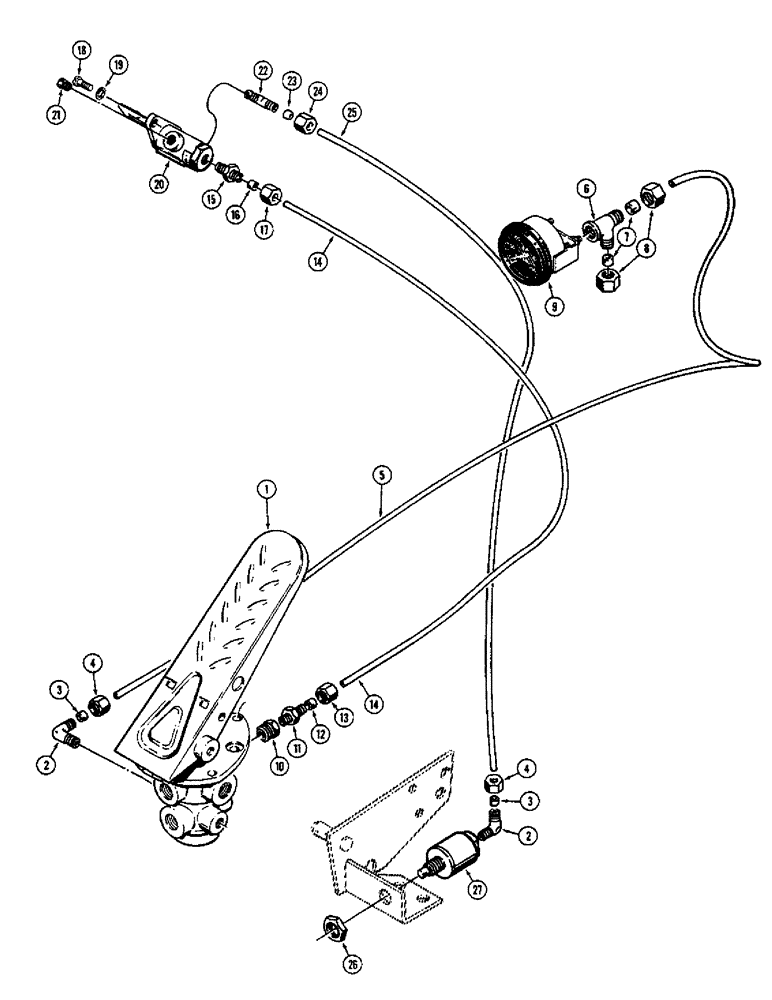

Запчасти Case 680CK (102) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT & PRESSURE GAUGE (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
L53601
VALVE
TREADLE AND VALVE ASSEMBLY - R.H. brake, Parts list Figure 112
1шт.
221-5024
ELBOW ASSEMBLY - male, 90 degrees, Includes: Ref. 2 - 4
2шт.
2
NSS
NOT SOLD SEPARAT
ELBOW - male
1шт.
3
222-5047
SLEEVE,1/4" Tube
- elbow
1шт.
4
222-5060
NUT,1/2"-20
NUT - elbow
1шт.
5
L54111
TUBE,0.25" OD x 45" L
- treadle to pressure gauge
1шт.
222-2550
TEE
ASSEMBLY - flex type, Inlcudes: Ref. 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
TEE - flex type
1шт.
7
222-5047
SLEEVE,1/4" Tube
- flex tee
2шт.
8
222-5060
NUT,1/2"-20
NUT - flex. tee
2шт.
9
L12141
ELECTRICAL GAUGE
GAUGE - air pressure
1шт.
10
221-1055
REDUCER,Hex, 1/2" x 1/4" NPT
BUSHING - reducer (1/2" NPT x 1/4" NPT)
1шт.
222-5003
CONNECTOR, ELEC,3/8"-24 x 1/4" NPT, Hi-seal
CONNECTOR ASSEMBLY - straight, Inlcudes: Ref. 11 - 13
1шт.
11
NSS
NOT SOLD SEPARAT
CONNECTOR - straight
1шт.
12
222-5047
SLEEVE,1/4" Tube
- connector
1шт.
13
222-5060
NUT,1/2"-20
NUT - connector
1шт.
14
L54114
TUBE - treadle to clutch cut out valve 0.25" OD x 38" L
1шт.
222-5002
HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal
CONNECTOR ASSEMBLY - straight, Inlcudes: Ref. 15 - 17
1шт.
15
NSS
NOT SOLD SEPARAT
CONNECTOR - straight
1шт.
16
222-5047
SLEEVE,1/4" Tube
- connector
1шт.
17
222-5060
NUT,1/2"-20
NUT - connector
1шт.
18
173-97
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
- machine, round head (#10 - 24 NC x 1/2")
2шт.
19
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
20
L12630
LOCK VALVE
VALVE - clutch cut-out, Parts list Figure 114
1шт.
21
221-1849
PLUG
- pipe, socket head (1/8" NPT)
1шт.
221-5023
ELBOW ASSEMBLY - 90 degrees male, Inlcudes: Ref. 22 - 24
1шт.
22
NSS
NOT SOLD SEPARAT
ELBOW - male
1шт.
23
222-5047
SLEEVE,1/4" Tube
- elbow
1шт.
24
222-5060
NUT,1/2"-20
NUT - elbow
1шт.
25
L54114
TUBE - valve to cylinder 0.25" OD x 38" L
1шт.
26
L54140
NUT
- jam, special
1шт.
27
L12627
CYLINDER
- clutch cut-out
1шт.
Выбрано товаров: 32
