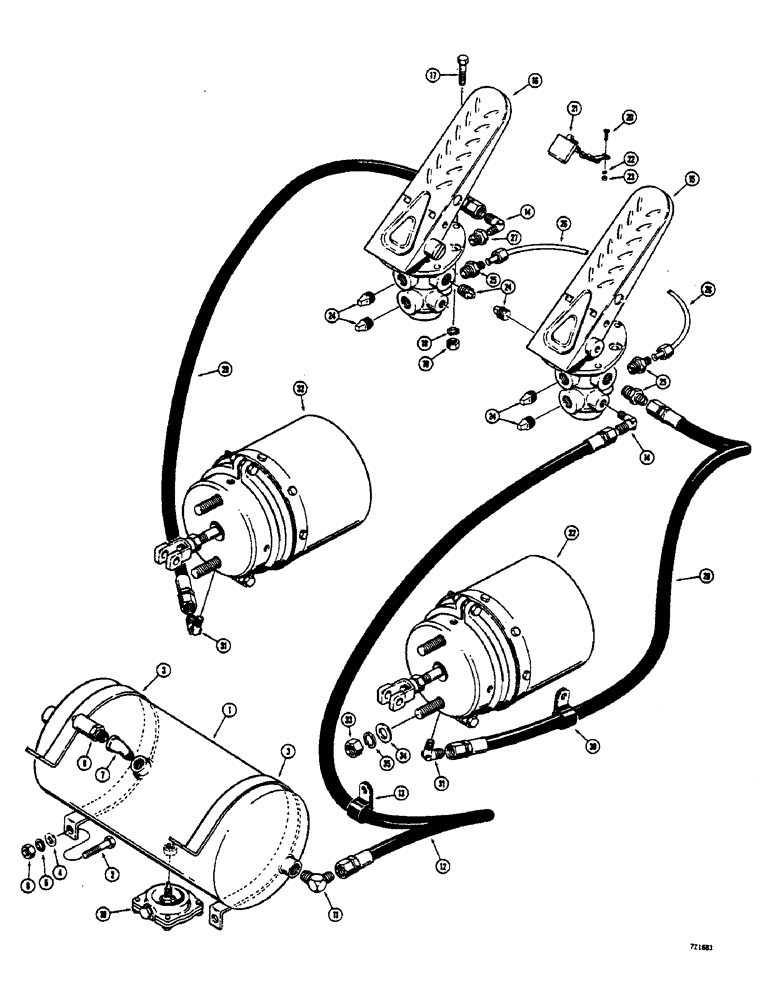

Запчасти Case 680CK (100) - BRAKE SYSTEM, RESERVOIR TO BRAKE TREADLES AND BRAKE CHAMBERS ( EARLY PRODUCTION) (33) - BRAKES & CONTROLS

1

L46446

RESERVOIR - air

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8' - 16 NC x 1-1/2"

4шт.

3

L46430

STRAP - reservoir mounting

2шт.

4

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

7

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

8

L48992

VALVE,1/4"

- safety, reservoir

1шт.

10

L51573

VALVE

- moisture ejection, Parts list Figure 115C

1шт.

11

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- male, 90 degrees

1шт.

12

L53610

HOSE ASSY.

HOSE - reservoir to R.H. brake treadle (50" long)

1шт.

13

T50103

CLAMP

- hose

1шт.

14

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

2шт.

15

L53601

VALVE

TREADLE AND VALVE ASSEMBLY - R.H. brake, Parts list Figure 112

1шт.

16

L53600

TREADLE AND VALVE ASSEMBLY - L.H. brake, Parts list Figure 112

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

18

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

6шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

6шт.

20

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- machine, round head (#8 - 32 NC x 1/2")

1шт.

21

L53599

LOCK - brake, R.H. and L.H. treadle

1шт.

22

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

23

129-16

NUT,#8-32

1шт.

24

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

6шт.

25

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

3шт.

26

L53530

TUBE - crossover, R.H. to L.H. brake treadle 0.375" OD x 5, 4.75" L

1шт.

27

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer (1/2" NPT x 1/4" NPT)

1шт.

28

L53613

HOSE

- R.H. treadle to R.H. rear brake chamber (72" long)

1шт.

29

L53612

HOSE

- L.H. treadle to L.H. rear brake chamer (60" long)

1шт.

30

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

31

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

2шт.

32

L54297

CHAMBER ASSEMBLY - brake control, Parts list Figure 115A

2шт.

33

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

34

95-10

WASHER,5/8"

- plain () 5/8"

4шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
