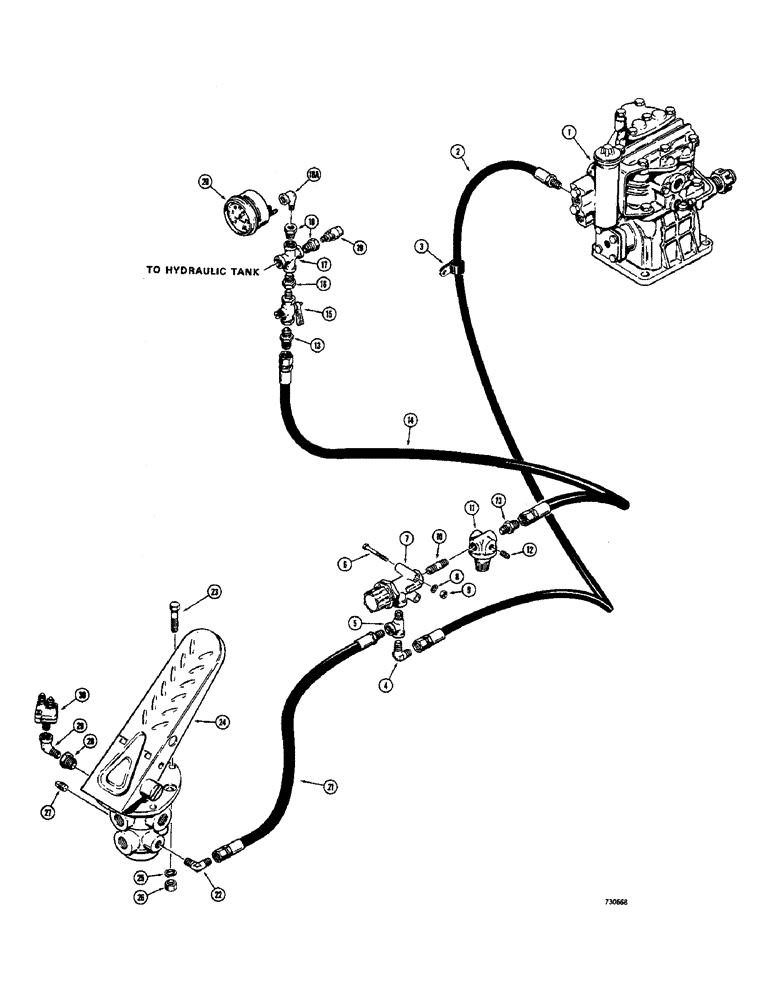

Запчасти Case 680CK (098) - BRAKE SYSTEM, COMPRESSOR TO PRESSURE PROTECTION VALVES AND TREADLE (33) - BRAKES & CONTROLS

1

L14814

COMPRESSOR

- air (Parts list fig. 106 and 108)

1шт.

2

L53609

HOSE ASSY.

HOSE - governor to pressure protection valve (40" long)

1шт.

3

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- governor hose

1шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

5

221-1691

TEE,Street, 1/4" NPT

- street (1/4" NPT)

1шт.

6

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

7

L13530

VALVE

- pressure protection, Parts list Figure 114

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - pipe (1/4" NPT x 1" long)

1шт.

11

L53292

VALVE

- pressure reduction

1шт.

12

221-1849

PLUG

- hex. socket head (1/8" NPT)

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

2шт.

14

L53614

HOSE ASSY.

HOSE - reduction valve to shut off valve (16" long)

1шт.

15

L53739

VALVE

- shut off, air

1шт.

16

221-1053

BUSHING

- reducer (3/8" NPT x 1/4" NPT)

1шт.

17

221-1503

CROSS - pipe (3/8" NPT)

1шт.

18

221-1052

PLUG

BUSHING - reducer (3/8" NPT x 1/8" NPT)

2шт.

18a

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

19

D38663

VENT

VALVE - relief, pressure

1шт.

20

L13271

ELECTRICAL GAUGE

GAUGE - air pressure, hydraulic tank

1шт.

21

L53615

HOSE ASSY.

HOSE - pressure protection valve to treadle (21" long)

1шт.

22

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degrees

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

24

L53600

TREADLE AND VALVE ASSEMBLY - L.H. brake, Parts list Figure 112

1шт.

25

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

3шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

27

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

28

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer (1/2" NPT x 1/4" NPT)

1шт.

29

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

30

L47989

SWITCH

- stop light

1шт.
