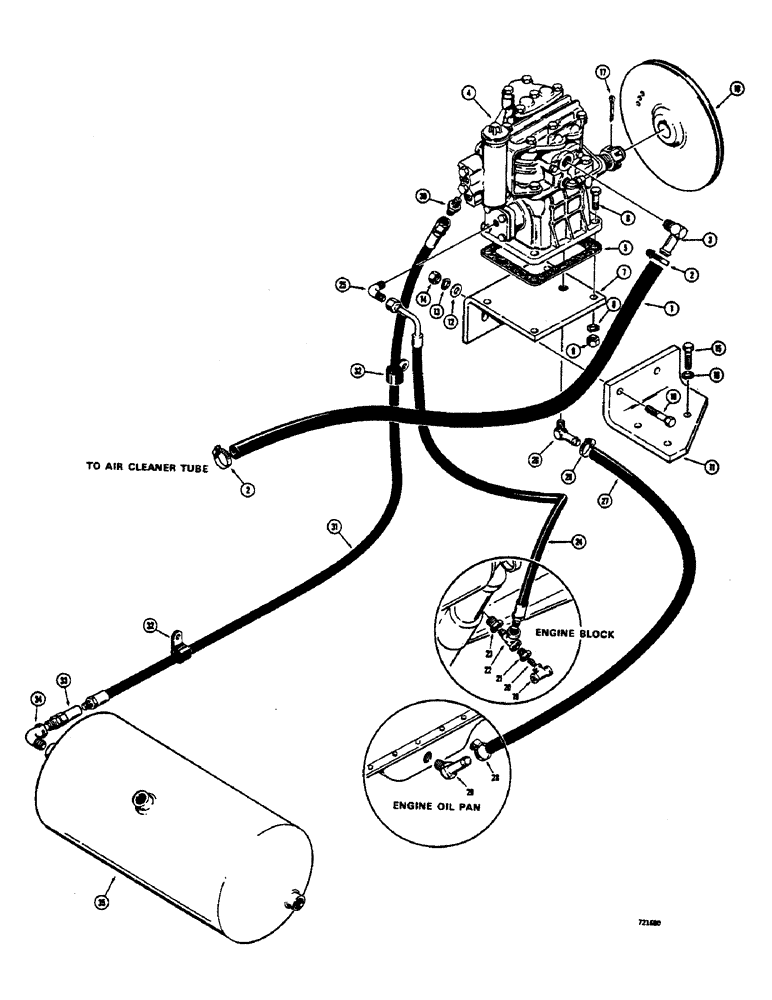

Запчасти Case 680CK (096) - BRAKE SYSTEM, AIR COMPRESSOR AND RESERVOIR, (EARLY (33) - BRAKES & CONTROLS

1

L53607

HOSE,127.00 mm ID x 762.00 mm, SAE 30R2 Type 3

15.9 mm ID x 762.00 mm, SAE 30R2, Type 3, Intake, Air Cleaner to Compressor

1шт.

2

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

3

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM - hose, 90 degrees (At compressor)

1шт.

4

L14814

COMPRESSOR

- air (Parts list pages 106 and 108)

1шт.

5

L10354

GASKET

- air, Serial Range: compressor-bracket

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

7

L53927

BRACKET - compressor mounting, upper

1шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

11

L53925

BRACKET - compressor mounting, lower

1шт.

12

95-8

WASHER,1/2"

- plain 1/2"

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

3шт.

17

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

18

L53258

PULLEY - compressor drive

1шт.

19

221-1421

TEE,Pipe, 1/8" NPT

- pipe (1/8" NPT)

1шт.

20

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - pipe (1/8" NPT x 3/4" long)

1шт.

21

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer (1/8" NPT x 1/4" NPT)

1шт.

22

221-691

TEE

- street (1/4" NPT)

1шт.

23

221-1053

BUSHING

- reducer (3/8" NPT x 1/4" NPT)

1шт.

24

L53655

HOSE ASSY.

HOSE - compressor lubrication (28" long)

1шт.

25

218-281

ELBOW - male, 90 degrees

1шт.

26

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

STEM - hose, 90 degrees (At compressor base)

1шт.

27

L47486

HOSE - oil return, compressor

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

29

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

STEM - hose, 45 degrees (At engine block)

1шт.

30

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

31

L53611

HOSE ASSY.

HOSE - compressor to resevoir (108" long)

1шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- compressor hose

2шт.

33

L12586

VALVE

- single check

1шт.

34

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degrees (1/2" NPT)

1шт.

35

L46446

RESERVOIR - air

1шт.
