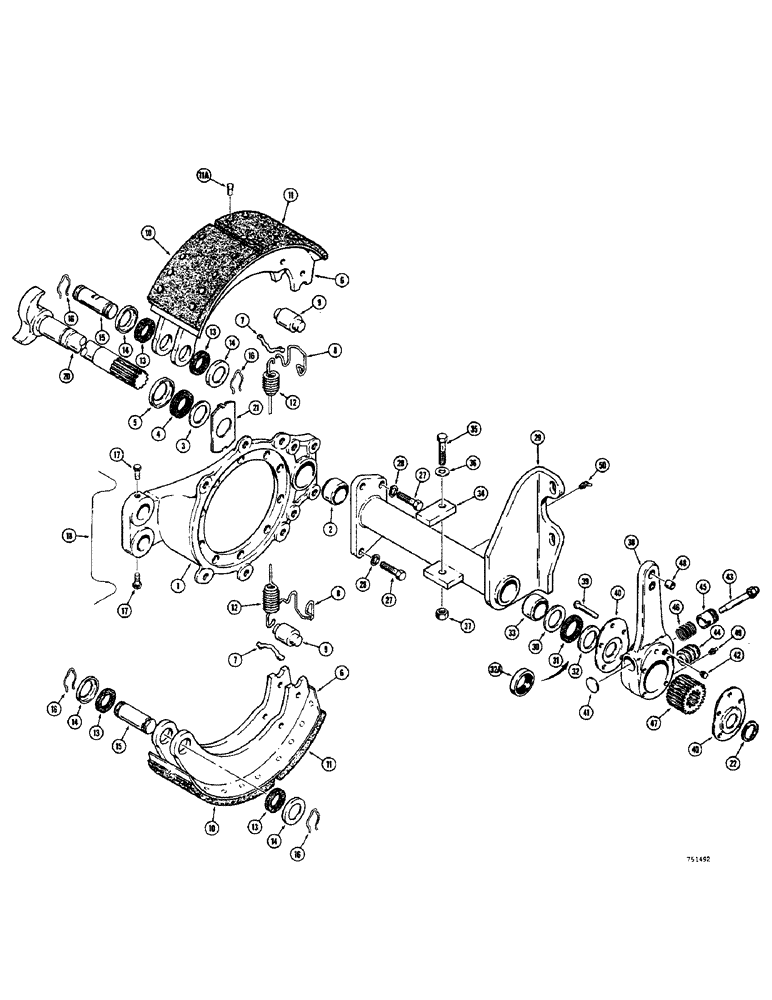

Запчасти Case 680CK (092) - L54078 REAR AXLE, REAR BRAKES, LININGS AND SLACK ADJUSTERS (33) - BRAKES & CONTROLS

L54078

AXLE ASSEMBLY - complete, rear (PR65 - PX - 1/17.44-1), Inlcudes: Ref. 1 - 48

1шт.

Used as original equipment on units before tractor SN. 9111262 and also on 9111275, 9111281, 9111287, 9111290 thru 9111292, 9111294, 9111328, 9111370, 9111373, 9111374 and 9111400. Check axle SN. plate to be sure of Rockwell part no. before ordering component parts.

1шт.

L35561

DIFF. SPIDER

SPIDER ASSEMBLY - brake mounting, Inlcudes: Ref. 1 - 5

2шт.

NSS

NOT SOLD SEPARAT

SPIDER ASSEMBLY - brake, Inlcudes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SPIDER - brake

1шт.

2

L35560

BUSHING

- cam

1шт.

3

L35559

RETAINER

- seal

1шт.

4

L31689

FELT

SEAL - felt

1шт.

5

L31690

RETAINER

- seal

1шт.

L35563

SHOE (ASSY)

SHOE AND LINING ASSEMBLY - brake, Inlcudes: Ref. 6 - 11A

4шт.

6

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

7

L35588

AXLE PIN

PIN - return spring, brake shoe

1шт.

8

L35589

RETAINER

- roller

1шт.

9

L35590

ROLLER

- shoe (Cam follower)

1шт.

10

NSS

NOT SOLD SEPARAT

LINING - shoe, anchor end

1шт.

For complete relining of brakes for two wheels, order D66415 kit which includes linings and rivets.

1шт.

11

NSS

NOT SOLD SEPARAT

LINING - shoe, cam end

1шт.

For complete relining of brakes for two wheels, order D66415 kit which includes linings and rivets.

1шт.

11a

L35591

RIVET

- brake lining

70шт.

For complete relining of brakes for two wheels, order D66415 kit which includes linings and rivets.

1шт.

12

L35564

VALVE SPRING

SPRING - return, brake shoe

2шт.

13

L35566

FELT

SELT - anchor pin

8шт.

14

L35567

CAP

RETAINER - felt

8шт.

15

L35565

AXLE PIN

PIN - anchor, brake shoe

4шт.

16

L35570

PIN

RETAINER - hair pin type

8шт.

17

A31249

CYLINDER END CAP

SCREW - lock, anchor pin (Drilled head)

4шт.

18

391-620

LOCK,#16 Ga x 12"

WIRE - lock, screw

2шт.

19

L35568

CAM AND SHAFT - L.H. brake adjustment (Not shown)

1шт.

20

L35569

SHAFT

CAM AND SHAFT - R.H. brake adjustment

1шт.

21

L35706

WASHER

- flat, cam head

2шт.

22

R1338

RING - lock, cam groove

2шт.

27

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

28

92-8

LOCK WASHER,1/2"

8шт.

L35557

BRACKET ASSEMBLY - mounting, L.H. brake chamber (Not shown)

1шт.

L35558

BRACKET ASSEMBLY - mounting, R.H. brake chamber

1шт.

29

NSS

NOT SOLD SEPARAT

BRACKET - mounting, brake chamber (R.H. or L.H.)

1шт.

30

L35559

RETAINER

- seal (If used)

1шт.

31

L31689

FELT

SEAL - felt (If used)

1шт.

32

L31690

RETAINER

- seal (If used)

1шт.

32a

D71280

SEAL ASSY.

SEAL - replaces items 30, 31 and 32

1шт.

33

L35560

BUSHING

- cam and shaft

1шт.

34

L35577

PLATE ASSY.

LUG - mounting, chamber bracket (Welded to axle housing)

2шт.

35

26-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8

HHCS - 9/16" - 12 NC x 1-3/4" (Grade 8)

2шт.

36

L35578

WASHER

- special

2шт.

37

25-109

NUT,9/16"-12, G5

- hex. (9/16" - 12 NC)

2шт.

37

L35705

AXLE PIN

PIN - anchor (Not shown)

4шт.

L35572

ADJUSTER

- slack, brake shoe

2шт.

38

NSS

NOT SOLD SEPARAT

BODY - adjuster

1шт.

39

L35598

RIVET

- adjuster body

5шт.

40

L35600

COVER ASSY

COVER - adjuster gear

2шт.

41

41-10

PLUG

- Welch, body

1шт.

42

L35597

AXLE PIN

PIN - lock

1шт.

43

L35594

SHAFT

- drive, worm gear

1шт.

44

L35595

GEAR WHEEL

GEAR - drive, worm

1шт.

45

L35593

LOCK ASSY

LOCK - worm gear shaft

1шт.

46

L35592

VALVE SPRING

SPRING - lock, worm

1шт.

47

L35601

GEAR WHEEL

GEAR - worm, splined (Driven)

1шт.

48

L35602

BUSHING

- adjuster body

2шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

50

219-39

FITTING

- grease, 45 degrees (1/8" NPT)

2шт.
