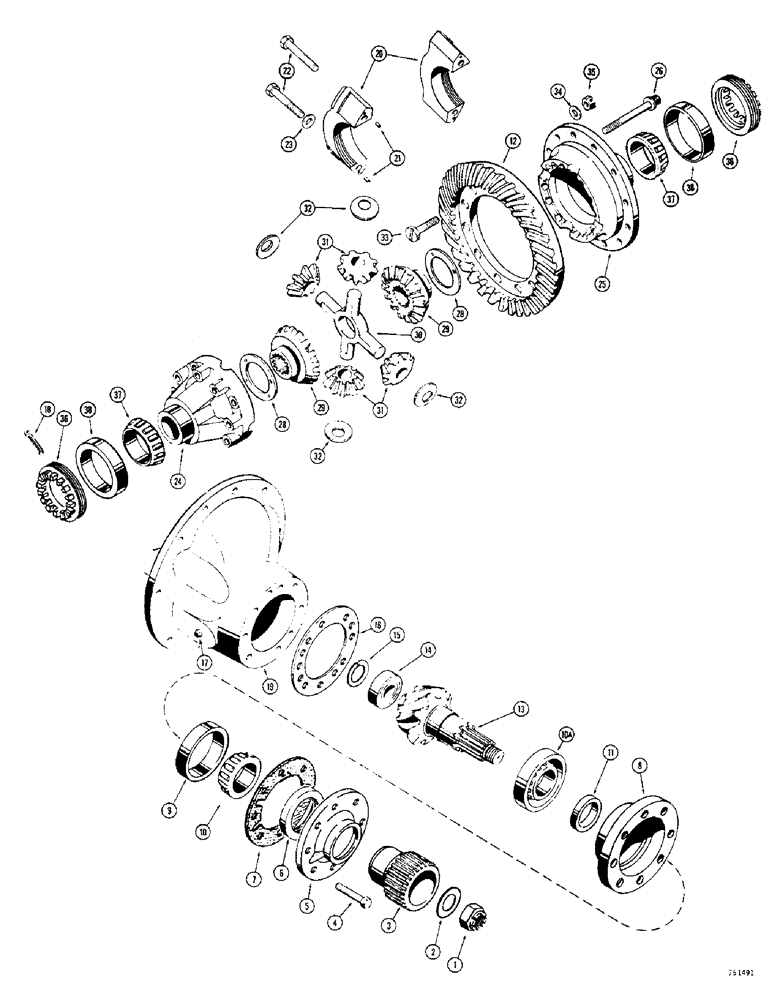

Запчасти Case 680CK (091G) - D66310 DIFFERENTIAL, * F81-3200-A-1093 (27) - REAR AXLE SYSTEM

D66310

DIFFERENTIAL

ASSEMBLY - axle, Inlcudes: Ref. 1 - 11

1шт.

1

L35091

NUT

NUT - hex. slotted, sleeve to pinion shaft

1шт.

2

A13124

WASHER

- sleeve retaining

1шт.

3

L35585

SLEEVE

- splined

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

L35927

COVER

AND SEAL ASSEMBLY - pinion shaft bearing, Inlcudes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pinion shaft, Inlcudes: Ref. 6

1шт.

6

L35584

OIL SEAL

- oil, pinion shaft

1шт.

7

L33674

GASKET

- pinion, Serial Range: cover-cage

1шт.

L35928

CAGE ASSEMBLY - pinion shaft bearing, Inlcudes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

9

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type (Outer)

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type (Outer)

1шт.

10a

L30395

BEARING

- cup and cone, inner

1шт.

11

A18358

SPACER

- bearing, .172" thick

1шт.

11

A18359

SPACER

- bearing, .173" thick

1шт.

11

A18360

SPACER

- bearing, .174" thick

1шт.

11

A18361

SPACER

- bearing, .175" thick

1шт.

11

A18362

RING

SPACER - bearing, .176" thick

1шт.

11

A18363

SPACER

- bearing, .177" thick

1шт.

11

A18364

SPACER

- bearing, .188" thick

1шт.

11

A18365

SPACER

- bearing, .189" thick

1шт.

11

A18366

SPACER

- bearing, .195" thick

1шт.

11

A18367

SPACER

- bearing, .201" thick

1шт.

REF

INSTRUCTION

GEAR SET - ring and pinion, for service order A18200 kit, Inlcudes: Ref. 12 and 13

1шт.

Check Rockwell part no. stamped on differential housing before ordering component parts.

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion (Ball type)

1шт.

15

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

16

D66307

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

16

D66308

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

16

D66309

SHIM,.010" Thk

Bearing cage .010" Thk

1шт.

L35924

CARRIER

AND CAP ASSEMBLY - differential, Inlcudes: Ref. 17 - 32

1шт.

17

221-835

PLUG

- pipe, square head (3/4" NPT)

1шт.

18

A18196

HARDWARE

PIN - lock, cotter

2шт.

L35925

CARRIER

AND CAP ASSEMBLY - differential, Inlcudes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

21

A15443

DOWEL

- cap

4шт.

22

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

HHCS - 5/8" - 11 NC x 3-1/4" (Grade 8)

4шт.

23

L30737

WASHER

- special

4шт.

D66306

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - differential, Inlcudes: Ref. 24 - 32

1шт.

D66305

CASE

ASSEMBLY - differential

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

26

L34062

BOLT

- special

8шт.

28

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

29

D66304

GEAR

- differential, side

2шт.

30

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

31

A18175

PINION

GEAR - differential, pinion

4шт.

32

A18176

DISC

WASHER - thrust

4шт.

33

L35919

BOLT

- special, ring, Serial Range: gear-differential

12шт.

34

D47366

WASHER

- special

12шт.

35

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., lock

12шт.

36

A18194

RING

- bearing adjusting, R.H. & L.H.

2шт.

37

A18173

ROLLER BEARING

CONE - bearing, differential (L.H.)

1шт.

38

L35931

BEARING CUP

CUP - bearing, differential (L.H.)

1шт.
