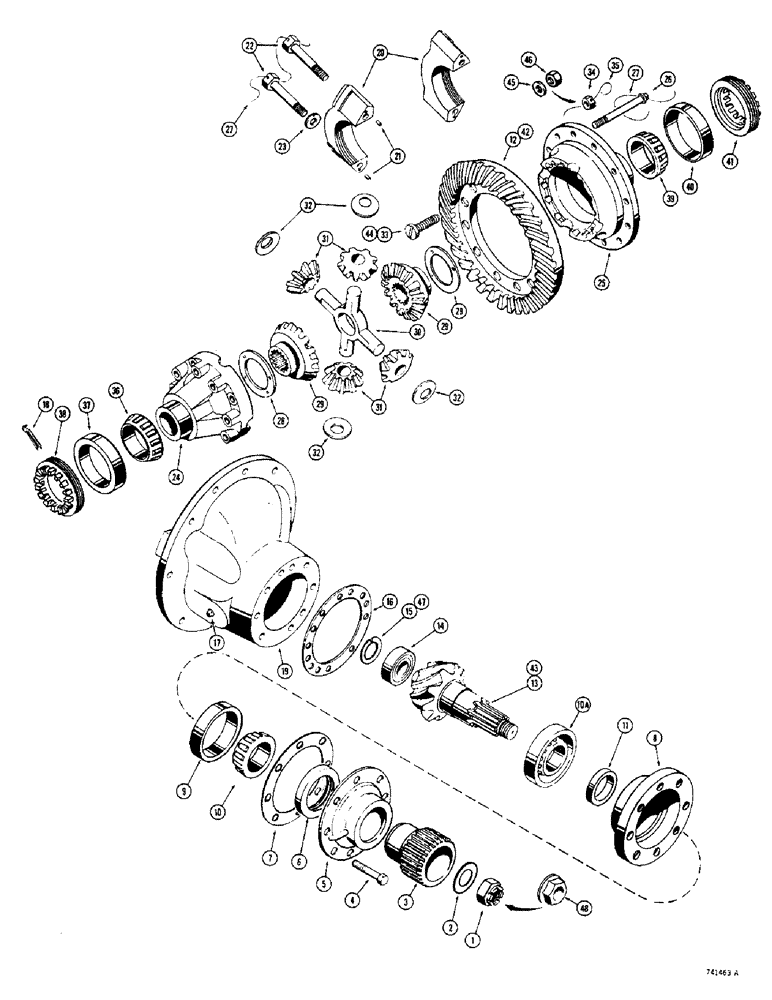

Запчасти Case 680CK (090) - L54078 REAR AXLE, DIFFERENTIAL, CARRIER AND GEARS (27) - REAR AXLE SYSTEM

L54078

AXLE ASSEMBLY - complete, rear (PR65 - PX - 1/17.44-1), Inlcudes: Ref. 1 - 23

1шт.

Used as original equipment on units before tractor SN. 9111262 and also on 9111275, 9111281, 9111287, 9111290 thru 9111292, 9111294, 9111328, 9111370, 9111373, 9111374 and 9111400. Check axle SN. plate to be sure of Rockwell part no. before ordering component parts.

1шт.

L35556

DIFFERENTIAL ASSEMBLY - axle (For service of complete differential, order D66310 parts list pages 91G-91J), Inlcudes: Ref. 1 - 23

1шт.

1

L30731

SLOTTED NUT

- hex. slotted, sleeve to pinion shaft

1шт.

2

A13124

WASHER

- sleeve retaining

1шт.

3

L35585

SLEEVE

- splined

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

L35583

COVER ASSY

COVER ASND SEAL ASSEMBLY - pinion shaft bearing, Inlcudes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

6

L35584

OIL SEAL

- oil, pinion shaft

1шт.

7

A18190

GASKET

- pinion, Serial Range: cover-cage

1шт.

L30333

CAGE

ASSEMBLY - pinion shaft bearing, Inlcudes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing

1шт.

9

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type (Outer)

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type (Outer)

1шт.

10a

L30395

BEARING

- cup and cone, inner

1шт.

11

A18358

SPACER

- bearing, .172" thick

1шт.

11

A18359

SPACER

- bearing, .173" thick

1шт.

11

A18360

SPACER

- bearing, .174" thick

1шт.

11

A18361

SPACER

- bearing, .175" thick

1шт.

11

A18362

RING

SPACER - bearing, .176" thick

1шт.

11

A18363

SPACER

- bearing, .177" thick

1шт.

11

A18364

SPACER

- bearing, .188" thick

1шт.

11

A18365

SPACER

- bearing, .189" thick

1шт.

11

A18366

SPACER

- bearing, .195" thick

1шт.

11

A18367

SPACER

- bearing, .201" thick

1шт.

A18191

GEAR

SET - ring and pinion (For service order A18200 kit, See Figure 91A), Inlcudes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion (Ball type)

1шт.

15

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

16

A18197

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

16

A18198

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

NSS

NOT SOLD SEPARAT

CARRIER AND CAP ASSEMBLY - differential, Inlcudes: Ref. 17

1шт.

17

221-835

PLUG

- pipe, square head (3/4" NPT)

1шт.

18

A18196

HARDWARE

PIN - lock, cotter

2шт.

A18168

CARRIER AND CAP ASSEMBLY - differential, Inlcudes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

21

NSS

NOT SOLD SEPARAT

DOWEL - cap

4шт.

22

A18171

CAP

BOLT - special

4шт.

23

L30737

WASHER

- special

4шт.

L35217

CASE

ASND GEAR ASSEMBLY - differential, Inlcudes: Ref. 24 - 29

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, Inlcudes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

26

L30668

SCREW

BOLT - special

8шт.

27

391-627

ELECTRICAL WIRE

LOCK WIRE - bolt, no. 16 x 22" long

1шт.

28

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear

2шт.

29

A18179

GEAR

- differential, side

2шт.

30

A18181

U-JOINT SPIDER

SPIDER - differential

1шт.

31

A18175

PINION

GEAR - differential, pinion

4шт.

32

A18176

DISC

WASHER - thrust

4шт.

33

D47597

BOLT

- special, ring, Serial Range: gear-differential

12шт.

34

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF)

12шт.

35

391-618

ELECTRICAL WIRE

LOCK WIRE - bolt, no. 16 x 10" long

1шт.

36

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, differential (R.H.)

1шт.

37

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, differential (R.H.)

1шт.

38

A18194

RING

- bearing, adjusting, R.H.

1шт.

39

A18173

ROLLER BEARING

CONE - bearing, differential (L.H.)

1шт.

40

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, differential (L.H.)

1шт.

41

A18195

RING

- bearing, adjusting, L.H.

1шт.

A18200

GEAR

KIT - ring and pinion gears

1шт.

NSS

NOT SOLD SEPARAT

GEAR SET - ring and pinion (Use A18200 kit)

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

44

L35919

BOLT

- special, ring, Serial Range: gear-differential

12шт.

45

D47366

WASHER

- special hardened

12шт.

46

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., lock

12шт.

47

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

48

L35091

NUT

NUT - hex., special (Sleeve to pinion shaft)

1шт.
