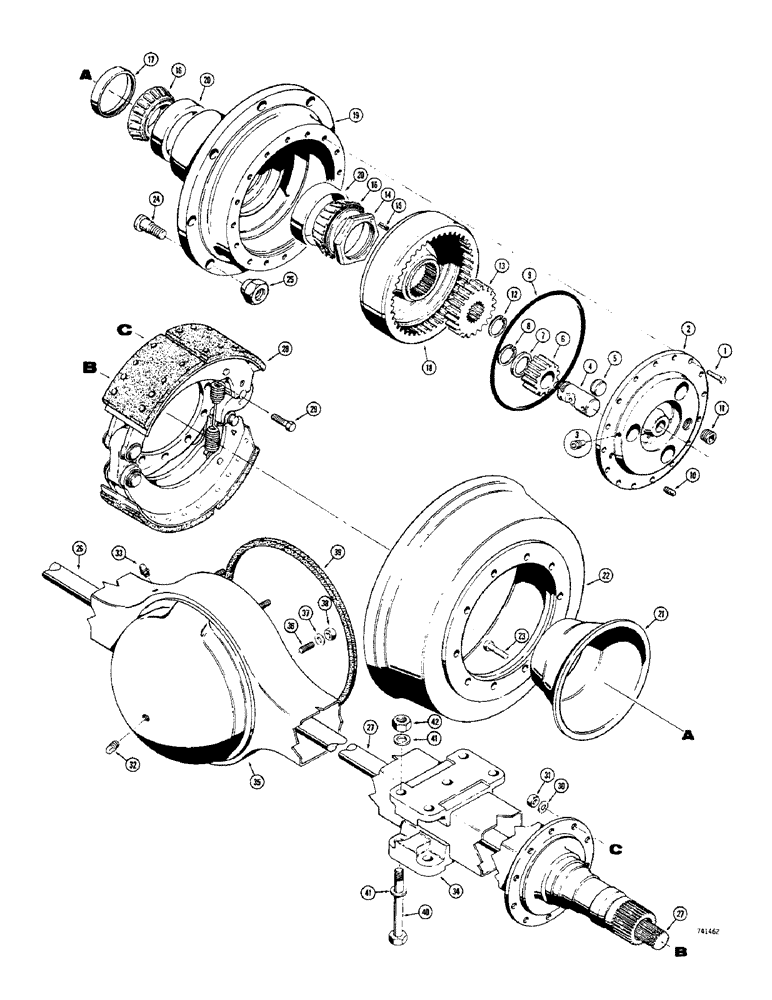

Запчасти Case 680CK (089A) - L57776 REAR AXLE, AXLE HOUSING AND PLANETARY (27) - REAR AXLE SYSTEM

L57776

AXLE ASSEMBLY - complete, rear (PR65 - PX - 4/17.44-1), Inlcudes: Ref. 1 - 39

1шт.

Used as original equipment on units before tractor SN. 9111262 and also on 9111275, 9111281, 9111287, 9111290 thru 9111292, 9111294, 9111328, 9111370, 9111373, 9111374 and 9111400. Check axle SN. plate to be sure of Rockwell part no. before ordering component parts.

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

CAP SCREW - special

32шт.

L35235

PINION

SPIDER AND COVER ASSEMBLY - planetary, Inlcudes: Ref. 2 - 8

2шт.

L35236

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary, Inlcudes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set (3/8" x 5/8")

3шт.

4

A18246

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION - gear

3шт.

7

A18236

WASHER

- thrust

3шт.

8

A18242

RING

- snap

3шт.

9

REF

INSTRUCTION

SEAL - "o" ring, planetary cover (Use M20704 salastic gasket material)

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head (3/8" NPT)

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill, square socket (3/4" NPT)

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

L35232

GEAR

- sun

2шт.

L35228

BEARING LOCK NUT

NUT ASSEMBLY - lock, bearing, Inlcudes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

(Replaces 138-132) 1/4" x 7/8", Coiled

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing, roller

4шт.

17

L35220

SLEEVE

- oil seal

2шт.

17a

L35226

OIL SEAL

- sleeve (Not shown)

2шт.

18

L35230

GEAR

- ring, pinion

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Inlcudes: Ref. 19 - 24

2шт.

L35223

HUB CAP

HUB AND CUP ASSEMBLY - axle, Inlcudes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, roller

2шт.

21

L35224

SLINGER

- oil

1шт.

22

L35580

DRUM HUB

DRUM - brake

1шт.

23

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - 5/8" - 11 NC x 1-1/2" (Grade 8)

10шт.

24

A13112

STUD

STUD - wheel

8шт.

25

A12522

WHEEL NUT

-, Serial Range: wheel-hub

16шт.

26

L35231

SHAFT

- axle, L.H. (37.19" Long)

1шт.

27

L35582

SHAFT

- axle, R.H. (33.82" Long)

1шт.

28

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, Parts list Figures 95A and 95C

2шт.

29

28-930

BOLT,Hex, 9/16" - 18 x 1-7/8", Gr 8

HHCS - 9/16" - 12 NC x 1-7/8"

20шт.

30

L35233

WASHER

- special

20шт.

31

131-1235

NUT,9/16"-18, GC

NUT - lock, hex.

20шт.

32

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill and drain

2шт.

33

A12928

BREATHER

- axle housing

1шт.

34

L35587

PAD

- axle mounting

4шт.

L35586

HOUSING

ASSEMBLY - axle, Inlcudes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

36

A18207

STUD

- carrier mounting

10шт.

37

D47367

WASHER

- special

10шт.

38

129-530

NUT,7/16"-20, G8

- hex. (7/16" - 14 NC)

10шт.

39

REF

INSTRUCTION

GASKET - differential to housing (Use M20704 salastic gasket material)

1шт.

40

116-701

BOLT

HHCS - 3/4" - 16 NF x 8" (Grade 8)

8шт.

41

L54550

WASHER

- special (Hardened)

16шт.

42

131-186

LOCK NUT,3/4"-16, GB

NUT - hex., lock (3/4" - 16 NF)

8шт.
