Артикул
Название
Примечание
Количество
L54078

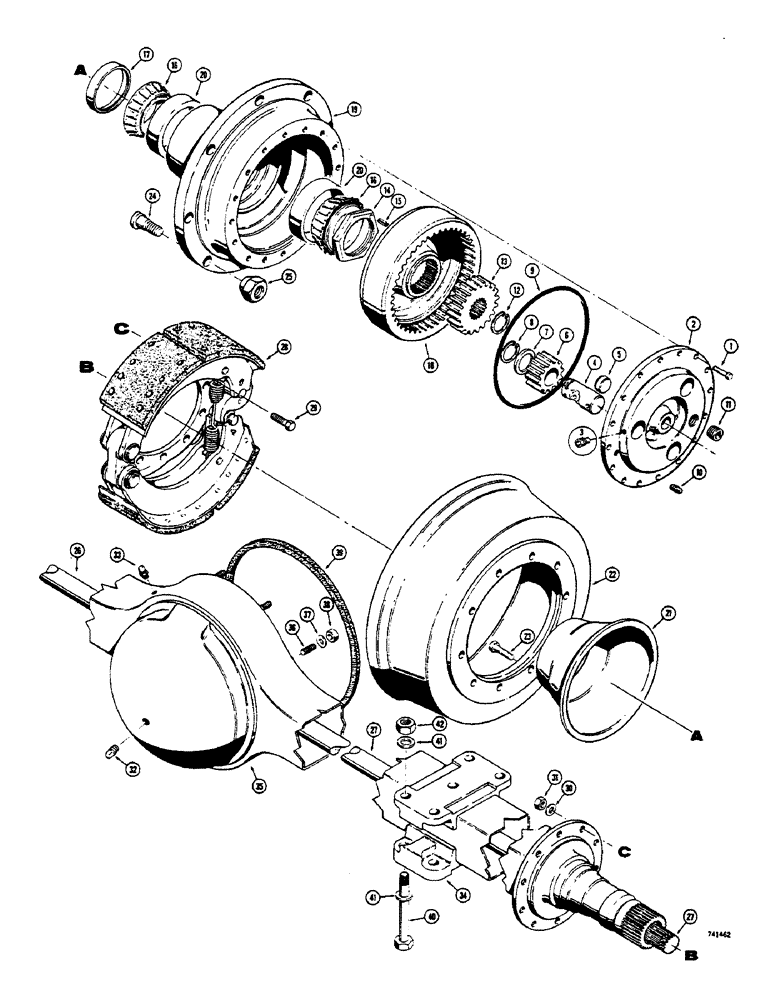

AXLE ASSEMBLY - complete, rear (PR65 - PX - 1/17.44-1), Inlcudes: Ref. 1 - 39
1шт.
Used as original equipment on units before tractor SN. 9111262 and also on 9111275, 9111281, 9111287, 9111290 thru 9111292, 9111294, 9111328, 9111370, 9111373, 9111374 and 9111400. Check axle SN. plate to be sure of Rockwell part no. before ordering component parts.
1шт.
1
A18221
BOLT,M10 x 1.25 x 50mm, Cl 8.8
CAP SCREW - special
32шт.
L35235
PINION
SPIDER AND COVER ASSEMBLY - planetary, Inlcudes: Ref. 2 - 8
2шт.
L35236
U-JOINT SPIDER
SPIDER ASSEMBLY - planetary, Inlcudes: Ref. 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
SPIDER - planetary
1шт.
3
178-256
SET SCREW,Hex Soc, 3/8"-16 x 5/8"
SCREW - set (3/8" x 5/8")
3шт.
4
A18246
SHAFT
- pinion
3шт.
5
A18247
PIN
BUTTON - thrust
1шт.
6
L35237
GEAR
PINION - gear
3шт.
7
A18236
WASHER
- thrust
3шт.
8
A18242
RING
- snap
3шт.
9
REF
INSTRUCTION
SEAL - "o" ring, planetary cover (Use M20704 salastic gasket material)
2шт.
10
221-3
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG - drain, square head (3/8" NPT)
2шт.
11
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- fill, square socket (3/4" NPT)
2шт.
12
A18241
RING
- snap, sun gear retaining
2шт.
13
L35232
GEAR
- sun
2шт.
L35228
BEARING LOCK NUT
NUT ASSEMBLY - lock, bearing, Inlcudes: Ref. 14 and 15
2шт.
14
NSS
NOT SOLD SEPARAT
NUT - lock
1шт.
15
138-2018
PIN,1/4" x 7/8", Coiled
(Replaces 138-132) 1/4" x 7/8", Coiled
1шт.
16
L35221
ROLLER BEARING,85mm ID x 30mm W
CONE - bearing, roller
4шт.
17
L35220
SLEEVE
- oil seal
2шт.
17a
L35226
OIL SEAL
- sleeve (Not shown)
2шт.
18
L35230
GEAR
- ring, pinion
2шт.
NSS
NOT SOLD SEPARAT
HUB AND CUP ASSEMBLY - axle, Inlcudes: Ref. 19 and 20
2шт.
L35223
HUB CAP
HUB AND CUP ASSEMBLY - axle, Inlcudes: Ref. 19 and 20
1шт.
19
NSS
NOT SOLD SEPARAT
HUB - wheel
1шт.
20
A63171
BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm
CUP - bearing, roller
2шт.
21
L35224
SLINGER
- oil
1шт.
22
L35580
DRUM HUB
DRUM - brake
1шт.
23
26-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8
HHCS - 5/8" - 11 NC x 1-1/2" (Grade 8)
10шт.
24
A13112
STUD
STUD - wheel
8шт.
25
A12522
WHEEL NUT
-, Serial Range: wheel-hub
16шт.
26
L35231
SHAFT
- axle, L.H. (37.19" Long)
1шт.
27
L35582
SHAFT
- axle, R.H. (33.82" Long)
1шт.
28
REF
INSTRUCTION
BRAKE ASSEMBLY - axle, Parts list Figure 92
2шт.
29
28-930
BOLT,Hex, 9/16" - 18 x 1-7/8", Gr 8
HHCS - 9/16" - 12 NC x 1-7/8" (Grade 8)
20шт.
30
L35233
WASHER
- special
20шт.
31
A15033
LOCK NUT
- lock, special
20шт.
32
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- fill and drain
2шт.
33
A12928
BREATHER
- axle housing
1шт.
34
L35587
PAD
- axle mounting
4шт.
L35586
HOUSING
ASSEMBLY - axle, Inlcudes: Ref. 35 and 36
1шт.
35
NSS
NOT SOLD SEPARAT
HOUSING - axle
1шт.
36
A18207
STUD
- carrier mounting
10шт.
37
D47367
WASHER
- special
10шт.
38
129-530
NUT,7/16"-20, G8
- hex. (7/16" - 14 NC)
10шт.
39
REF
INSTRUCTION
GASKET - differential to housing (Use M20704 salastic gasket material)
1шт.
40
116-701
BOLT
HHCS - 3/4" - 16 NF x 8" (Grade 8)
8шт.
41
L54550
WASHER
- special (Hardened)
16шт.
42
131-186
LOCK NUT,3/4"-16, GB
NUT - hex., lock (3/4" - 16 NF)
8шт.
Выбрано товаров: 51
