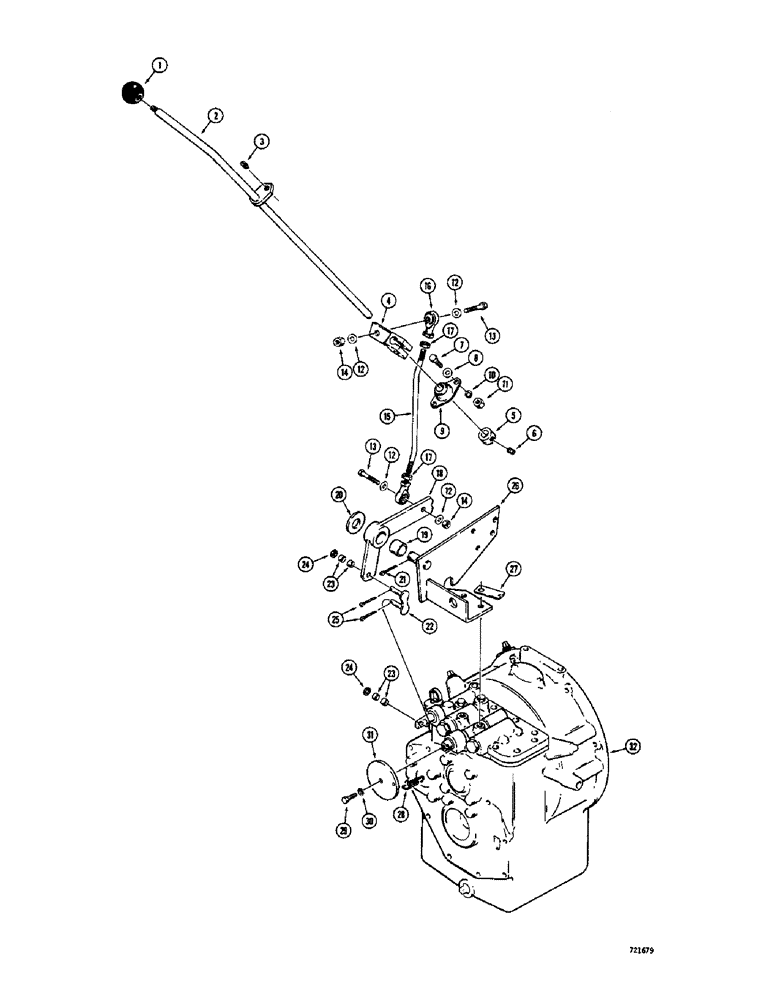

Запчасти Case 680CK (086) - TRANSMISSION CONTROLS, FORWARD-REVERSE SHIFTING PARTS (21) - TRANSMISSION

1

A23885

KNOB

BALL - shift lever

1шт.

2

L53754

LEVER - shift, forward and reverse

1шт.

3

L54000

PLUNGER

- shift detent

1шт.

4

L53746

LEVER - transmission control

1шт.

5

L12480

COLLAR - retaining

1шт.

6

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

8

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

9

L15401

BEARING,15.89mm ID

- shift lever

1шт.

10

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

4шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

14

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

15

L53994

ROD - shift link, forward and reverse

1шт.

16

A35134

BEARING

EYE - rod end, self-aligning

2шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

18

L54053

ARM ASSY.

BELLCRANK ASSEMBLY - shift lever (When stock is exhausted, order L57493 lever for service)

1шт.

18

L57493

ARM ASSY.

BELLCRANK ASSEMBLY - shift lever, Inlcudes: Ref. 19

1шт.

19

L10818

BUSHING

- bellcrank

1шт.

20

195-41

WASHER,5/8"

1шт.

21

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

22

L52639

DRAG LINK

CONNECTOR - link, forward and reverse

1шт.

23

L11102

SPACER

- forward and reverse shift

4шт.

24

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

25

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

26

L53749

BRACKET - mounting, bellcrank

1шт.

27

L54034

BRACKET - retaining, clutch cutout spring

1шт.

28

L48104

SPRING

- clutch cutout

1шт.

29

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

30

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

1шт.

31

L54033

DISC

- clutch cutout

1шт.
