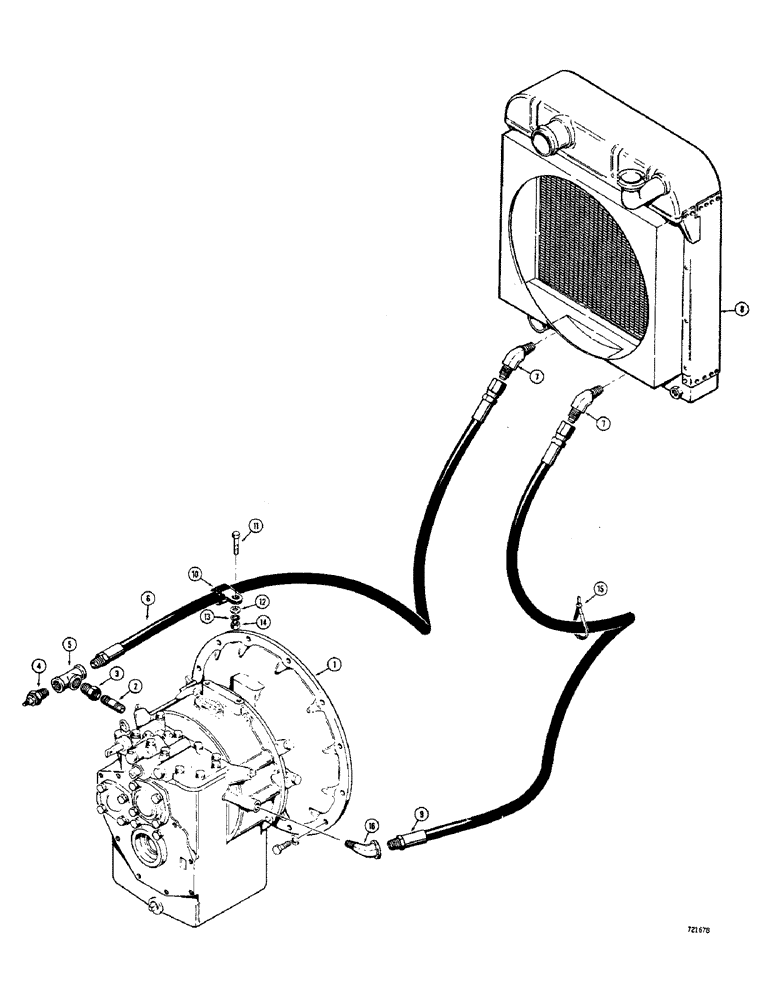

Запчасти Case 680CK (076) - FORWARD AND REVERSE TRANSMISSION, COOLING SYSTEM (21) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION - forward and reverse, See Figures 68 thru 74 for parts lists

1шт.

2

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe (3/8" NPT x 2")

1шт.

3

221-1056

BUSHING

REDUCING BUSHING - hex., pipe (1/2" x 3/8" NPT)

1шт.

4

A13795

SENDER UNIT

SENDING UNIT - torque converter temperature gauge

1шт.

5

221-1424

TEE,Pipe, 1/2" NPT

- pipe (1/2" NPT)

1шт.

6

L48749

HOSE

- forward and reverse transmission to radiator (56" long)

1шт.

7

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- radiator to hose

2шт.

8

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine and forward and reverse transmission cooling, See Figure 136 for related parts

1шт.

9

L48750

HOSE

- radiator to forward transmission (62" long)

1шт.

10

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose to frame

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

95-6

WASHER,3/8"

- plain () 3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

TIE - hose

1шт.

16

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.
