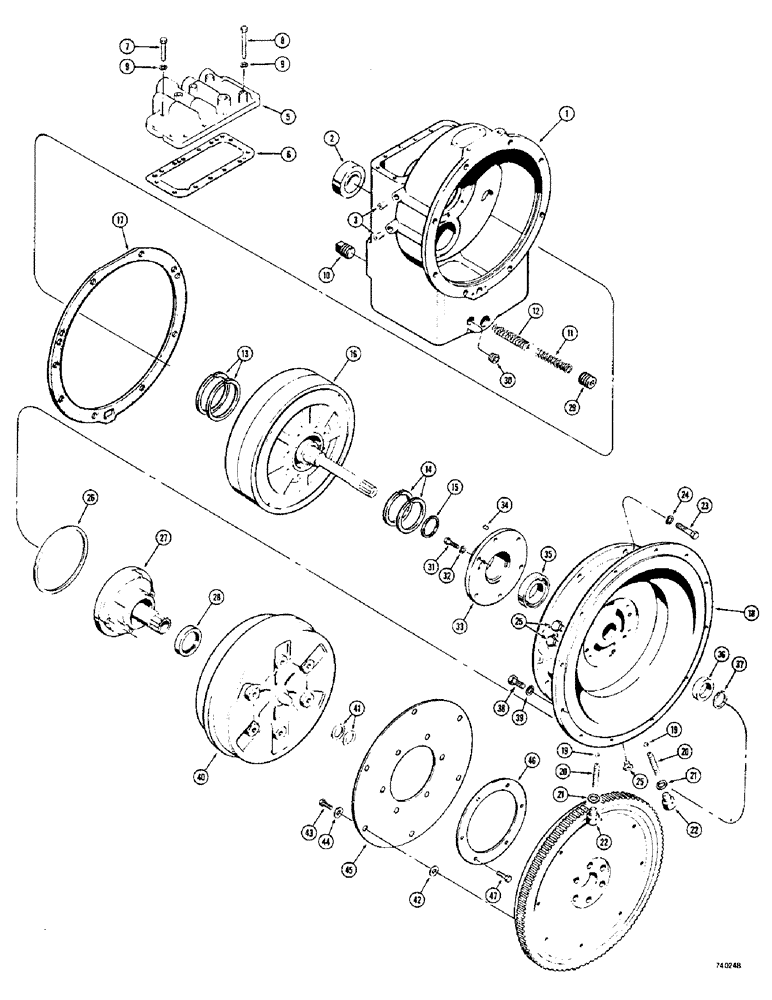

Запчасти Case 680CK (068) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP (21) - TRANSMISSION

L35677

TRANSMISSION

ASSY. - forward and reverse, Inlcudes: Ref. 1 - 37

1шт.

D66379

CASE

HOUSING ASSEMBLY - transmission, Inlcudes: Ref. 1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-841

PLUG

- pipe, hex. socket head (1/4" NPT)

2шт.

4

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT) not shown

2шт.

4a

L30225

TUBE,1.005" DIA x 1.312" L

- filler and dipstick, See ref. no. 2 Figure 74 for location

1шт.

5

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control, Parts list Figure 72

1шт.

6

L32119

GASKET

- valve body

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

8шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

12шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. head (Special)

1шт.

11

L32746

SPRING

- screen

1шт.

12

L32745

FILTER SCREEN

SCREEN - oil

1шт.

13

L30237

SEAL

RING - sealing (3-1/2" O.D.) (Replaces A14833)

2шт.

14

A14833

SEALING RING

RING - sealing (3" O.D.) (Replaces L30237)

2шт.

15

L30486

SEAL

RING - sealing (2" O.D.)

1шт.

16

L35684

CLUTCH

ASSEMBLY - forward and reverse, Parts list Figure 70

1шт.

17

A14886

GASKET

- transmission housing

1шт.

18

L35692

CASE - transmission, front

1шт.

19

211-12

BALL,7/16 Dia

- steel (7/16" dia.)

2шт.

20

L33705

SPRING

- pop valve

2шт.

21

A14810

WASHER

- special

2шт.

22

A14811

SEAT, VALVE

SEAT - spring, pop valve

2шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

24

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

25

221-1661

PLUG

- pipe, hex. head (1/8" NPT)

3шт.

26

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- pump

1шт.

27

L30488

PUMP

ASSEMBLY - torque converter charging, Inlcudes: Ref. 28

1шт.

27

137093A1R

REMAN-HYD PUMP

680CK, (S/N 9111009 & AFTER), REMAN for Part No. L30488, N.A. Only

1шт.

27

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

28

L30489

OIL SEAL

- pump

1шт.

29

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head (1" NPT)

1шт.

30

221-654

PLUG,Hex Hd, 1/2"-14

- hex., head (1/2" NPT)

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

32

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

6шт.

L30479

CAP

RETAINER ASSEMBLY - bearing, Inlcudes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

34

L30245

PLUG

- retainer

2шт.

35

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- clutch, Inlcudes: Ref. 36 and 37

1шт.

36

L30483

SPACER

- bearing

1шт.

37

L30484

RING, SNAP

RING - retaining, input shaft

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

39

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

12шт.

40

L46455

CONVERTER

- torque

1шт.

41

L11172

SHIM,.0478" Thk

Pump engagement .0478" Thk

1шт.

42

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, steel (3/8" I.D.)

1шт.

L11783

KIT

- torque converter drive, Inlcudes: Ref. 43 - 47

1шт.

43

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- place (5/16" - 18 NC x 3/4")

6шт.

44

A14512

WASHER

- torque converter drive plate

6шт.

45

A14509

PLATE

- torque converter drive

1шт.

46

A14510

PLATE

- reinforcement

1шт.

47

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- place (3/8" - 24 NF x 1/2")

6шт.
