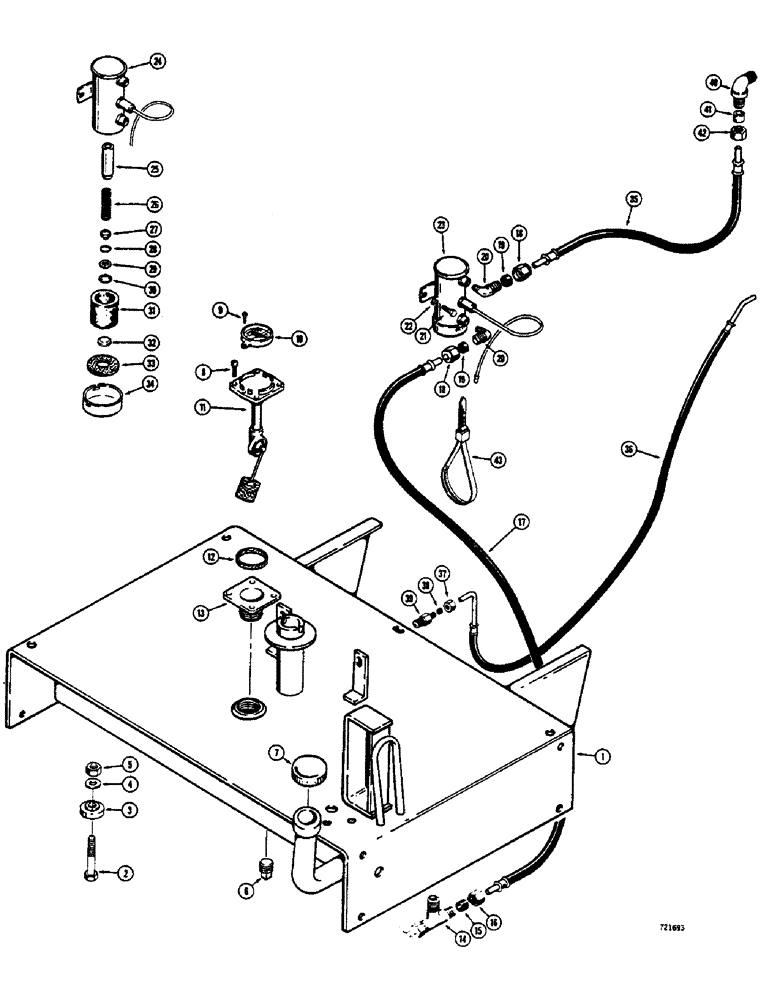

Запчасти Case 680CK (140) - FUEL TANK, PUMP AND LINES (10) - ENGINE

1

L53247

TANK ASSEMBLY - fuel

1шт.

2

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

4шт.

3

L50813

BUSHING

- fuel, Serial Range: tank-chassis

4шт.

4

195-2054

WASHER,17/32" x 2" x .238"

- plain (1/2")

4шт.

5

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

6

221-18

PLUG - pipe, square head (1-1/2" NPT) Sq Hd, 1 1/2"-11 1/2 NPTF

1шт.

7

A18870

FILLER CAP

CAP - fuel tank

1шт.

L41231

GAUGE ASSY.

GAUGE ASSEMBLY - fuel level, Includes: Ref. 8 - 11

1шт.

8

71-410

SCREW

- fillister head (1/4" - 20 NC x 5/8")

4шт.

9

187-1100

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self-tapping, fillister head (#6 - 32 NC x 1/4")

2шт.

10

T39600

DIAL

- fuel level gauge

1шт.

11

NSS

NOT SOLD SEPARAT

GAUGE - fuel level

1шт.

12

L11117

GASKET

- fuel gauge

1шт.

13

L11116

ADAPTER

- fuel gauge

1шт.

L26378

LOCK VALVE

VALVE ASSEMBLY - needle, fuel tank, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - needle, fuel tank

1шт.

15

222-104

SLEEVE,3/8" Tube

- flex tube fitting (3/8" tube O.D.)

1шт.

16

222-114

NUT,5/8"-24

NUT - flex tube fitting (3/8" tube O.D.)

1шт.

17

L43267

HOSE

- fuel tank to fuel pump (30" long)

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - hose, 90 degrees, Includes: Ref. 18 - 20

2шт.

18

222-114

NUT,5/8"-24

NUT - elbow

1шт.

19

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

L52638

PUMP

- fuel, electric, Includes: Ref. 24 - 34

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - fuel pump

1шт.

25

A40310

PLUNGER

- fuel pump

1шт.

26

A40207

SPRING

- plunger

1шт.

27

A40313

CUP

VALVE - cup

1шт.

28

A40318

O-RING,0.429" ID x 0.106"

SEAL - "O"ring

1шт.

29

A40317

WASHER

- "O"ring retaining

1шт.

30

A40316

RETAINER

- washer

1шт.

31

L33210

FILTER SCREEN

FILTER - fuel

1шт.

32

A40311

MAGNET

- plunger (Permanent type)

1шт.

33

A40315

GASKET

- cover

1шт.

34

A40312

COVER

- fuel pump

1шт.

35

L11121

HOSE

- fuel pump to injection pump (56" long)

1шт.

36

L26374

HOSE

- return, fuel injector leak-off to tank (54" long)

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, straight, Includes: Ref. 37 - 39

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting (1/4" tube O.D.)

1шт.

38

222-102

SLEEVE,1/4" Tube

1шт.

39

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube, straight

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degrees, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

41

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

42

222-114

NUT,5/8"-24

NUT - elbow

1шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - fuel line retaining

1шт.
