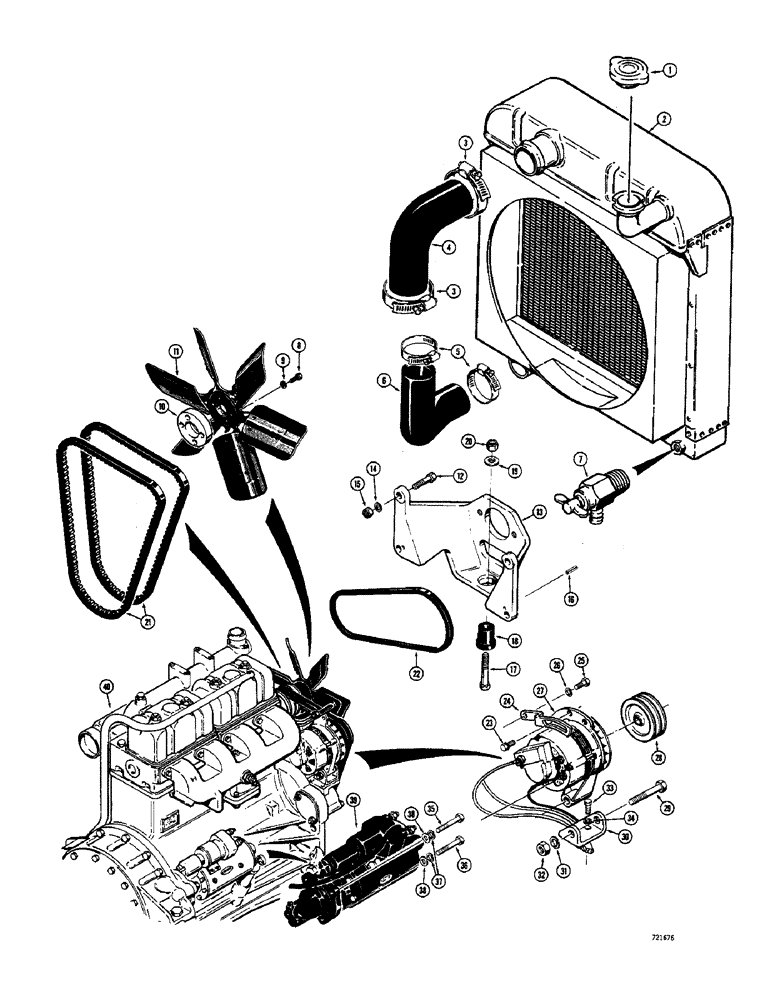

Запчасти Case 680CK (064) - ENGINE AND RELATED PARTS (10) - ENGINE

1

D25826

CAP

CAP - radiator, 7 P.S.I.

1шт.

2

L52053

RADIATOR

RADIATOR - engine and hydraulic oil cooling

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, upper

2шт.

4

L45794

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Upper

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, - radiator hose, lower #28, 1.31/2.25 Type F Worm

2шт.

6

L45810

RADIATOR HOSE,2.50" ID x 6.50", SAE 20R4 Class SC

Lower

1шт.

7

A23655

VALVE

VALVE - radiator drain

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 26 NC x 2-3/4" (Used with L13551 suction fan)

4шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, (Used with L52024 pusher fan) Hex, 3/8"-16 x 2", G5

4шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

4шт.

10

A61268

BUSHING

SPACER - fan (1 used with L52024 fan - 2 used with L13551 fan)

1-2шт.

11

L13551

FAN

FAN - suction

1шт.

11

L52024

FAN

FAN - pusher

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

BOLT, Hex, 3/4"-10 x 3", G5

4шт.

13

L46461

BRACKET

BRACKET - engine and equipment pump mounting

1шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

NUT, 3/4"-10, G5

4шт.

16

139-64

PIN,1/8" x 1 1/2", Tapered

PIN - taper, #5 x 1-1/2"

2шт.

17

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

BOLT, Hex, 3/4"-10 x 4", G5

1шт.

18

A19066

MOUNTING PARTS

MOUNT - engine, rubber

1шт.

19

195-48

WASHER,3/4" x 2 7/8" x .165"

WASHER - plain (3/4")

1шт.

20

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

21

L49006

SET OF BELTS,0.50" W x 57.00" L

Matched set, Fan and alternator drive

1шт.

22

L55580

BELT,0.375" W

Brake air compressor drive

1шт.

23

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

SCREW AND LOCKWASHER - 5/16" - 18 NC x 3/4"

1шт.

24

L41455

STRAP

STRAP - alternator adjusting (Replaces A62429)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

27

A41340

ALTERNATOR

ALTERNATOR - electrical, Parts list Figure 44

1шт.

28

A41057

PULLEY

PULLEY - alternator

1шт.

29

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 3 1/4", G5

1шт.

30

A38492

BRACKET

BRACKET - alternator mounting

1шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

1шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

37

92-8

LOCK WASHER,1/2"

LOCK WASHER, , med. sect. 1/2"

3шт.

38

R24323

WASHER

WASHER - special, starter mounting

3шт.

39

A64907

ELECTRIC MOTOR

STARTER - engine, electrical, Parts list Figures 38 thru 40

1шт.

39

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

39

104212A1C

CORE-STARTER

Return Part Number

1шт.
