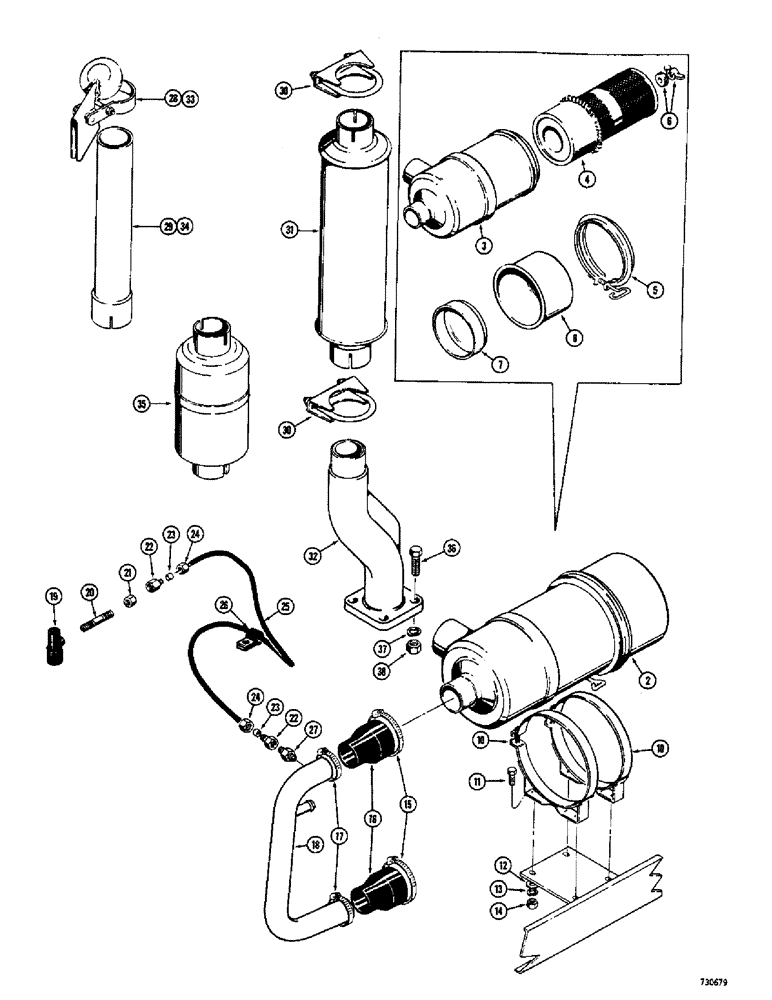

Запчасти Case 680CK (062) - AIR CLEANER AND MUFFLER (10) - ENGINE

2

D36261

CLEANER

AIR CLEANER - dry type, Inlcudes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

D37975

FILTER

ELEMENT - air cleaner

1шт.

5

R15731

CLAMP

- air cleaner

1шт.

6

F91761

WING NUT

AND WASHER - retainer

1шт.

7

D37979

BAFFLE

- air cleaner

1шт.

8

A40951

CUP

- air cleaner

1шт.

9

D37974

DECAL

- service instructions (Not illustrated)

1шт.

10

70973

BRACKET

CLAMP - air cleaner mounting

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

4шт.

13

92-5

LOCK WASHER,5/16"

med. sect. 5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - air cleaner and manifold to adapter

2шт.

16

L18992

TUBE NUT

ADAPTER - air cleaner and, Serial Range: manifold-tube

2шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- adapter to intake tube #36, 1.81/2.75 Type F Worm

2шт.

18

L53526

TUBE

- air, Serial Range: cleaner-manifold

1шт.

19

L40280

DIPSTICK

GAUGE - air cleaner restiction

1шт.

20

L13267

NIPPLE -, Serial Range: gauge-coupling

1шт.

21

L13268

LOCK NUT

- jam, nipple retaining

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - female, Inlcudes: Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

COUPLING - female

1шт.

23

222-650

SLEEVE,1/8" Tube, Comp

1шт.

24

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

25

D36961

TUBE

- gauge to air intake tube

1шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube to hood bracket

1шт.

27

D36264

FITTING

CONNECTOR - special, filter type

1шт.

28

A7479

CAP

- exhaust pipe

1шт.

29

L13824

EXTENSION

PIPE - exhaust, upper (Used on models without spark arrester muffler)

1шт.

30

A13240

CLAMP,2-5/8" ID

- muffler

2шт.

31

A15163

MUFFLER

- exhaust (Standard)

1шт.

32

L53192

EXHAUST SYSTEM PIPE

PIPE - exhaust, lower

1шт.

33

D28028

CAP

- exhaust pipe (Spark arrester muffler)

1шт.

34

L15259

PIPE

- exhaust, upper (Spark arrester muffler)

1шт.

35

L15256

MUFFLER - spark arrester

1шт.

36

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

37

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

38

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.
