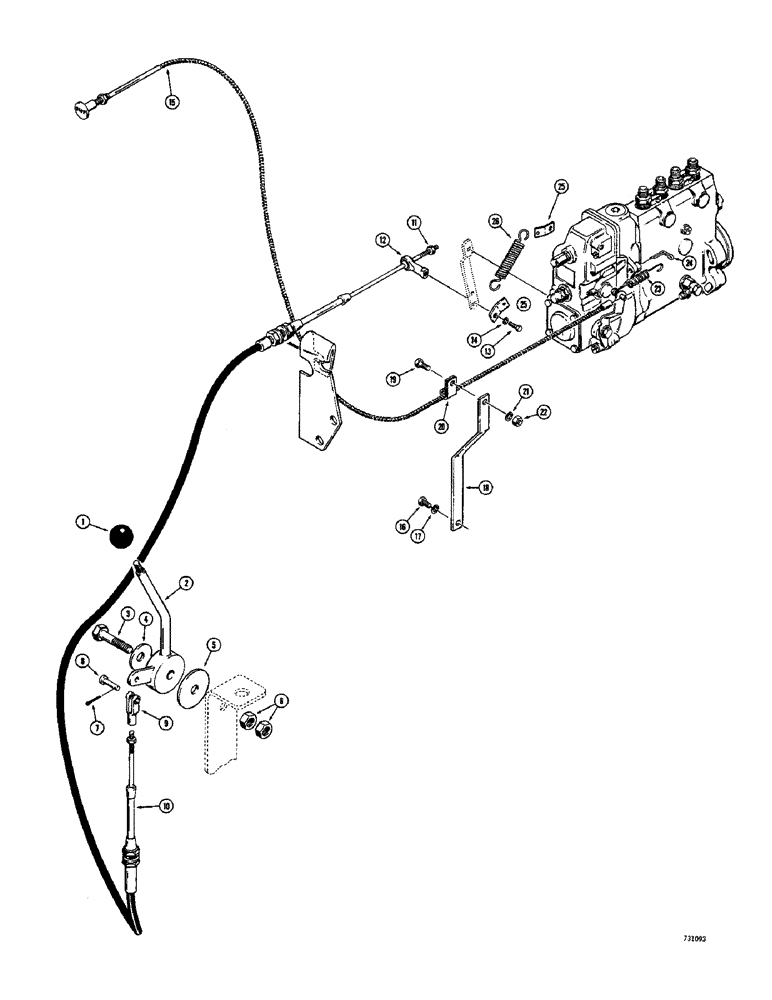

Запчасти Case 680CK (060) - ENGINE CONTROLS, FUEL SHUTOFF AND HAND THROTTLE (10) - ENGINE

1

CAS31375

KNOB

- hand throttle lever

1шт.

2

L41891

LEVER - hand throttle

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

1шт.

4

R14771

WASHER

- spring, special

1шт.

5

R15071

DISC

- friction

1шт.

6

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

8

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis (1/4")

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable (1/4")

1шт.

10

S219334

CABLE

ASSEMBLY - backhoe throttle

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

12

L53928

BALL JOINT

EYE - rod end, self - aligning

1шт.

13

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

HHCS - 1/4" - 28 NF x 3/4"

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

A38454

CONTROL LEVER

CABLE - control, fuel shutoff

1шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

1шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

18

L40891

SUPPORT

BRACKET - support, fuel shutoff

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

80049853

YOKE

-, Serial Range: cable-bracket

1шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

23

L45037

SPRING

- return, fuel shutoff

1шт.

24

L46009

PIN

- return spring

1шт.

25

L55741

PLATE - retaining, return spring

2шт.

26

L50735

VALVE SPRING

SPRING - return, accelerator pedal

1шт.
