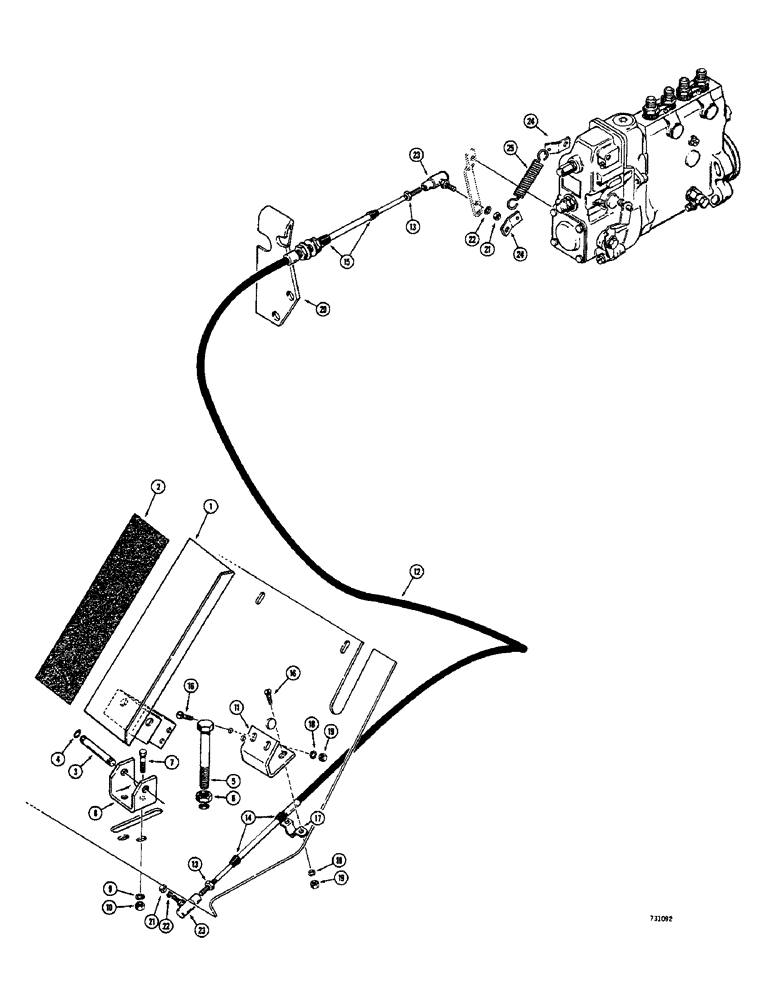

Запчасти Case 680CK (058) - ENGINE CONTROLS, ACCELERATOR PEDAL AND LINKAGE (10) - ENGINE

1

L48004

PEDAL

- accelerator, foot

1шт.

2

L48674

PAD

- accelerator pedal

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- pin retaining

2шт.

5

113-256

BOLT

HHCS - 3/8" - 16 NC x 5-1/2" (Accelerator stop)

1шт.

6

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

7

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

L48002

BRACKET

- accelerator pedal pivot

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

2шт.

11

L54067

BRACKET - cable mounting, accelerator (Rear)

1шт.

L53735

CABLE PULLING GRIP

CABLE ASSEMBLY - accelerator, Inlcudes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CABLE - accelerator

1шт.

13

129-660

NUT,#10-32, Brass

2шт.

14

L32849

SEAL ASSY.

SEAL - cable (7/16" long)

2шт.

15

L32690

SEAL

SEAL - cable (11/16" long)

2шт.

16

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head (#10 - 32 NF x 3/4")

4шт.

17

L12441

CLAMP

- accelerator cable

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

19

129-37

NUT,#10-32

4шт.

20

L53740

BRACKET - cable mounting, accelerator (Front)

1шт.

21

129-37

NUT,#10-32

2шт.

22

29-3

GAUGE

WASHER - med. sect. lock (3/16")

2шт.

23

L12437

BALL JOINT,#10 - 32 x 7/8"

- cable end

2шт.

24

L55741

PLATE - retaining, return spring

2шт.

25

L50735

VALVE SPRING

SPRING - return, accelerator pedal

1шт.
