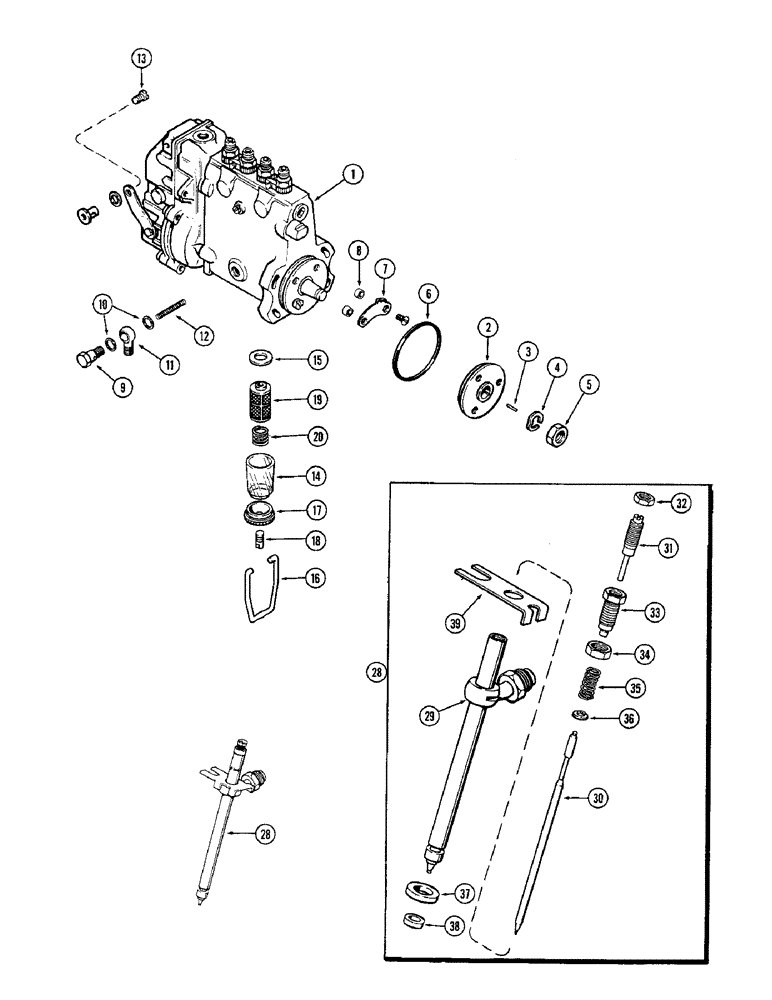

Запчасти Case 680CK (036) - A62453 INJECTION PUMP, (301B) DIESEL ENGINE, A62809 (10) - ENGINE

1

A62453

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection, Inlcudes: Ref. 2 - 20

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A20933

KEY

-, Serial Range: hub-shaft

1шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump (2-15/16 x 3-3/16 x 1/8")

1шт.

7

A41854

INDICATOR

POINTER - hub

1шт.

8

A41855

BUSHING

SPACER - pointer

2шт.

9

A25192

BANJO BOLT

BOLT - oil line

1шт.

10

A22381

WASHER

- oil line fitting (Copper)

2шт.

11

A25191

FITTING

- oil line (Banjo type)

1шт.

12

A25190

SPRING

- oil port

1шт.

13

A44259

SCREW

- lock, stop control cable

1шт.

14

A43347

BOWL

- filter (Glass)

1шт.

15

A43346

GASKET

- filter bowl

1шт.

16

A43350

CLAMP

BAIL - bowl hanger

1шт.

17

A43348

NUT

BAIL NUT - bowl seat

1шт.

18

A43349

STUD

- bail nut & bail

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element tension

1шт.

28

A62809

NOZZLE CAP

NOZZLE ASSY. - fuel injector (See note), Inlcudes: Ref. 29 - 39

4шт.

A138322R

REMAN-INJECT NOZZLE

680CK SERIES-C (S/N 9111009 & AFTER) REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

30

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

31

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

32

A43602

NUT

- lock, loift adjusting screw

1шт.

33

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

34

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

35

A43601

SPRING

- nozzle pressure (1/2" free length)

1шт.

36

A44369

SEAT

- spring

1шт.

37

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle mounting

1шт.

38

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

39

A41768

PLATE

- nozzle locating

1шт.
